Movit 370 x 35 mm 6-piston brake kit for VW Golf VII GTI/R/GTD

MOVIT high-performance brake system 370 x 35 mm – six-piston – front axle

Maximum braking performance for the most demanding requirements. Motorsport technology for road use. A powerful braking system is one of the decisive factors in motorsport, and this MOVIT high-performance steel brake system is designed around that principle. Uncompromising material selection and state-of-the-art manufacturing technology achieve the perfect balance between braking performance, weight and durability. Developed for extreme loads, this brake system meets the highest demands of high-performance vehicles.

Optimised brake disc technology

To significantly increase thermal stability and resistance to heat fade, the brake discs have been enlarged to 370 x 35 mm in diameter and thickness. In addition, sophisticated cross-drilling is used: each pre-cast hole is drilled and countersunk afterwards to optimise the flow of cooling air and minimise stresses in the material. The specially developed DDE ventilation system increases the effective cooling surface by up to 80% compared with conventional brake discs. The result is significantly reduced temperatures, lower wear and maximum resistance to brake fade, even under sustained heavy loads.

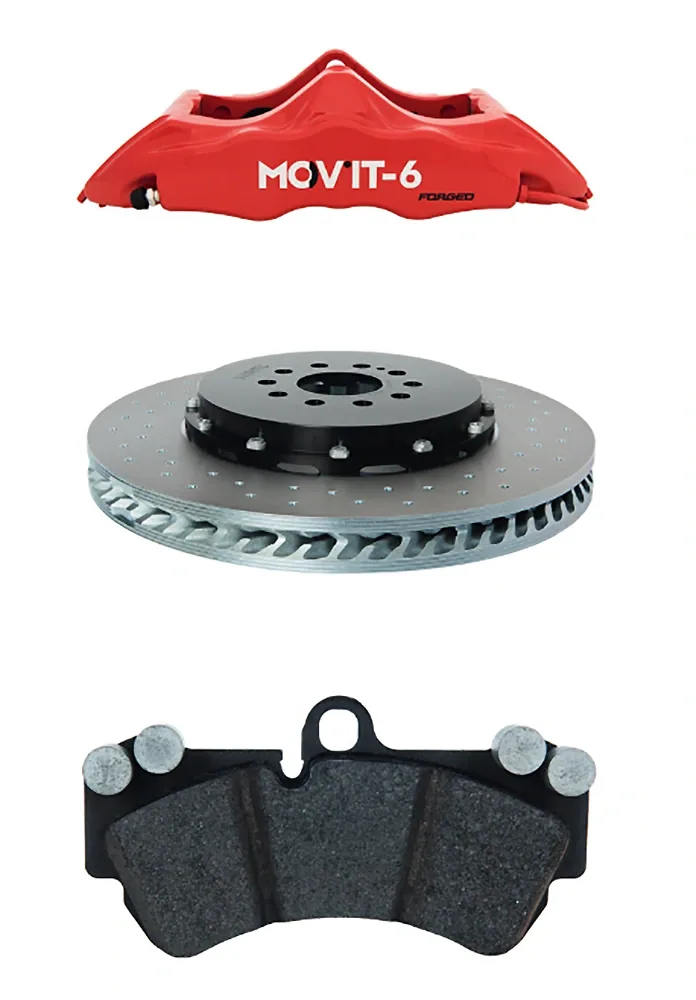

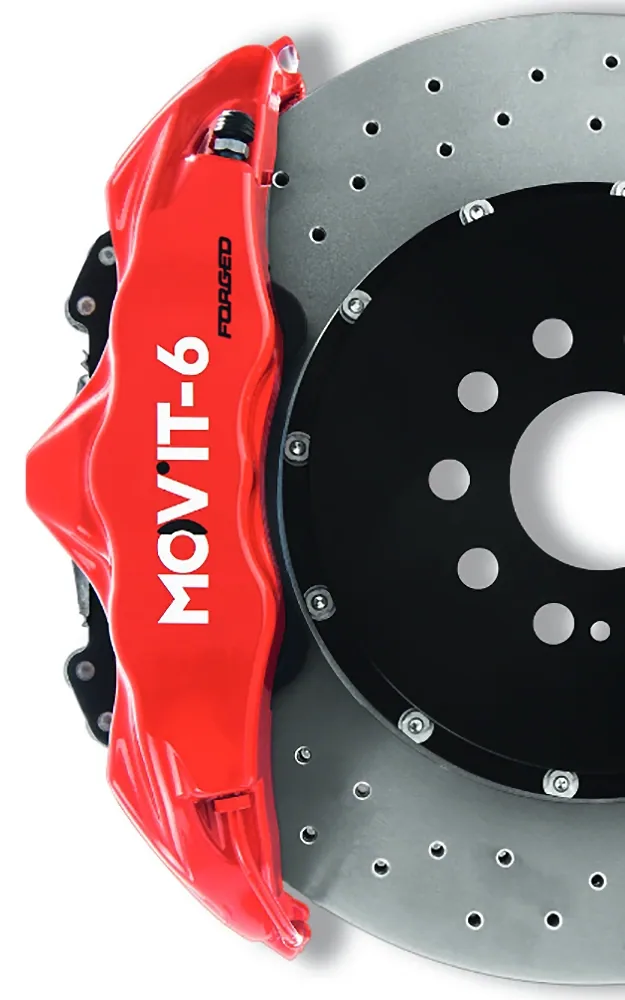

MOVIT six-piston aluminium brake callipers (6s5, forged)

The forged MOVIT six-piston brake callipers are made from high-strength 7075 aircraft-grade aluminium, providing maximum stability with low weight. The progressive piston arrangement ensures even pressure distribution and an extremely precise braking feel.

Brake calliper highlights:

• forged high-performance 7075 aluminium
• very high stiffness and maximum braking force
• progressive piston arrangement
• even heat transfer
• even pad wear
• open pad arrangement for optimum cooling
• quick and easy brake pad replacement

MOVIT steel brake discs – 370 x 35 mm, two-piece

• two-piece construction with aluminium bell
• dual, directional ventilation
• high-quality special alloy
• very high thermal conductivity
• maximum resistance to brake fade

Factory-fitted MOVIT Comfort brake pads (BE-6s1)

• increased friction surface
• even heat distribution
• reduced system temperatures
• long service life
• ideal for high-performance road vehicles

Optional accessories and upgrades

• PRO brake pads – approximately 25% higher braking force, ideal for track and sprint use
• Endura brake pads – approximately 200% longer service life and improved response
• individual brake calliper colour according to preference

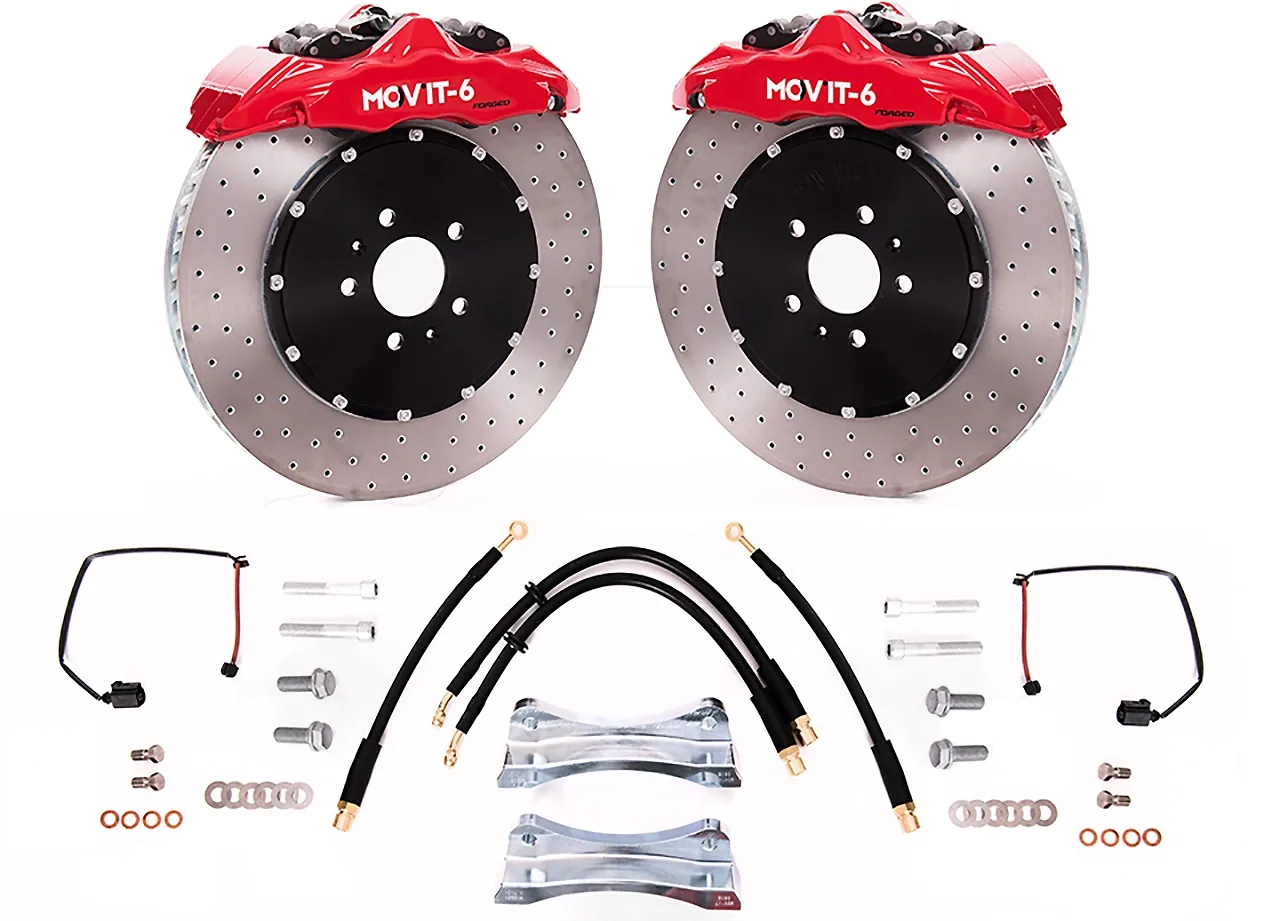

Scope of delivery

• 2x MOVIT aluminium brake callipers (left/right)
• 2x MOVIT two-piece, twin-ventilated brake discs (left/right)
• 2x vehicle-specific brake calliper adapters
• 1x set of Comfort brake pads
• 1x set of Teflon-coated braided steel brake lines (front and rear axles)
• fitting hardware
• fitting instructions and bedding-in guidance
• Teilegutachten

Road use: The kit is intended for road use and includes a Teilegutachten.

Conclusion

This MOVIT six-piston high-performance brake system combines uncompromising motorsport technology with road use. Maximum deceleration, excellent thermal stability and precise braking feel make it the ideal solution for high-performance vehicles with the highest demands for safety and performance.

Suitable for: VW Golf VII (5G1).

Manufacturer’s vehicle data

• MOVIT 6 Kolben Hochleistungs Bremsanlage 370x35mm 6K Golf 7 GTI/ R/ GTD

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.

Approval

This part comes with a German Teilegutachten (parts certificate); the document is included. In Germany the part must be entered in the vehicle registration after fitting.
