Nuke Performance Aluminium flange 24 bolt pattern for CFC Units

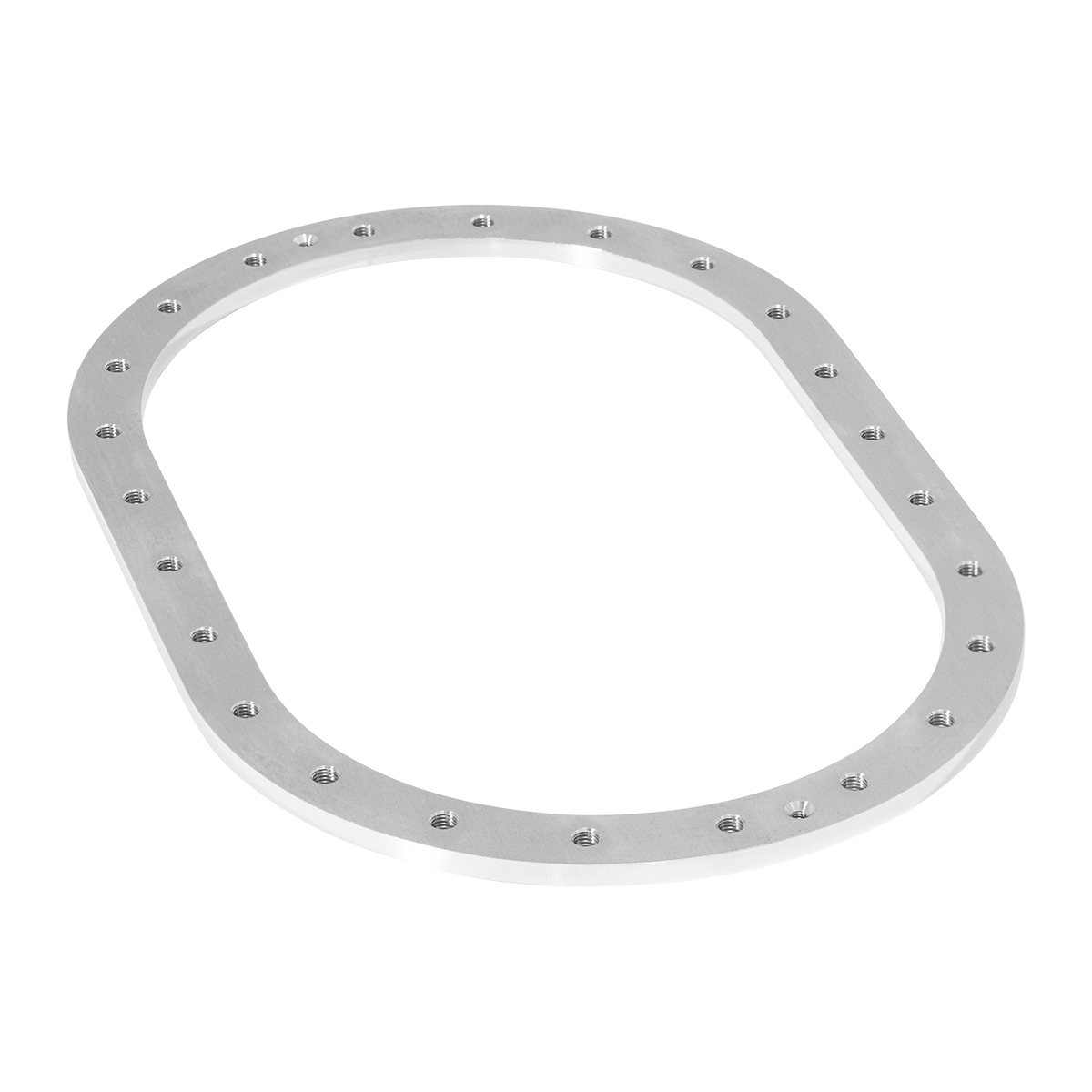

The Nuke Performance CFC Unit is able to be mounted to any type of fuel tank/fuel cell with this aluminum 6×10″ 24-bolt pattern flange.
The Nuke Performance aluminum flange uses the well-known 24-bolt 6×10″ pattern and is made for either welding to an aluminum fuel cell or to be fitted with countersunk bolts to be held in place.

Made of lightweight, high-quality aluminum and is delivered unoxidized to make it possible to be welded to an aluminum fuel cell, if wanted.

Thread size : 1/4-28 UNF x 1

This is a good solution for those who want to use/manufacture a custom fuel cell to their own specifications. Together with the Viton gasket provided with the CFC Unit, it makes a perfect seal, safe for all types of fuels.

Delivered without bolts or gasket. Both bolts and gasket are included with the Nuke Performance CFC Unit (150-05-201).

Quantity : 1pc

• Manufacture your own flange or mounting point for the CFC Unit?
Dimensions to manufacture a flange or modify a stock fuel tank to fit a 6×10 24bolt pattern fill plate, such as the Nuke Performance CFC Unit.
• Download DWG dimensions for 6×10 24 bolt (.DWG)
• Download DXF dimensions for 6×10 24 bolt (.DXF)
• Download PDF dimensions for 6×10 24 bolt (.PDF)
