Bosch BR540
| Petrol horsepower | ≈ 1200 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| E85 horsepower | ≈ 800 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| Flow rate | 540 LPH |
| Safe for ethanol | • YES |
| Fuel pump setup | In-tank fuel pump |

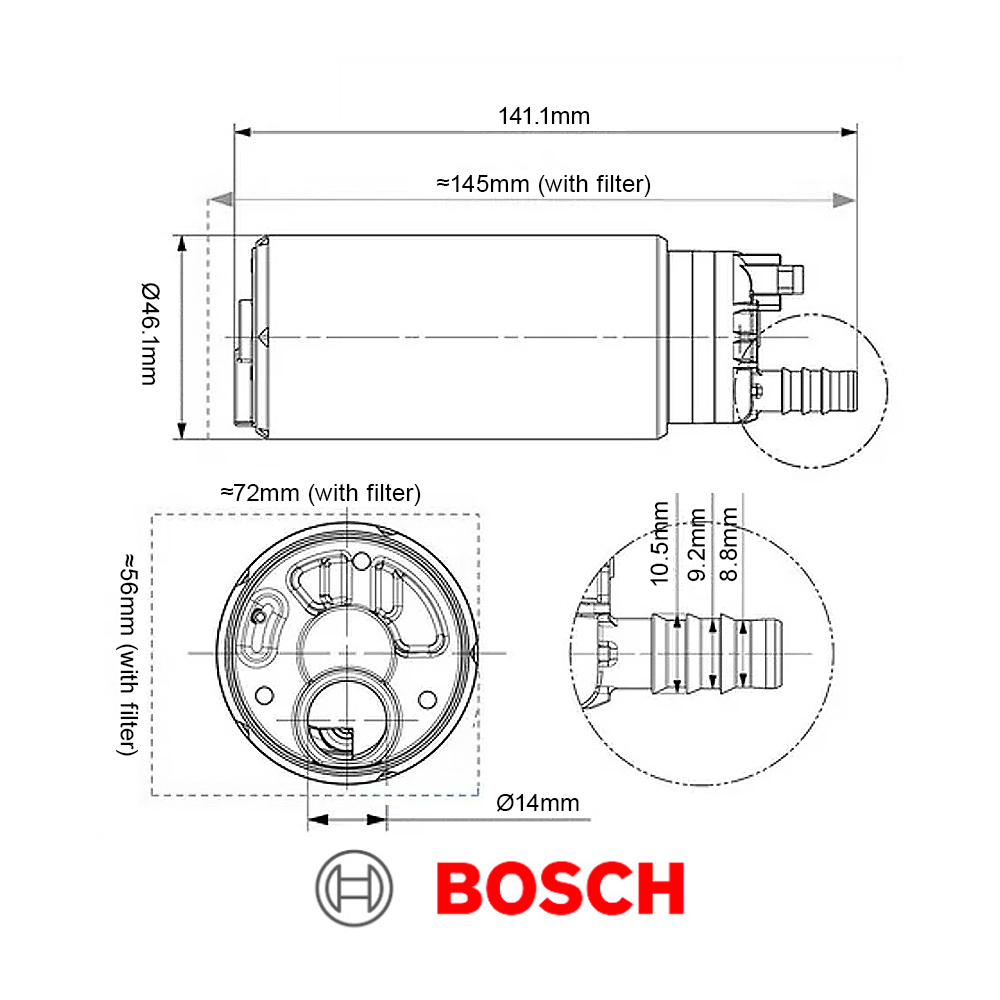

| Fuel pump diameter | 46mm (1.81″) |
| Outlet diameter | ≈ 10mm (to be used with ID10 mounting kit) |
| Internal check valve | YES |

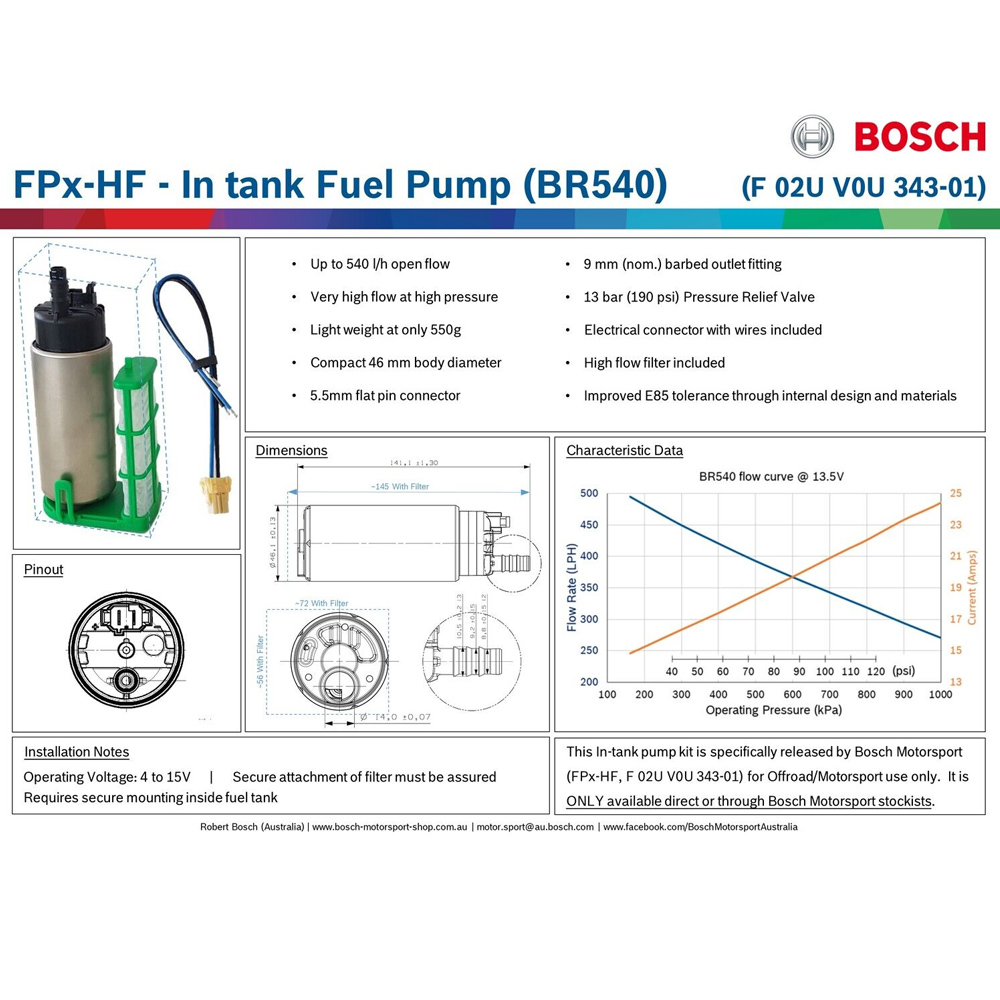

BOSCH BR540 High-flow in-tank motorsports fuel pump
Released exclusively by Bosch Motorsport, the BR540 is the highest-flowing in-tank fuel pump ever offered by Bosch. Manufactured in Germany with motorsport-grade precision, it delivers exceptional performance for high-demand applications.
Flows up to 540 LPH (free flow), 460LPH @ 40PSI (2.75BAR), Current draw : ~16A @ 40 PSI, ~19A @ 80 PSI, ~24A @ 145 PSI.

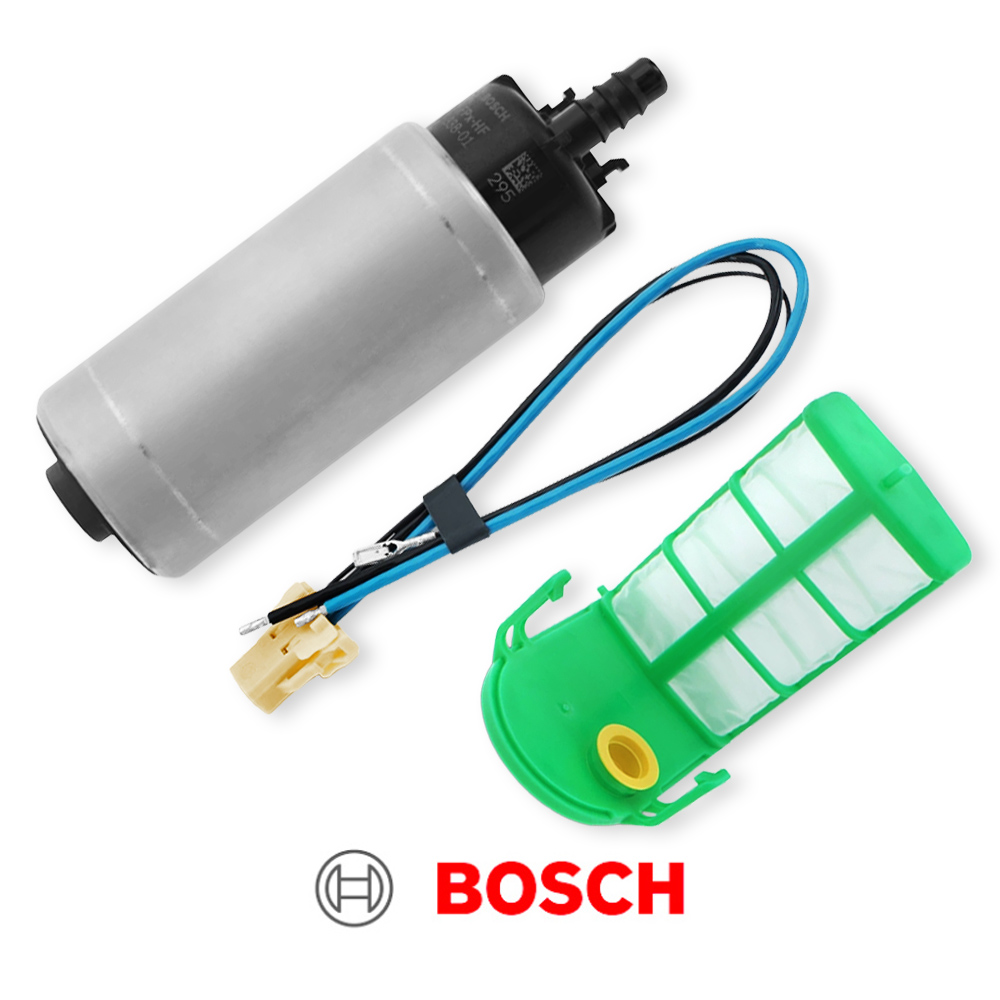

Lightweight 550g design with compact 46mm diameter body that suits both Nuke Performance CFC Unit and fuel surge tanks with included filter and filter adapter.
Take notice : Can not be used with the standard green Bosch filter in Nuke Performance applications.
For more info about this fuel pump, visit the manufacturer’s specifications.
