Bosch 627cc injector, high impedance – 53mm (EV14S), selected to fit the Nuke Performance range of fuel rails.

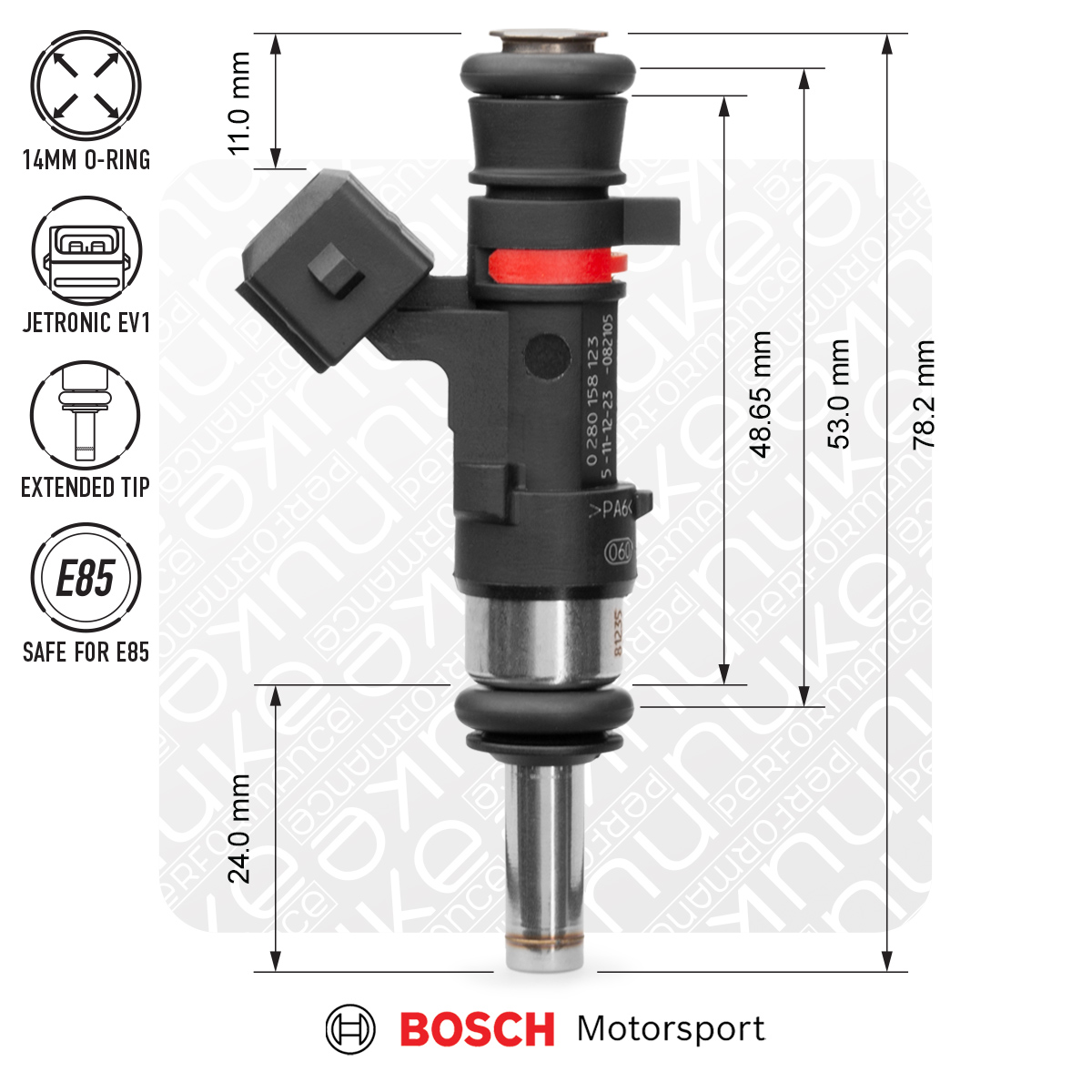

This injector is a Bosch EV14S Standard injector (48.65mm between O-rings / 53mm center to center of the O-rings).
• High impedance 627cc injector from Bosch Motorsport
• Extended tip, Bosch EV14 S injector length
• Delivered without additional adapters
When ordering injectors, always check the specifications of your fuel rail to accommodate the accurate injector type. Most Nuke Performance fuel rails use EV14L-sized injectors, available between 630cc to 2200cc.
• Bosch Motorsport 627cc Injector specifications :
For guidance on selecting the right injector for your application, please visit our FAQ (available separately) for more information.
| Bosch part number | 0280158123 / Bosch -123 |
| OEM part number | 99760513200 / 99760513201 / 99760513202 |
| Type – w/o included adapters | 53mm EV14S (Standard) |
| Type – with included adapters | No adapters included |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 12 ohm |
| Volume at 3 BAR | 627cc/min = 429g/min = 57lb/hr @ 3bar |
| Fuel compatibility | Petrol / Gasoline / E85 / M100 * |
| Nozzle / Spray pattern | Extended tip / Dual cone spray |
| For motorsports use | YES |
| Part # / EAN | 131-01-063 / 7340209508864 |
* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.
• Bosch 627cc Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
• Learn more : Visit our FAQ / Injector calculator
| Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | 492cc / min = 47 lb / h |
| 3 BAR (43.5 PSI) | 612cc / min = 58 lb / h |
| 4 BAR (58 PSI) | 708cc / min = 67 lb / h |
| 5 BAR (78.5 PSI) | 738cc / min = 70 lb / h |
| 6 BAR (88 PSI) | 870cc / min = 83 Ib / h |
| 7 BAR (101.5 PSI) | 942cc / min = 90 lb / h |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1×83 = 83hp | 1×108 = 108hp |
| 4 cyl | 4×83 = 332hp | 4×108 = 432hp |
| 5 cyl | 5×83 = 415hp | 5×108 = 540hp |
| 6 cyl | 6×83 = 498hp | 6×108 = 648hp |
| 8 cyl | 8×83 = 664hp | 8×108 = 864hp |
| E85 (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1×72 = 72hp | 1×90 = 90hp |
| 4 cyl | 4×72 = 288hp | 4×90 = 360hp |
| 5 cyl | 5×72 = 360hp | 5×90 = 450hp |
| 6 cyl | 6×72 = 432hp | 6×90 = 540hp |
| 8 cyl | 8×72 = 576hp | 8×90 = 720hp |
Injector calculation : The figures listed above are based on a base pressure of 3 BAR (43.5 PSI) at idle, providing a quick overview of this injector’s performance. For more details on selecting the best injector for your engine, visit our FAQ and use our Injector Calculator (available separately).
• Bosch injector 627cc, 53mm (EV14S) includes:
1 x Bosch Motorsport injector (# 0280158123)
• Optional flow-matching for optimized performance and consistent fuel delivery for high-performance applications.
We offer all of our injectors as flow-matched in kits of 4, 5, 6, and 8 pcs (available separately). Flow-matched injectors ensure consistent fuel delivery, optimizing performance, efficiency, and smoothness. Out-of-the-box injectors may vary in flow, leading to uneven fuel distribution and reduced performance. We recommend flow-matched injectors for all high-performance or tuned engines, where precise fuel delivery is critical.
Bosch injector 627cc, 53mm (EV14S), 4pcs flow matched Part # :
Bosch injector 627cc, 53mm (EV14S), 5pcs flow matched Part # :
Bosch injector 627cc, 53mm (EV14S), 6pcs flow matched Part # :
Bosch injector 627cc, 53mm (EV14S), 8pcs flow matched Part # :
• Injectors – Everything you need to know (FAQ)
• Accessories / Spare Parts
