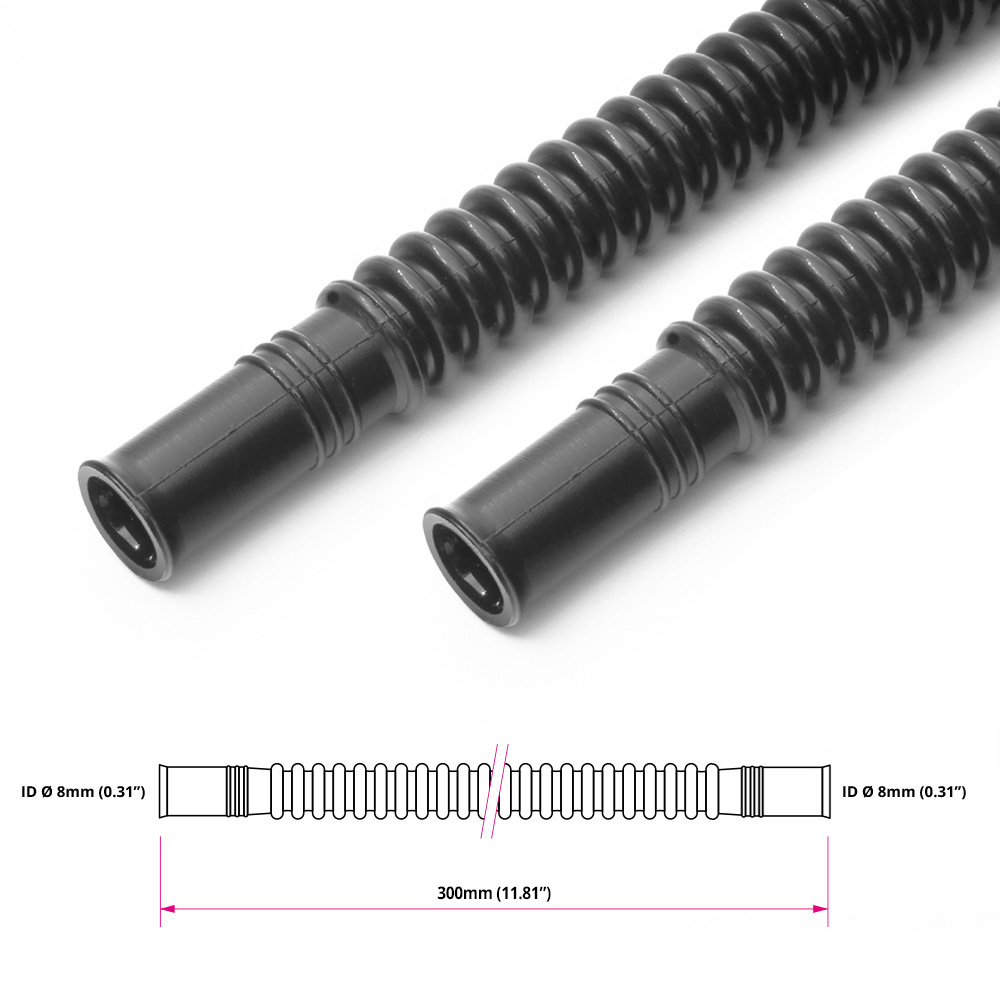

In-tank convoluted black nylon fuel hose with an internal diameter of 8 mm at both ends. Designed for use with the Nuke Performance fuel upgrade range as well as custom fuel system installations.
The circular corrugation provides excellent flexibility while maintaining high strength, allowing the hose to be routed easily in tight spaces. The nylon construction offers high mechanical durability with minimal wall thickness. Fully compatible with all types of fuels, including alcoholic fuels such as ethanol and methanol.

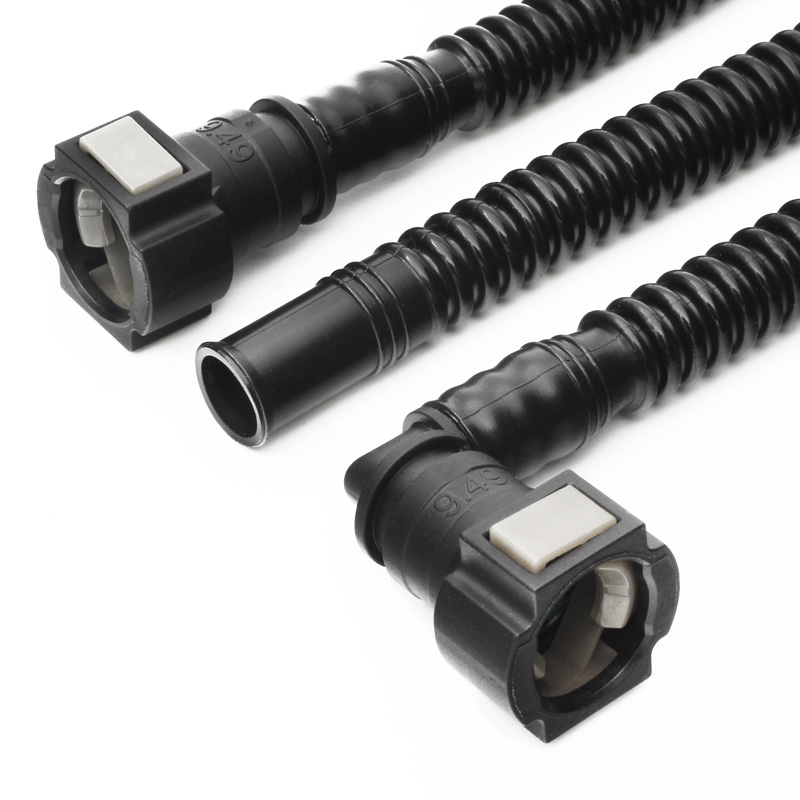

The SAE quick-connect fittings are available in a wide range of configurations and are manufactured from PA12 in accordance with SAE J2044 standards. Each fitting is equipped with Viton O-ring seals, ensuring long-term reliability with all fuel types, including ethanol and methanol. Operating temperature range: −40 °C to +115 °C.
The in-tank fuel hoses are available in lengths of 300 mm, 350 mm, and 500 mm, and are intended for use with barb fittings, fuel pumps, or SAE quick-connect fittings.
For secure installation, use together with a stainless steel single-ear hose clamp (Part No. 150-20-304) when connecting to the fuel pump or fitting of choice.
Use together with SAE fittings:
1/4 BSPP to SAE 9.49 Fitting Part # : 300-10-115
SAE J2044 Ø9.49 to ID8 Straight Part # : 150-20-202
SAE J2044 Ø9.49 to ID8 90° Part # : 150-20-203
SAE J2044 Ø7.89 ID8 90° Part # : 150-20-207
Quantity: 1pc
