| Petrol horsepower | ≈ 1400 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| E85 horsepower | ≈ 940 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| Flow rate | 660 LPH (40 PSI / 13.5v / 7.6 Amps) |
| Safe for ethanol | • YES |
| Fuel pump setup | In-line brushless fuel pump |
| Controller unit | C103 PWM controller unitC105 Dual speed controller unit |
| Impeller design | Positive displacement screw |
| Note | No internal check valve |
| Inlet thread | AN-8 ORB (view accessories) |
| Outlet thread | AN-8 ORB (view accessories) |
| In-tank installation | Optional in-tank installation kit # 9-0950 |

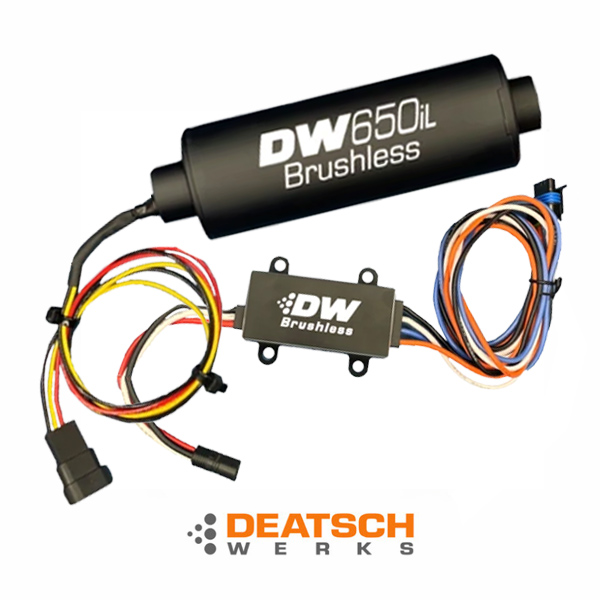

Deatschwerks DW650il Brushless in-line fuel pump with included controller.

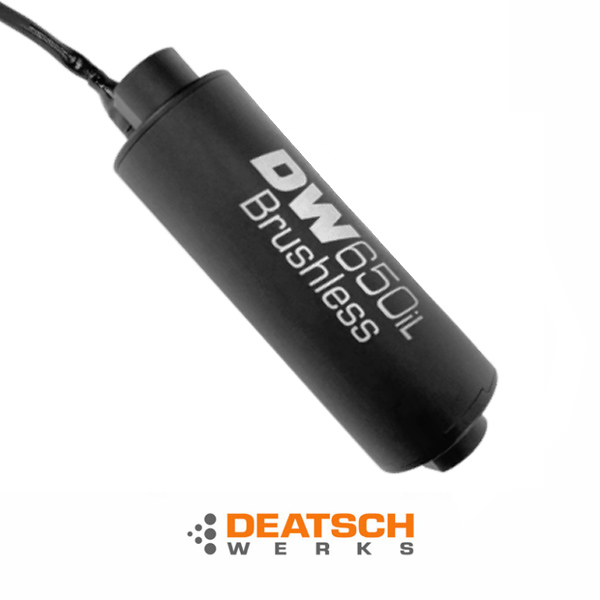

The DW650iL brings brushless technology to DW’s line of in-line fuel pumps. Brushless technology reduces friction and heat, increases efficiency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.
Along with higher flow rates, the DW650iL comes with AN ORB female threads on the inlet and outlet to accommodate fuel lines easily. It’s delivered with either the DW C103 PWM controller or the DW C105 dual-speed controller unit. Make sure to select the preferred one when placing your order.
For more info about this fuel pump, visit the manufacturers website.
Quantity : 1pc
