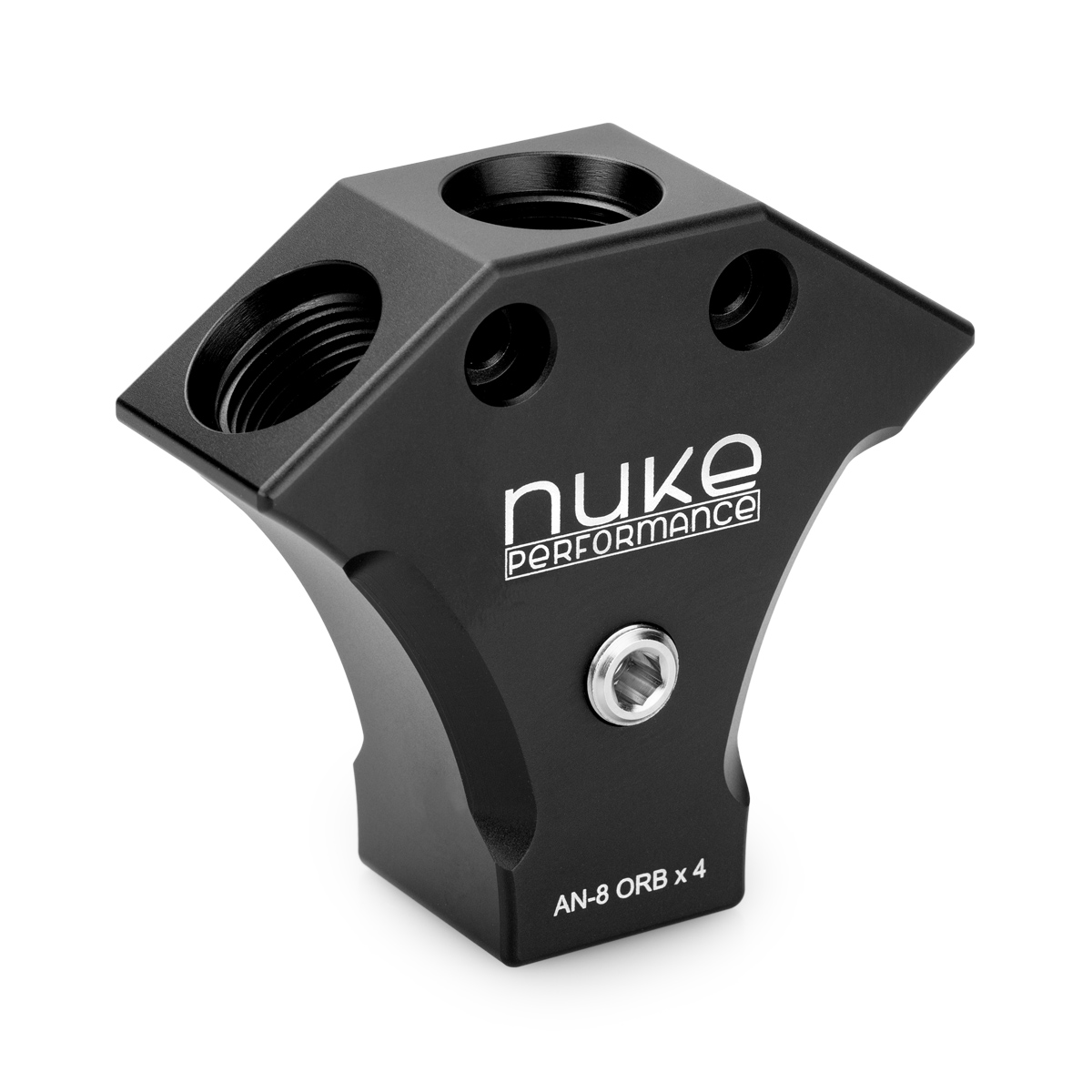

Nuke Performance X-Block Adapter Fitting, AN-8 ORB (4x)

Compact, versatile X-block with oversized flow and sensor port integration. 4x AN-8 ORB ports and 1x 1/8 NPT sensor port.

An updated take on one of the very first Nuke Performance products, this X-Block Adapter Fitting features four oversized AN-8 ORB threaded ports, delivering maximum flow and flexibility for demanding motorsport applications.

• 4 x AN-8 ORB ports for maximum flow
• 1 x 1/8 NPT port for gauge or sensor application
• Let’s you divide or combine two lines into one
• 35° angled dual ports for compact installs
• Works with all types of fuels, as well as oil and coolant

Built to handle high-performance fuel, oil, or coolant routing easily, this compact and lightweight distribution block is a must-have for any custom setup.

Whether you’re building a dual-feed fuel system, adding a pressure sensor to your oil line, or creating a clean and efficient fluid split, this X-block offers the flexibility and flow capacity you need — all with the quality and design you expect from Nuke Performance.

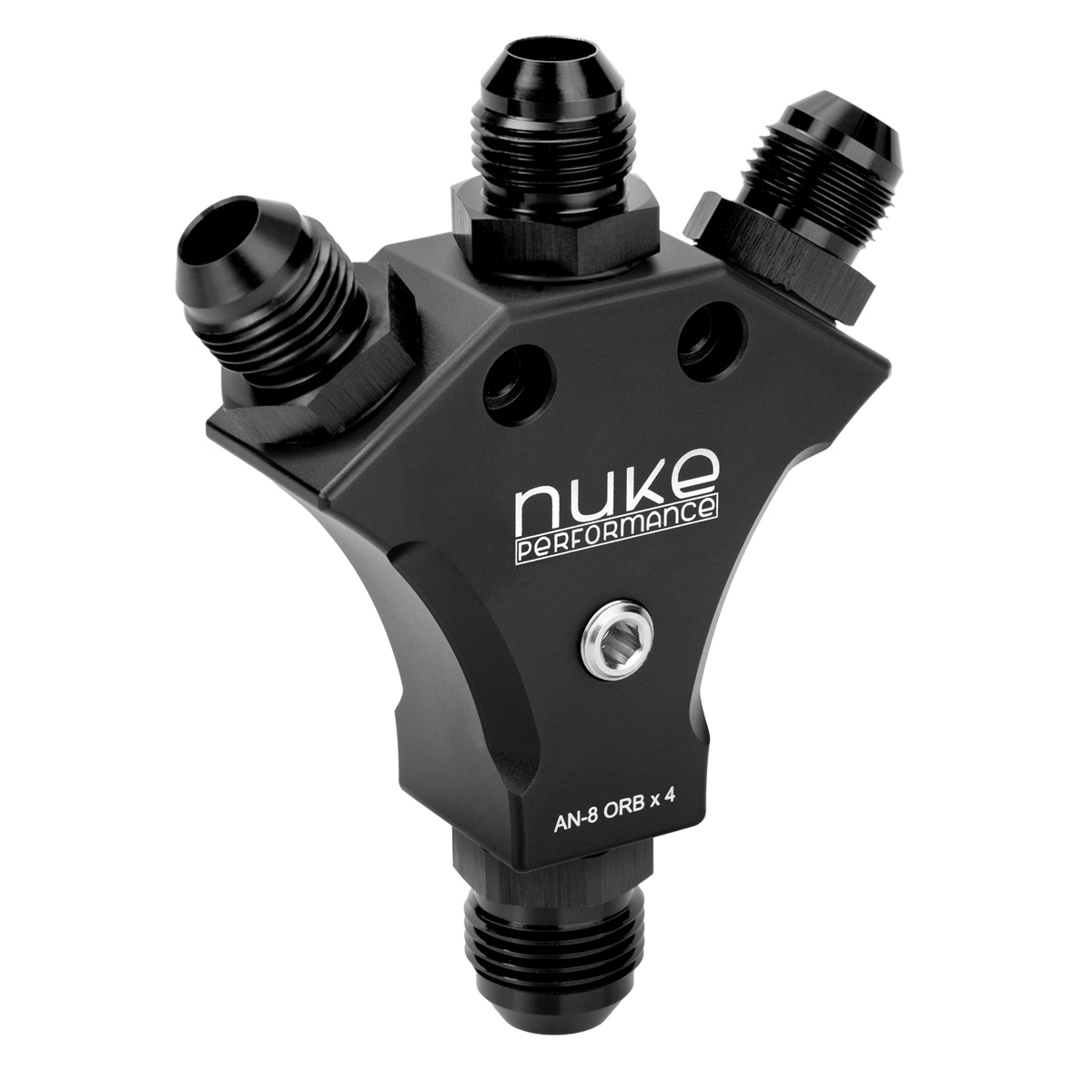

• Versatile AN-8 ORB ports – compatible with a wide range of adapters and fittings.

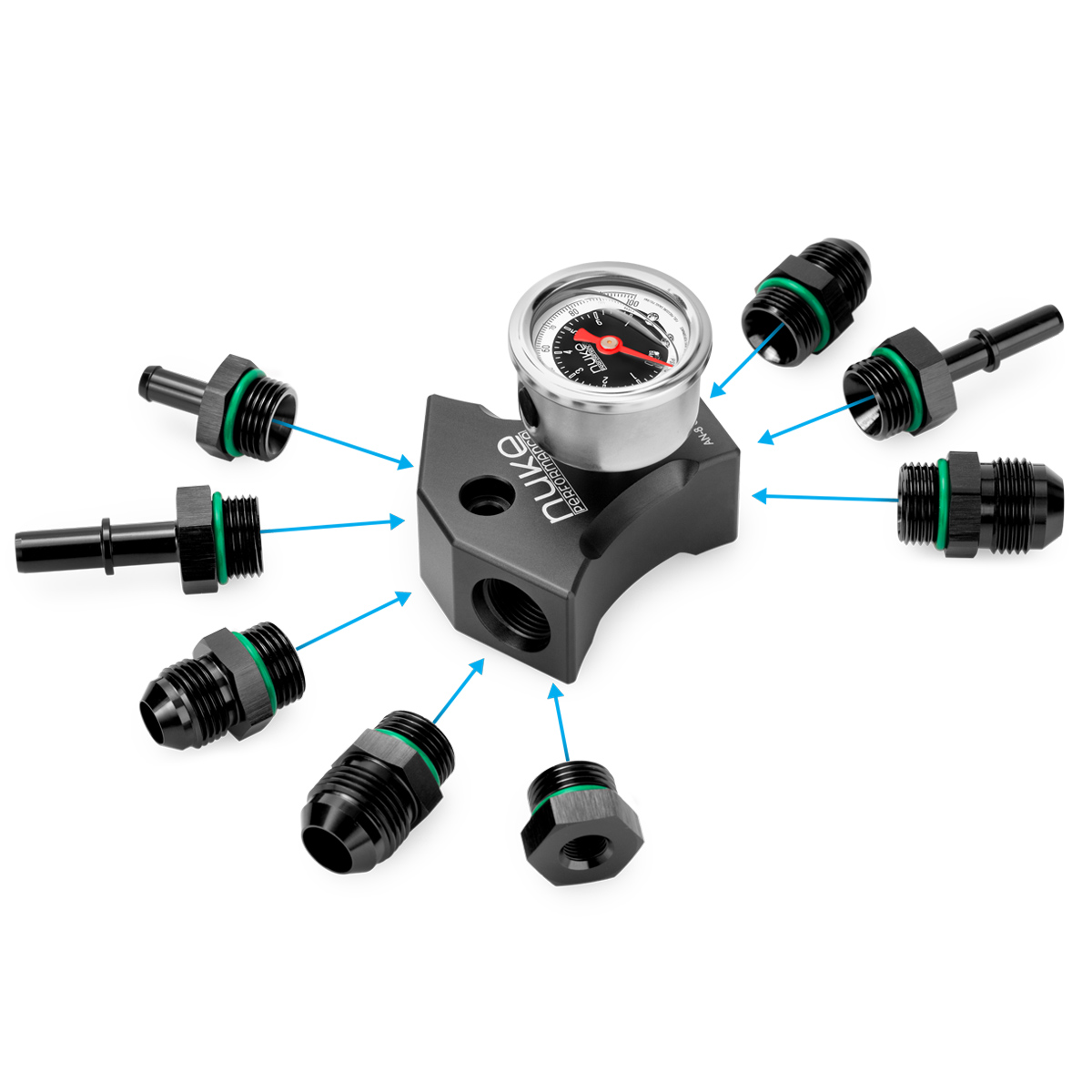

We offer a wide range of interchangeable fittings and adapters, including AN sizes from AN-4 to AN-12, SAE quick-connect fittings for seamless integration with OEM fuel systems, barb fittings for rubber hoses, and much more. The AN-8 ORB standard (available separately) provides exceptional versatility, making it ideal for both high-performance fuel systems and motorsports-grade oil applications.
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to SAE 7.89 Male Part # : 150-20-422
AN-8 ORB to SAE 9.49 Male Part # : 150-20-425
AN-8 ORB to 8mm Male Part # : 700-04-123

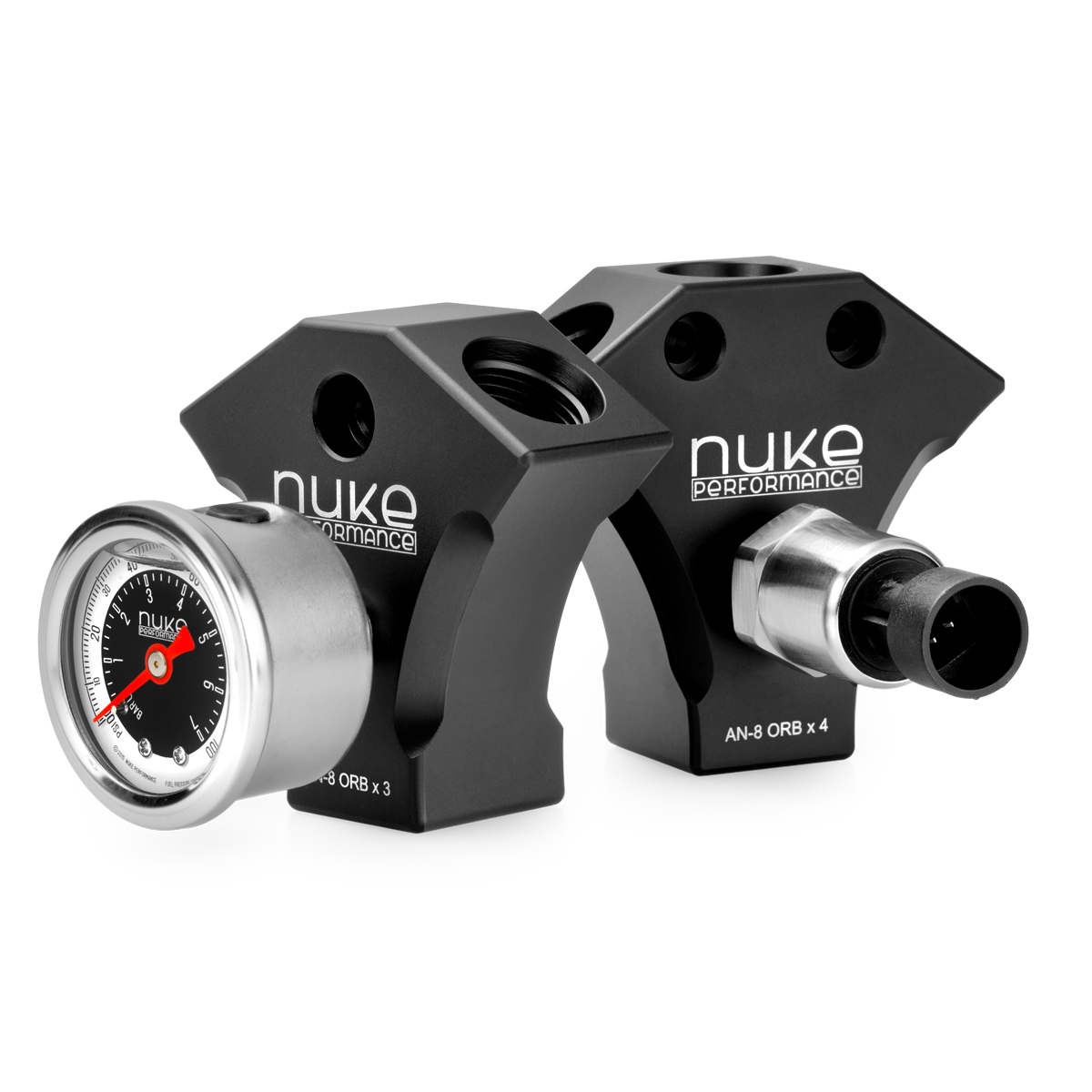

• 1x 1/8 NPT port for pressure or temperature monitoring.
The new generation X-Block Adapter Fitting, AN-8 ORB (4x) is equipped with an integrated 1/8 NPT port is perfect for installing pressure or temperature sensors or for adding a pressure gauge for system monitoring.
Fuel Pressure Gauge 7 BAR / 100 PSI Part # : 310-01-101
10 BAR (150 PSI) fuel/oil pressure sensor, with connector Part # : 70-1018
10 BAR (150 PSI) fuel/oil pressure sensor, with 1m (3ft) cable Part # : 70-1018C

• X-Block Adapter Fitting, AN-8 ORB (4x) Specifications
For more information about specifications, contact us directly.

• Fittings and Adapters

X-Block Adapter Fitting, AN-8 ORB (4x) includes:
1 x X-block adapter body
1 x 1/8 NPT Plug
