Racingline air suspension lowering links for Audi A6/A7 C7, A8 D4, Q7 4L

Racingline adjustable lowering links (VWR436000) allow precise adjustment of the vehicle height with the original air suspension. You can lower the Audi by up to 50 mm or 2″ at each corner, front and rear, while retaining the comfort and functionality of the factory air suspension.

How the lowering links work

Air suspension uses height sensors at each corner of the vehicle. The sensors are connected to the suspension arms by short plastic links and tell the control units how high the vehicle is. Racingline adjustable links replace the original plastic parts and allow precise adjustment of the sensor signal.

The result is a lower, more stable stance with a lower centre of gravity, a sportier appearance and a stronger presence on the road, while the original air suspension continues to operate as intended.

Benefits

• Adjustment on the vehicle: By turning the body of the link, you can adjust the height at each corner without removing and reinstalling it.
• Wide adjustment range: From standard height to 50 mm or 2″ lower, front and rear.
• Retains factory functions: MMI height modes and the lift function for speed bumps and steep driveways continue to operate normally.
• No coding or reprogramming: Installation requires no software changes, and the solution is fully reversible.
• Durable construction: CNC-machined 6061-T6 aluminium bodies with gloss black anodising, adjusters with stainless steel threads and sealed ball joints for long-term maintenance-free operation.

How it works

Changing the effective length of the link between the suspension arm and the height sensor changes the angle detected by the sensor. The control unit then adjusts the air springs to maintain the height it considers correct, but this height is lower than standard due to the adjustment.

As no other suspension components are changed, the factory comfort, damper operation and automatic height adjustment are retained. The precise lowering height may vary slightly between different MMI modes, such as Comfort, Auto and Dynamic, which is normal and expected.

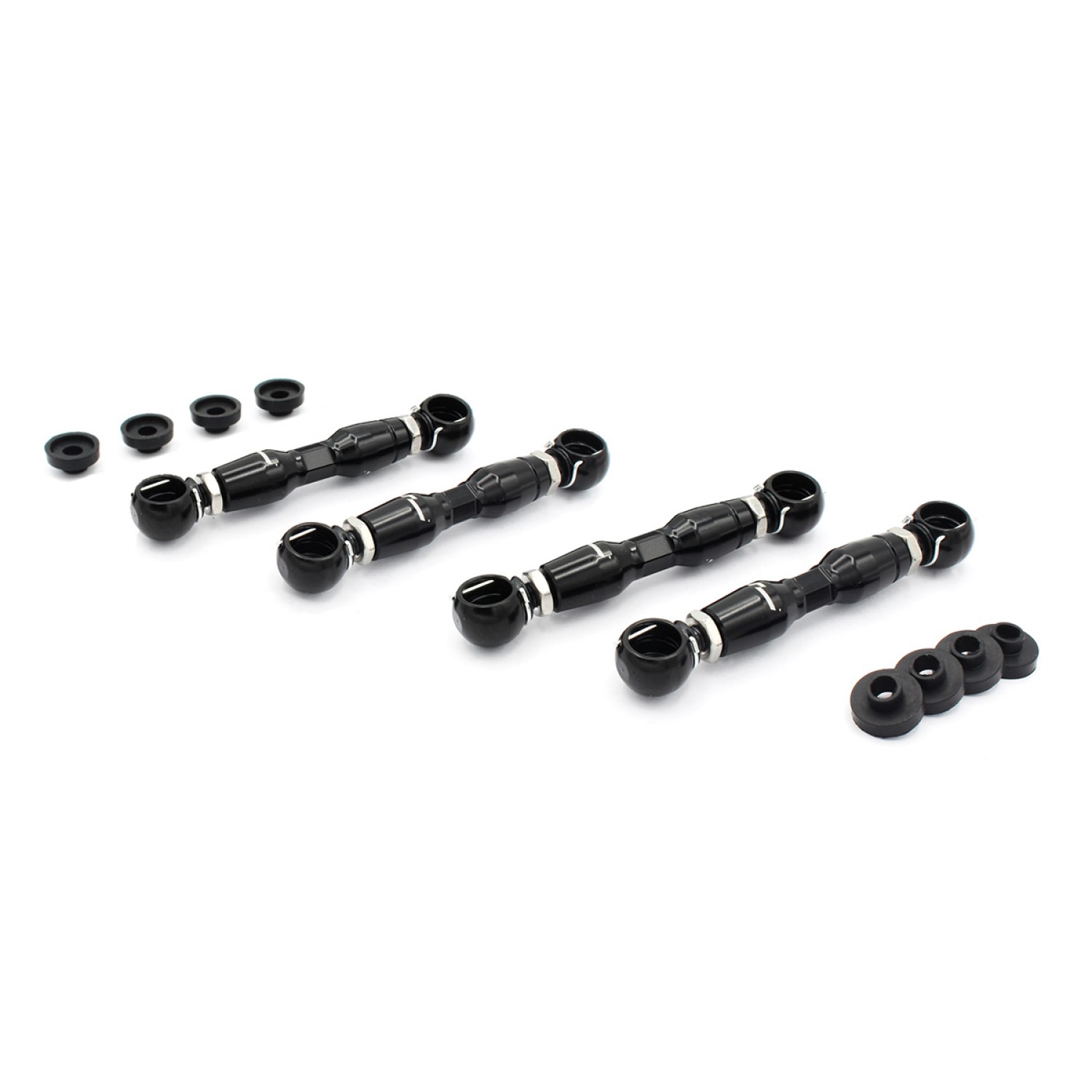

Kit contents

• 4× adjustable links made from solid aluminium
• 4× ball joints with right-hand threads
• 4× ball joints with left-hand threads
• 8× dust seals

Compatibility

The kit is intended for vehicles with original factory air suspension. It does not work on vehicles with conventional suspension with coil springs.

Kit weight: 2.00 kg

Suitable for: Audi A6 VII (4G/C7), Audi A7 I (4G), Audi A8 IV (4H/D4), Audi Q7 I (4L), Audi RS6 IV (C7), Audi RS7 I (C7), Audi S6 IV (C7), Audi S7 I (C7), Audi S8 III (D4).

Approval

This part has no TÜV certification (ABE, TTG or Teilegutachten).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
