The factory plastic coolant outlet on EA888 engines is a known weak point. As it is fitted directly next to the turbocharger, it is exposed to high temperatures, which eventually cause the plastic to become brittle, crack and lead to coolant loss.

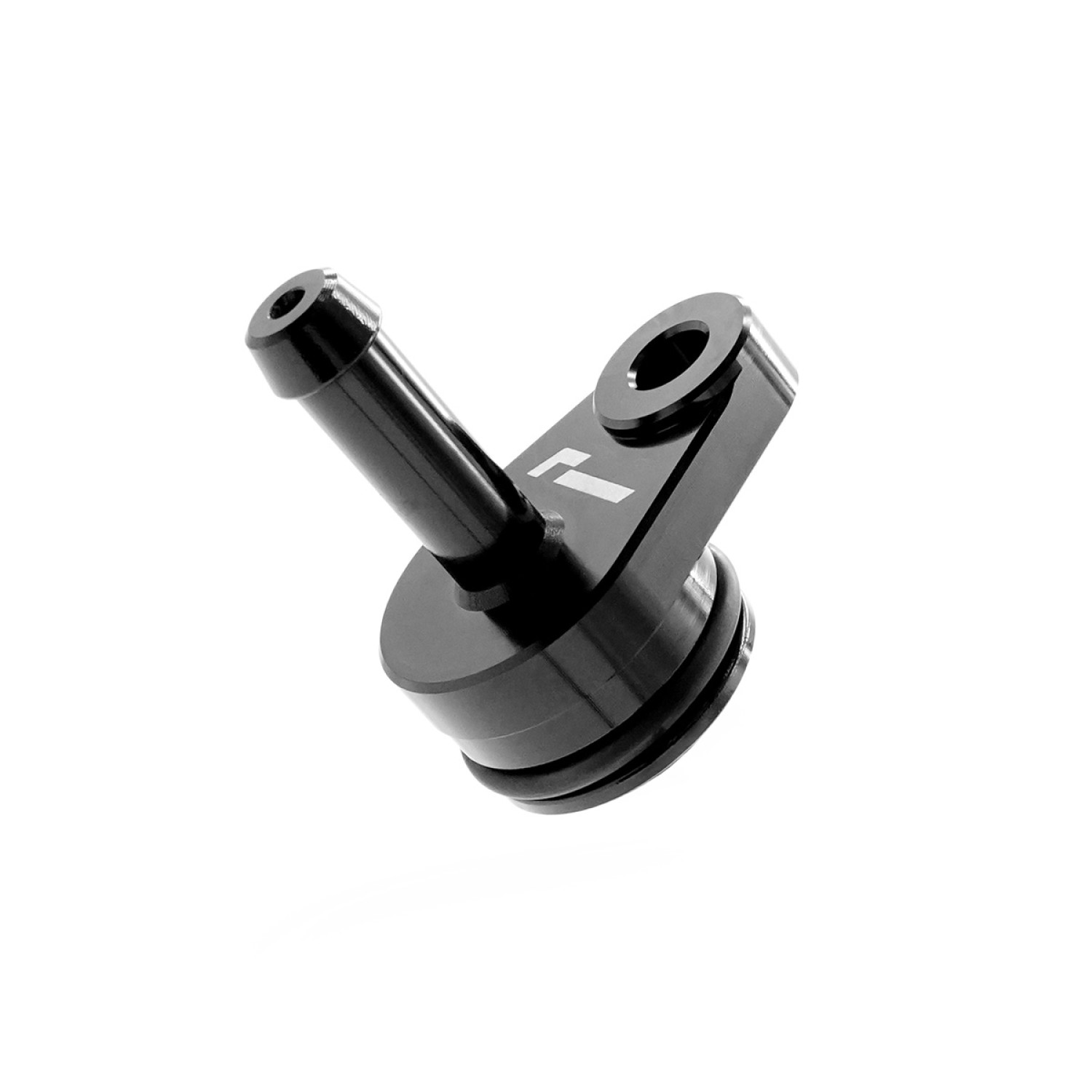

Racingline’s CNC-machined aluminium replacement is designed as a more durable solution. It is a direct replacement for the original part 06K 121 143, replacing the factory plastic housing with an aluminium outlet resistant to warping, softening and heat-related cracking.
Why choose an aluminium outlet?
- Prevents sudden coolant loss caused by the original plastic part cracking next to the turbocharger.
- CNC machining from a solid aluminium billet provides high strength and long-term resistance to heat.
- The anodised surface protects against corrosion caused by coolant additives, oil and road salt.
- Direct installation using the original mounting points and hoses.
- A pre-installed O-ring is included, so the part is ready for installation.
The kit includes
- 1× Racingline aluminium coolant outlet
- 1× pre-installed O-ring
Installation
Installation is straightforward for anyone familiar with basic mechanical work. You will need a Torx T30 screwdriver, hose-clamp pliers and a rubber clamp to temporarily close the coolant hoses during replacement. After installation, top up the coolant and bleed the cooling system.
Compatibility
The product is intended for vehicles with 1.8 TSI and 2.0 TSI EA888 Gen.3 and 2.0 TSI EA888 Gen.4 engines. It fits numerous models from VW, Audi, SEAT, Škoda and Cupra, including the Golf GTI, Golf R, S3, TT, Leon Cupra and Octavia vRS.
Replaces original part number
06K 121 143
Weight: 0.50 kg
Suitable for: Audi A1 I (8X) / II (GB), Audi A3 III (8V) / IV (GY), Audi Q2 I (GA), Audi S1 I (8X), Audi S3 III (8V) / IV (8Y), Audi SQ2 I (GA), Audi TT III (FV), Audi Tts III (FV), Cupra Ateca I (KH7), Cupra Formentor I (KM7), Cupra Leon IV (KL1), SEAT Ateca I (KH7) and 9 more (see the table below).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A1 | 8X1, 8XK | 2012–2018 | 1.8 TFSI (DAJB), 2.0 TFSI quattro (CDLH), S1 quattro (CWZA) |
| Audi A1 Sportback | 8XA, 8XF | 2014–2018 | 1.8 TFSI (DAJB), S1 quattro (CWZA) |
| Audi A1 Sportback | GBA | 2018–2025 | 40 TFSI (CZPC/DKZC), 40 TFSI (DNND) |
| Audi A3 | 8V1, 8VK | 2012–2017 | 1.8 TFSI (CJSA), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CZPB), 2.0 TFSI quattro (CZPB), S3 quattro (CJXB), S3 quattro (CJXC) … |
| Audi A3 Allstreet | 8YH | 2022–2024 | 40 TFSI quattro (DNNA) |
| Audi A3 Convertible | 8V7, 8VE | 2013–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI (CNSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CZPB), 2.0 TFSI quattro (CNTC), 2.0 TFSI quattro (CZPB) … |
| Audi A3 Saloon | 8VS, 8VM | 2013–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI (CNSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CHHB), 2.0 TFSI (CZPB/DKZA), 2.0 TFSI quattro (CZPB/DKZA) … |
| Audi A3 Saloon | 8YS, 8YM | 2020–2025 | S3 TFSI quattro (DNFB/DSFA), S3 TFSI quattro (DNFF/DSFD) |
| Audi A3 Sportback | 8VA, 8VF | 2012–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CZPB/DKZA), 2.0 TFSI quattro (CZPB/DKZA), 40 TFSI (DKZA), 40 TFSI quattro (DKZA) … |
| Audi A3 Sportback | 8YA, 8YF | 2020–2025 | 40 TFSI quattro (DNNE), S3 TFSI quattro (DNFB), S3 TFSI quattro (DNFF/DSFD) |
| Audi Q2 | GAB, GAG | 2017–2025 | 2.0 TFSI quattro (CZPB/DKZA), 40 TFSI quattro (DKZA), 40 TFSI quattro (DNNA), SQ2 TFSI quattro (DNFC/DNUE) |
| Audi TT | FV3, FVP | 2014–2025 | 1.8 TFSI (CJSA/CJSB), 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS quattro (CJXG), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CYFB/DLRA) … |
| Audi TT Roadster | FV9, FVR | 2014–2025 | 1.8 TFSI (CJSA/CJSB), 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CJXG), 2.0 TTS TFSI quattro (DNUF) … |
| CUPRA Ateca | KH7, KHP, KBP | 2018–2025 | 2.0 TSI 4Drive (DNFC/DNUE), 2.0 TSI 4Drive (DNNA) |
| CUPRA Formentor | KM7, KMP | 2020–2025 | 2.0 TSI (DNPA), 2.0 TSI 4Drive (DNFB), 2.0 TSI 4Drive (DNNA), 2.0 VZ (DNPD), 2.0 VZ 4Drive (DNFF) |
| CUPRA Leon | KL1, KU1, KUG | 2021–2025 | 2.0 TSI (DNNA), 2.0 TSI (DNPA), 2.0 TSI VZ (DNFC) |
| CUPRA LEON Sportstourer | KL8, KU8, KUD | 2022–2025 | 2.0 TSI (DNNA), 2.0 VZ 4Drive (DNFF) |
| SEAT Ateca | KH7, KHP | 2017–2025 | 2.0 TSI 4Drive (CZPB/DKZA/DNNA) |
| SEAT IBIZA Mk IV SC | 6J1, 6P5 | 2015–2016 | 1.8 TSI Cupra (DAJA) |
| SEAT Leon | 5F1 | 2013–2020 | 1.8 TSI (CJSA), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC), 2.0 Cupra R (CJXG) … |
| SEAT Leon | KL1, KLG | 2021–2025 | 2.0 TFSI (CZPB/DNNA) |
| SEAT Leon Sc | 5F5 | 2013–2018 | 1.8 TSI (CJSA), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH) |
| SEAT LEON Sportstourer | KL8, KLD | 2021–2025 | 2.0 TFSI (DNNA) |
| SEAT Leon St | 5F8 | 2013–2020 | 1.8 TSI (CJSA), 1.8 TSI 4Drive (CJSA/CJSB), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC) … |
| Skoda Octavia III | 5E3, NL3, NR3 | 2012–2020 | 1.8 TSI (CJSA), 1.8 TSI 4×4 (CJSB), 2.0 TSI (DKZA), 2.0 TSI 4×4 (DKZA), 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB) … |
| Skoda OCTAVIA III Combi | 5E5, 5E6 | 2012–2020 | 1.8 TSI (CJSA/CJSB), 1.8 TSI 4×4 (CJSB), 2.0 TSI (DKZA), 2.0 TSI 4×4 (DKZA), 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB) … |
| Skoda Octavia IV | NX3, NN3, PV3 | 2020–2025 | 2.0 TSI 4×4 (DNNE), 2.0 TSI RS (DLBA/DNPA), 2.0 TSI RS (DNPD) |
| Skoda OCTAVIA IV Combi | NX5, PV5 | 2020–2025 | 2.0 RS TSi (DNPD), 2.0 TSI 4×4 (DNNA), 2.0 TSI 4×4 (DNNE), 2.0 TSI RS (DLBA/DNPA) |
| Skoda Superb III | 3V3 | 2015–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TFSI (CHHB), 2.0 TFSI 4×4 (CJXA/DNFE), 2.0 TSI (CZPB/DKZA), 2.0 TSI (DNNA), 2.0 TSI 4×4 (DNUA) |
| Skoda SUPERB III Estate | 3V5 | 2015–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TSI (CHHB), 2.0 TSI (CZPB/DKZA), 2.0 TSI (DNNA), 2.0 TSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Volkswagen Arteon | 3H7, 3H8 | 2017–2025 | 2.0 TSI (CZPB/DKZA), 2.0 TSI (DNNA), 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSI 4motion (DLRB/DNUA), 2.0 TSI R 4motion (DNFG) |
| Volkswagen Arteon Shooting Brake | 3H9 | 2020–2025 | 2.0 TSi (DNNA/DUNA), 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSi 4motion (DNUA), 2.0 TSI R 4motion (DNFG) |
| Volkswagen Golf VII | 5G1, BQ1, BE1, BE2 | 2013–2020 | 2.0 GTI (CHHA), 2.0 GTI (CHHB/CNTC/CXCB/CXDA), 2.0 GTI (CNTA/CXCA), 2.0 GTI (DKTB/DLBA), 2.0 GTI Clubsport (CJXE), 2.0 GTI Clubsport S (CJXG) … |
| Volkswagen Golf VIII | CD1, DA1 | 2020–2025 | 2.0 GTI (DLBA/DNPA/DRNA/DZMA), 2.0 GTI (DNPD), 2.0 GTI Clubsport (DNFC), 2.0 TSI 4motion (DNNE), 2.0 TSI R 4motion (DNFF/DSFD), 2.0 TSI R 4motion (DNFG/DSFE/DSFF) |
| Volkswagen GOLF VIII Variant | CG5, DB5 | 2021–2025 | 2.0 TSI 4motion (DNNE), 2.0 TSI R 4motion (DNFF), 2.0 TSI R 4motion (DNFG) |
| Volkswagen Polo VI | AW1, BZ1, AE1, BZ3 | 2017–2025 | 2.0 GTI (CZPC/DKZC), GTI (DNND) |
| Volkswagen T-Roc | A11, D11 | 2017–2025 | 2.0 R 4motion (DNFC/DNUE), 2.0 TSI 4motion (CZPB/DKZA), 2.0 TSI 4motion (DNNA) |
| Volkswagen Tiguan | AD1, AX1 | 2016–2024 | 2.0 TSI 4motion (CHHB), 2.0 TSI 4motion (DKTA), 2.0 TSI 4motion (DKZA), 2.0 TSI 4motion (DNNA), 2.0 TSI 4motion (DNPA), 2.0 TSI R 4motion (DNFG/DSFE) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
