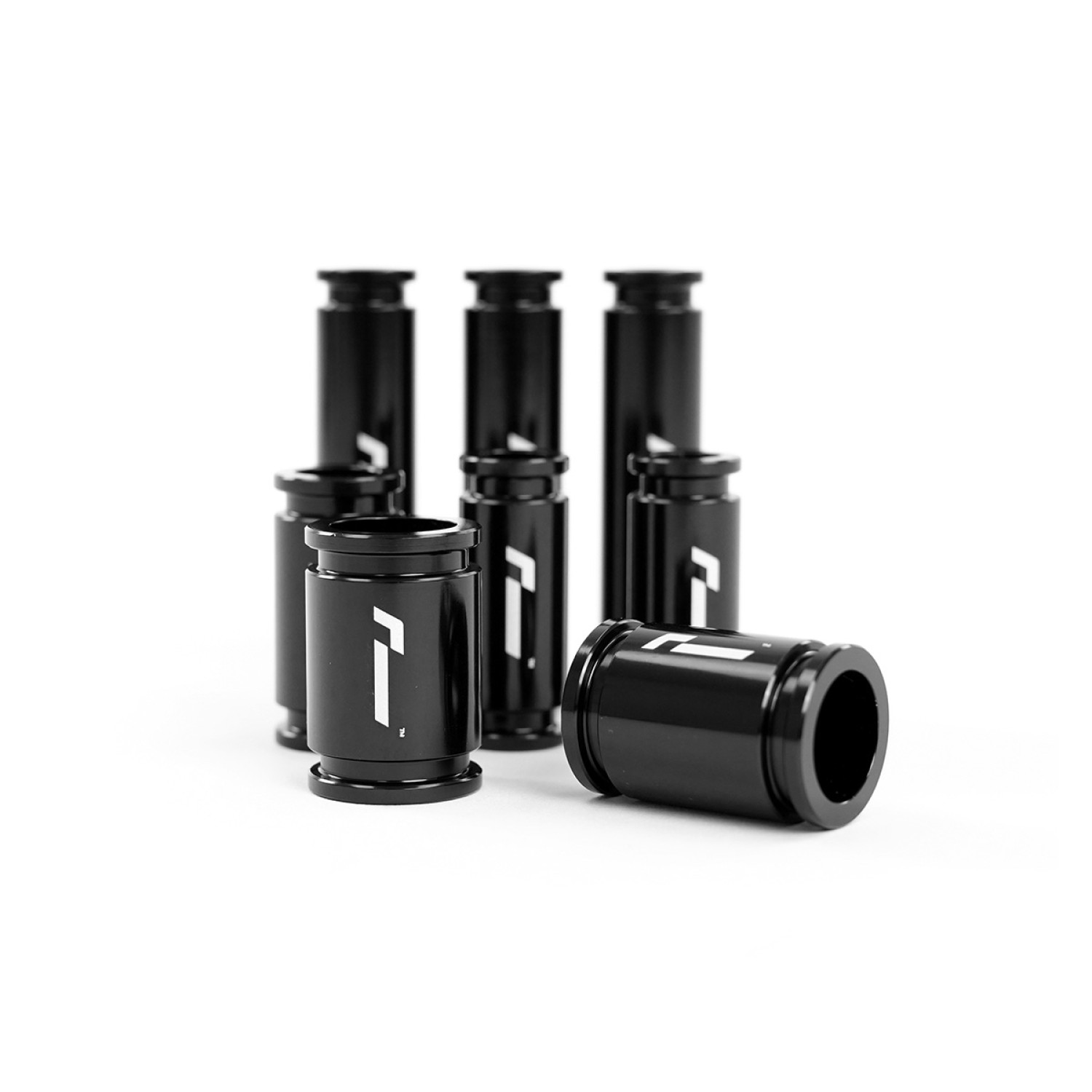

Racingline billet oil feed tubes are a direct replacement for the factory plastic oil transfer tubes in DQ381 and DQ500 DSG gearboxes, used in numerous Volkswagen Group vehicles. The original plastic tubes are a known weak point: due to heat cycles, age and increased loads in tuned engines, they can become brittle, crack or break completely – often during routine mechatronics servicing or clutch replacement.
The tubes deliver gearbox oil to key gearbox components, including the clutches and mechatronics. If a plastic tube fails, oil pressure drops, which can cause poor gear changes, clutch slip and, in the worst case, damage to the gearbox internals. Replacing them with the billet version eliminates this risk.
Why replace the factory plastic tubes?
- CNC-machined from billet aluminium for long-term durability
- Maintains consistent oil flow and pressure to the clutches and mechatronics
- Resistant to heat cycles and the increased torque loads of tuned engines
- Suitable for installation during scheduled clutch or mechatronics servicing
- Direct replacement with no modifications
When should they be installed?
The most practical time to install them is during major gearbox servicing, such as DSG clutch replacement or refurbishment, mechatronics replacement or gearbox overhaul. This avoids reopening the gearbox and reduces the chance of the brittle original plastic tubes breaking during disassembly.
Important: The tubes should be installed by a qualified technician familiar with DSG gearbox servicing. Correct installation and the use of fresh DSG oil are essential for reliable operation.
Compatibility
The kit is intended for Volkswagen Group vehicles with a DQ381 or DQ500 DSG gearbox, including models from the Audi A3, S3, RS3 and TT families, SEAT Leon and Volkswagen Golf VII. Exact compatibility depends on the gearbox and engine version.
Weight: 0.50 kg
Summary
If your vehicle is equipped with a DQ381 or DQ500 gearbox, Racingline billet oil feed tubes are a sensible preventive upgrade to the factory plastic tubes. They are a small but important component that is best replaced before the original tubes can fail.
Suitable for: Audi RS3 III (8V), Audi S3 III (8V), Audi TT III (FV), Audi Tts III (FV), SEAT Leon III (5F) / III (5F1), VW Golf VII (5G1).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 Saloon | 8VS, 8VM | 2016–2020 | RS3 quattro (DAZA/DNWA), S3 quattro (CJXC/DNUE), S3 quattro (CJXD/DJHB), S3 quattro (CJXG/DJHA), S3 quattro (CYFB/DJJA/DLRA) |
| Audi A3 Sportback | 8VA, 8VF | 2015–2020 | RS3 quattro (CZGB), RS3 quattro (DAZA/DNWA), S3 quattro (CJXC/DNUE), S3 quattro (CJXD/DJHB), S3 quattro (CJXG/DJHA) |
| Audi TT | FV3, FVP | 2016–2026 | 2.5 RS TFSI quattro (DAZA/DNWA), TTS TFSI quattro (DNFD) |
| Audi TT Roadster | FV9, FVR | 2016–2026 | 2.5 RS TFSI quattro (DAZA/DNWA), TTS TFSI quattro (DNFD) |
| SEAT Leon | 5F1 | 2017–2020 | 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC), 2.0 Cupra R (CJXG) |
| SEAT Leon St | 5F8 | 2016–2020 | 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC), 2.0 Cupra 4Drive (CJXC/DNUE) |
| Volkswagen Golf VII | 5G1, BQ1, BE1, BE2 | 2017–2020 | 2.0 GTI (DKTB/DLBA), 2.0 GTI TCR (CJXH/DNUC), 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC), 2.0 R 4motion (CJXG/DJHA) |
| Volkswagen GOLF VII Estate | BA5, BV5 | 2017–2020 | 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC), 2.0 R 4motion (CJXG/DJHA) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
