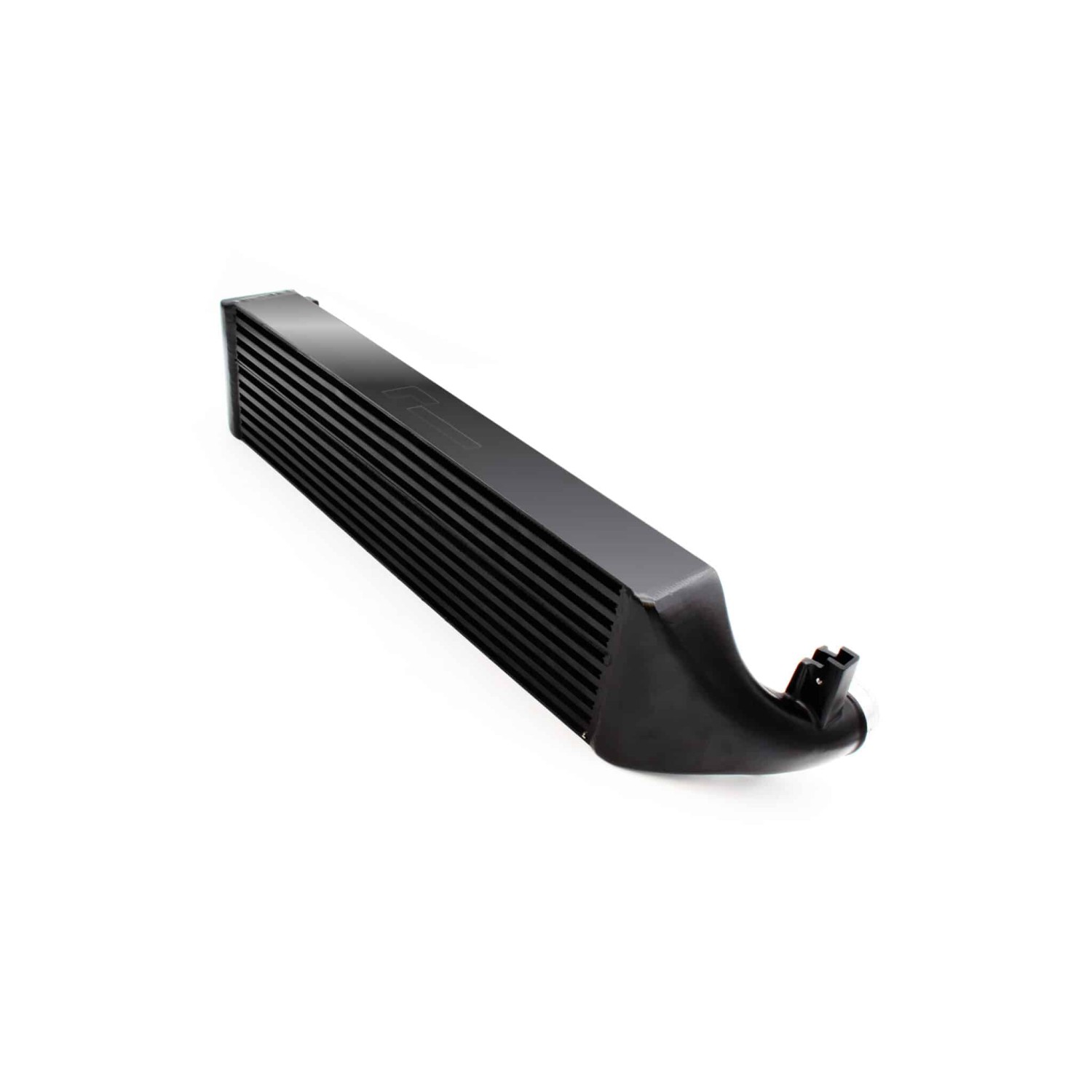

Racingline intercooler for VW Polo VI (AW)/Audi A1 II (GB)

Racingline intercooler for VW Polo GTI VI (AW) and Audi A1 40 TFSI – VWR141001

The original intercooler in the Polo GTI AW and Audi A1 40 TFSI struggles to keep up when the 2.0 TSI engine is placed under greater load. During prolonged full-load operation, intake air temperature rises quickly, causing the engine control unit to reduce ignition advance for protection, while power starts to drop just when you need it most. The Racingline intercooler with a high-performance Plate & Bar core has been specifically designed for the VW Polo GTI AW, AW.2 and Audi A1 40 TFSI to maintain low intake air temperatures and consistent performance.

The intercooler cools compressed air from the turbocharger before it enters the engine. Cooler air is denser and therefore contains more oxygen, enabling more efficient combustion and more reliable power. By providing more effective charge-air cooling during repeated acceleration or lap after lap, this upgrade eliminates one of the major weak points of these vehicles when increasing performance.

What makes this intercooler different

The development goal was to find a balance between the greatest possible cooling and the lowest possible pressure losses. A larger core is only useful if air can still flow efficiently through it; otherwise, system response time may increase. The stepped Plate & Bar core uses tall internal channels for flow at high boost pressure, while cast outlet tanks with integrated air guides reduce turbulence.

• 56% larger core volume compared with the factory intercooler for greater thermal capacity
• 25% larger frontal area for increased airflow during driving
• 60 mm outlets allow direct connection of the original boost hoses or the use of a suitable Racingline boost hose kit
• Direct installation around the original front bumper support – no cutting, modification or drilling required
• Track-tested design for all stages of modification, from standard to software-tuned vehicles

Practical benefits

On a standard or software-upgraded Polo GTI or A1 40 TFSI, the most noticeable benefit is greater consistency of performance. The original intercooler quickly becomes heat-soaked during dynamic driving, making the second or third hard acceleration noticeably less effective than the first. With the Racingline intercooler, intake air temperature remains lower and drops quickly, allowing the vehicle to deliver the same performance repeatedly without needing to cool down. This is important during track driving, longer motorway journeys in warm weather and with all modified engines.

Technical specifications

• Core type: Plate & Bar, stepped design
• Racingline core volume: 10,039.737 mm³
• Original core volume: 6,440.000 mm³
• Racingline frontal area: 100,200 mm²
• Original core frontal area: 80,500 mm²
• Outlet size: 60 mm
• Weight: 10.00 kg

Racingline components are developed under racing conditions and adapted for road use, making them suitable for both everyday use and track driving.

Suitable for: Audi A1 II (GB), VW Polo VI (AW).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
