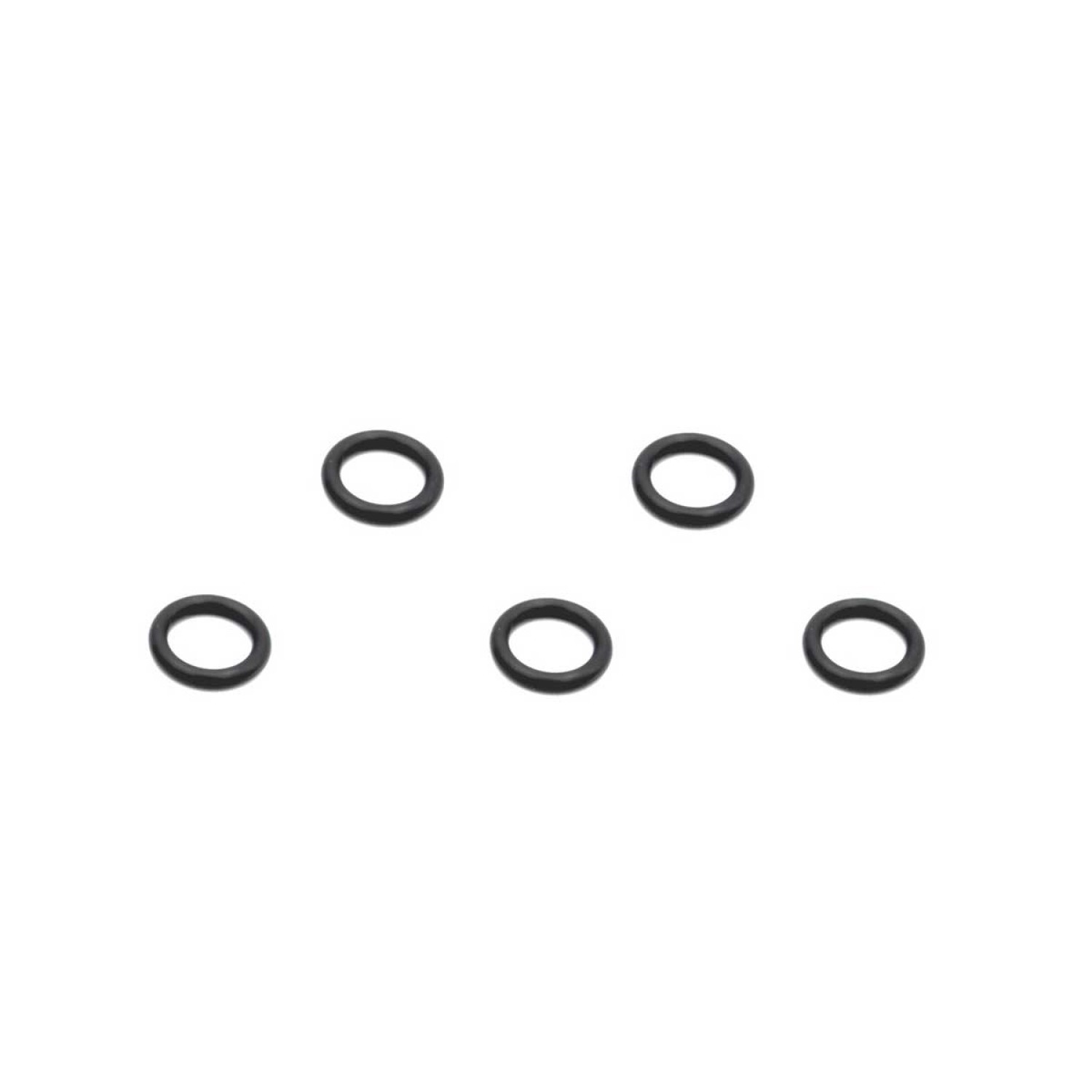

The kit contains five replacement O-rings designed exclusively for the Racingline Tru-Lock magnetic sump plug fitted to vehicles with a plastic oil sump. Replacing the O-ring at every oil change is a simple way to ensure a clean, leak-free seal between the plug and the oil sump.
The rubber seal on each sump plug becomes compressed and hard over time due to repeated temperature cycles. Fitting a new O-ring at every service keeps the seal flexible, helping to prevent slow oil leaks and thread damage in the plastic oil sump caused by overtightening the plug.
Main features
- Set of five O-rings: enough for several oil changes, so you always have a fresh seal to hand.
- Precise fit: manufactured to the exact specification of the Racingline EA888.3 magnetic sump plug.
- Oil-resistant material: durable rubber compound suitable for high engine temperatures and prolonged contact with engine oil.
- Quick installation: the O-ring fits directly onto the plug, with no special tools required.
Compatibility
The O-rings are compatible only with the Racingline Tru-Lock magnetic sump plug for plastic oil sumps. They are not universal sealing washers and must not be used with original oil sump plugs or other replacement plugs.
The Racingline magnetic sump plug itself is designed for the popular EA888.3 engines in VW, Audi, SEAT and Škoda vehicles.
Servicing recommendation
Fit a new O-ring every time you remove the sump plug. It is a small component that plays an important role in keeping the engine oil where it should be.
Suitable for: Audi A1 I (8X) / II (GB), Audi A3 III (8V), Audi A4 III (B8) / IV (B9), Audi A5 Sportback II (F5A/F5F), Audi A5 I (B8) / II (F5/F53) / II (F57/F5E), Audi A6 VII (4G/C7), Audi A7 I (4G), Audi Q3 I (8U) / II (F3), Audi Q5 I (8R) / II (FY), Audi S1 I (8X), Audi S3 III (8V), Audi TT III (FV) and 16 more (see the table below).
Compatible vehicles (manufacturer data)
Show all 57 vehicles
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A1 | 8X1, 8XK | 2014–2018 | 1.8 TFSI (DAJB), S1 quattro (CWZA) |
| Audi A1 Sportback | 8XA, 8XF | 2014–2018 | 1.8 TFSI (DAJB), S1 quattro (CWZA) |
| Audi A1 Sportback | GBA | 2018–2024 | 40 TFSI (CZPC/DKZC), 40 TFSI (DNND) |
| Audi A3 | 8V1, 8VK | 2012–2017 | 1.8 TFSI (CJSA), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CZPB), 2.0 TFSI quattro (CZPB), S3 quattro (CJXB), S3 quattro (CJXC) … |
| Audi A3 Convertible | 8V7, 8VE | 2013–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI (CNSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI quattro (CNTC), S3 quattro (CJXC/DNUE) |
| Audi A3 Saloon | 8VS, 8VM | 2013–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI (CNSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CHHB), 2.0 TFSI (CZPB/DKZA), 2.0 TFSI quattro (CZPB/DKZA) … |
| Audi A3 Sportback | 8VA, 8VF | 2012–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CZPB/DKZA), 2.0 TFSI quattro (CZPB/DKZA), 40 TFSI quattro (DKZA), S3 quattro (CJXB) … |
| Audi A4 Allroad B8 | 8KH | 2013–2016 | 2.0 TFSI quattro (CNCD) |
| Audi A4 Allroad B9 | 8WH, 8WJ | 2016–2024 | 2.0 TFSI Mild Hybrid quattro (DDWA), 2.0 TFSI quattro (CYMC/CYRB/DLHB), 2.0 TFSI quattro (CYRC), 45 TFSI Mild Hybrid quattro (DKNA), 45 TFSI Mild Hybrid quattro (DMTA) |
| Audi A4 B8 | 8K2 | 2011–2015 | 1.8 TFSI (CJEB), 1.8 TFSI quattro (CJEB), 2.0 TFSI (CNCD), 2.0 TFSI quattro (CNCD) |
| Audi A4 B8 Avant | 8K5 | 2011–2015 | 1.8 TFSI (CJEB), 1.8 TFSI quattro (CJEB), 2.0 TFSI (CNCD), 2.0 TFSI quattro (CNCD) |
| Audi A4 B9 | 8W2, 8WC | 2015–2024 | 1.4 TFSI (CVNA), 2.0 TFSI (CVKB/DBPA), 2.0 TFSI (CYMC/CYRB), 2.0 TFSI (CYRC), 2.0 TFSI quattro (CYMC/CYRB), 2.0 TFSI quattro (CYRC) … |
| Audi A4 B9 Avant | 8W5, 8WD | 2015–2024 | 1.4 TFSI (CVNA), 2.0 TFSI (CVKB/DBPA/DKYA), 2.0 TFSI (CYMC/CYRB), 2.0 TFSI (CYRC), 2.0 TFSI g-tron (CVLA), 2.0 TFSI quattro (CYMC/CYRB) … |
| Audi A5 | 8T3 | 2007–2017 | 1.8 TFSI (CABD/CJEB), 1.8 TFSI (CJEE), 2.0 TFSI (CNCD), 2.0 TFSI (CNCE), 2.0 TFSI quattro (CNCD), 2.0 TFSI quattro (CNCE) |
| Audi A5 | F53, F5P | 2016–2024 | 1.4 TFSI (CVNA), 2.0 TDI (DESA/DETA), 2.0 TDI quattro (DESA/DETA), 2.0 TFSI (CVKB/DKYA), 2.0 TFSI (CYRB), 2.0 TFSI quattro (CYMC/CYRB/DLHB) … |
| Audi A5 Convertible | 8F7 | 2011–2017 | 1.8 TFSI (CJEB), 1.8 TFSI (CJEE), 2.0 TFSI (CNCD), 2.0 TFSI (CNCE), 2.0 TFSI quattro (CNCD), 2.0 TFSI quattro (CNCE) |
| Audi A5 Convertible | F57, F5E | 2016–2024 | 2.0 TFSI (CVKB/DKYA), 2.0 TFSI (CYRB), 2.0 TFSI quattro (CYMC/CYRB/DLHB), 40 TFSI Mild Hybrid (DEMA/DKYA/DLVA), 45 TFSI Mild Hybrid (DKNA), 45 TFSI Mild Hybrid quattro (DKNA) |
| Audi A5 Sportback | 8TA | 2011–2017 | 1.8 TFSI (CJEB), 1.8 TFSI (CJED), 1.8 TFSI (CJEE), 2.0 TFSI (CNCD), 2.0 TFSI (CNCE), 2.0 TFSI quattro (CNCD) … |
| Audi A5 Sportback | F5A, F5F | 2016–2024 | 2.0 TDI (DESA/DETA), 2.0 TDI quattro (DESA/DETA), 2.0 TFSI (CVKB/DKYA), 2.0 TFSI (CYRB), 2.0 TFSI g-tron (CVLA), 2.0 TFSI quattro (CYMC/CYRB/DLHB) … |
| Audi A6 C7 | 4G2, 4GC | 2014–2018 | 1.8 TFSI (CYGA), 2.0 TFSI (CYNB/CYPA), 2.0 TFSI quattro (CYNB/CYPA), 2.0 TFSI quattro (CYPB) |
| Audi A6 C7 Avant | 4G5, 4GD | 2014–2018 | 1.8 TFSI (CYGA), 2.0 TFSI (CYNB/CYPA), 2.0 TFSI quattro (CYPA), 2.0 TFSI quattro (CYPB) |
| Audi A7 Sportback | 4GA, 4GF | 2014–2018 | 2.0 TFSI (CYPA) |
| Audi Q3 | 8UB, 8UG | 2014–2018 | 2.0 TFSI quattro (CULB), 2.0 TFSI quattro (CULC) |
| Audi Q3 | F3B | 2018–2024 | 35 TDI (DFGA/DTSA/DTSB/DXPA), 35 TDI quattro (DFGA/DTSA/DTSB), 40 TFSI quattro (DKTC), 45 TFSI quattro (DKTA), 45 TFSI quattro (DNPA) |
| Audi Q5 | 8RB | 2009–2017 | 2.0 TFSI quattro (CDNB/CNCB), 2.0 TFSI quattro (CNCD), 2.0 TFSI quattro (CNCE) |
| Audi Q5 | FYB, FYG | 2016–2024 | 2.0 TFSI quattro (DAXB/DAYB/DJYA), 2.0 TFSI quattro (DAXC), 40 TFSI Mild Hybrid quattro (DMSA), 50 TFSI e quattro (DLGA), 50 TFSI e quattro (DRYA), 55 TFSI e quattro (DLGA) |
| Audi Q5 Sportback | FYT | 2021–2024 | 40 TFSI Mild Hybrid quattro (DMSA), 50 TFSI e quattro (DRYA) |
| Audi TT | FV3, FVP | 2014–2024 | 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS quattro (CJXG) |
| Audi TT Roadster | FV9, FVR | 2014–2024 | 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS TFSI quattro (CJXG) |
| CUPRA Ateca | KH7, KHP, KBP | 2018–2024 | 2.0 TSI 4Drive (DNFC/DNUE) |
| SEAT IBIZA Mk IV SC | 6J1, 6P5 | 2015–2016 | 1.8 TSI Cupra (DAJA) |
| SEAT Leon | 5F1 | 2013–2020 | 1.8 TSI (CJSA), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC) |
| SEAT Leon Sc | 5F5 | 2013–2018 | 1.8 TSI (CJSA), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH) |
| SEAT Leon St | 5F8 | 2013–2020 | 1.8 TSI (CJSA), 1.8 TSI 4Drive (CJSA/CJSB), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC) |
| SEAT LEON ST Estate Van | 5F8 | 2013–2018 | 1.8 TFSI (CJSA) |
| SEAT Tarraco | KN2 | 2018–2024 | 2.0 TSI 4Drive (DKZA) |
| Skoda Kodiaq I | NS6, NS7, NV7 | 2016–2024 | 2.0 TDI (DBGC/DFGA/DTSB), 2.0 TSI 4×4 (CZPA), 2.0 TSI 4×4 (DKZA) |
| Skoda Octavia III | 5E3, NL3, NR3 | 2012–2020 | 1.8 TSI (CJSA), 1.8 TSI 4×4 (CJSB), 2.0 TSI (DKZA), 2.0 TSI 4×4 (DKZA), 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB) … |
| Skoda OCTAVIA III Combi | 5E5, 5E6 | 2012–2020 | 1.8 TSI (CJSA/CJSB), 1.8 TSI 4×4 (CJSB), 2.0 TSI (DKZA), 2.0 TSI 4×4 (DKZA), 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB) … |
| Skoda Superb III | 3V3 | 2015–2024 | 1.4 TSI (CZCA), 1.4 TSI (CZDA/CZEA), 1.4 TSI 4×4 (CZEA), 1.8 TSI (CJSA/CJSC), 2.0 TFSI (CHHB), 2.0 TFSI 4×4 (CJXA/DNFE) |
| Skoda SUPERB III Estate | 3V5 | 2015–2024 | 1.4 TSI (CZCA), 1.4 TSI (CZDA/CZEA), 1.4 TSI 4×4 (CZEA), 1.8 TSI (CJSA/CJSC), 2.0 TSI (CHHB), 2.0 TSI 4×4 (CJXA/DNFE) |
| Volkswagen Arteon | 3H7, 3H8 | 2017–2024 | 2.0 TSI (CZPB/DKZA), 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSI 4motion (DLRB/DNUA) |
| Volkswagen Arteon Shooting Brake | 3H9 | 2020–2024 | 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSi 4motion (DNUA) |
| Volkswagen Beetle | 5C1, 5C2 | 2014–2018 | 2.0 TSI (CULC) |
| Volkswagen BEETLE Convertible | 5C7, 5C8 | 2014–2018 | 2.0 TSI (CULC) |
| Volkswagen GOLF ALLTRACK VII Estate | BA5, BV5 | 2014–2020 | 1.8 TSI 4motion (CJSB) |
| Volkswagen Golf VII | 5G1, BQ1, BE1, BE2 | 2013–2020 | 2.0 GTI (CHHA), 2.0 GTI (CHHB/CNTC/CXCB/CXDA), 2.0 GTI (CNTA/CXCA), 2.0 GTI (DKTB/DLBA), 2.0 GTI Clubsport (CJXE), 2.0 GTI Clubsport S (CJXG) … |
| Volkswagen GOLF VII Estate | BA5, BV5 | 2015–2020 | 2.0 R 360S 4motion (CJXC), 2.0 R 4motion (CJXB), 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC), 2.0 R 4motion (CJXG/DJHA) |
| Volkswagen PASSAT ALLTRACK B8 Estate | 3G5, CB5 | 2015–2024 | 2.0 TSI 4motion (CHHB) |
| Volkswagen Passat B8 | 3G2, CB2 | 2015–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TSI (CHHB/CXDA), 2.0 TSI 4motion (CJXA/DNFE) |
| Volkswagen PASSAT B8 Estate | 3G5, CB5 | 2014–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TSI (CHHB/CXDA), 2.0 TSI 4motion (CJXA/DNFE) |
| Volkswagen Polo V | 6R1, 6C1 | 2014–2017 | 1.8 GTI (DAJA/DAJB), 1.8 GTI 230 (DAJA) |
| Volkswagen Polo VI | AW1, BZ1, AE1, BZ3 | 2017–2024 | 2.0 GTI (CZPC/DKZC) |
| Volkswagen T-Roc | A11, D11 | 2017–2024 | 2.0 R 4motion (DNFC/DNUE), 2.0 TSI 4motion (CZPB/DKZA) |
| Volkswagen Tiguan | AD1, AX1 | 2016–2024 | 2.0 TSI 4motion (CHHB), 2.0 TSI 4motion (CZPA) |
| Volkswagen Tiguan Allspace | BW2, BJ2 | 2017–2024 | 2.0 TSI 4motion (CXDA/DNJA), 2.0 TSI 4motion (DGVA), 2.0 TSI 4motion (DNLA/DNNA), 2.0 TSI 4motion (DNPA) |
| Volkswagen Touran | 5T1 | 2015–2024 | 1.8 TSI (CJSA) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
