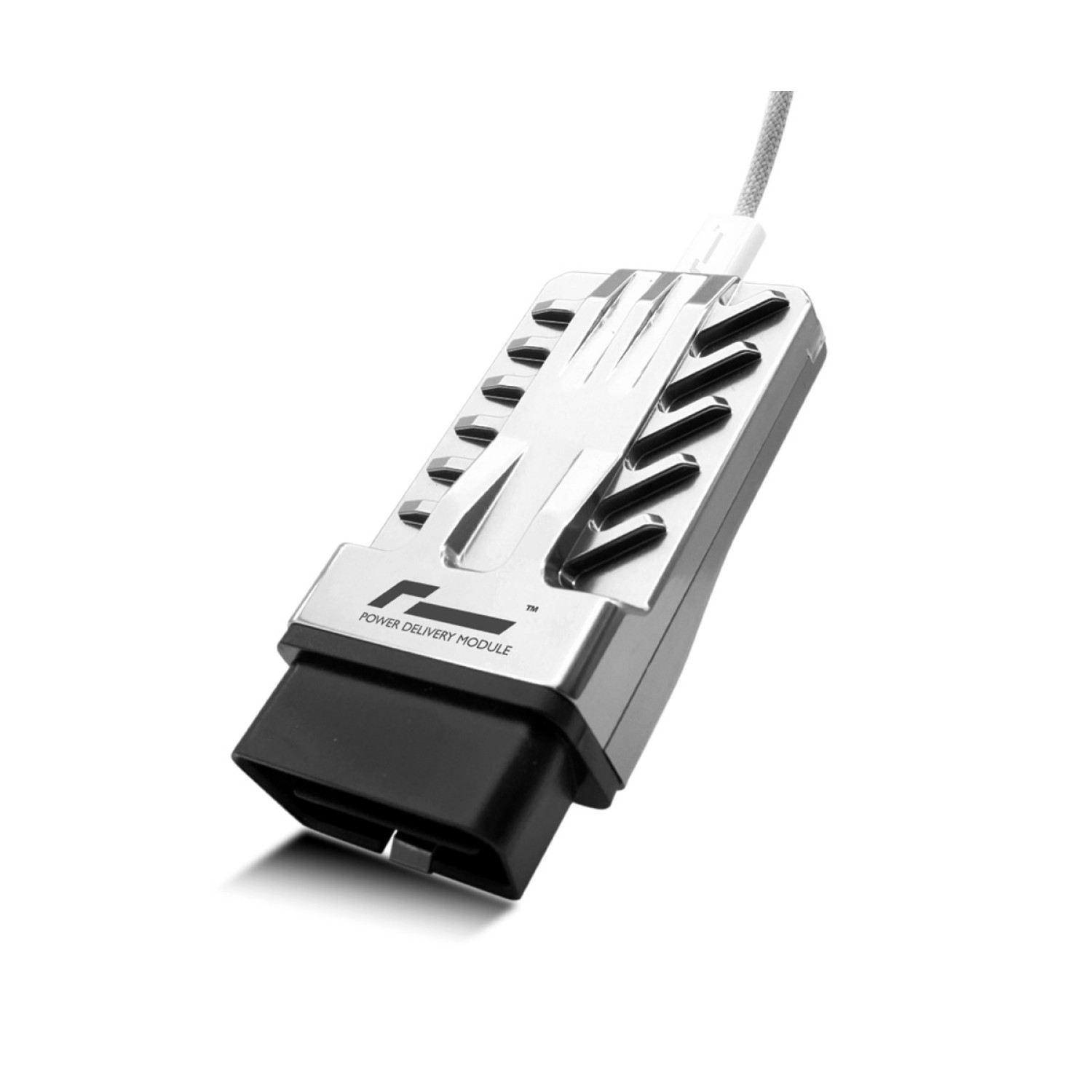

Racingline Power Delivery Module (PDM) provides direct access to Racingline software for performance optimisation. It allows you to program a supported engine control unit (ECU) and transmission control unit (TCU) at home, in your garage or at another location with the appropriate equipment.
Important: the kit includes only the PDM hardware. Software and calibrations are not included and must be purchased separately as digital downloads.
How the PDM works
- Install the appropriate software on a laptop running Windows 10 or 11.
- Prepare and stabilise the vehicle according to the included instructions.
- Select the appropriate calibration and upload it to the ECU or TCU.
- The calibration can later be removed, upgraded or replaced.
Benefits
- Return to the standard software before servicing or selling the vehicle.
- Upgrade between different software stages as the vehicle is further modified.
- Switch between calibrations for different fuel octane ratings, such as 98 and 100 RON.
- Programming without visiting a workshop or transporting the vehicle to a tuner.
Required equipment
- A laptop running Windows 10 or 11, with a USB port and reliable power supply.
- A secure wired internet connection or very stable high-speed Wi-Fi.
- A battery support charger with a rated current of at least 20 A; CTEK is recommended.
- Mains power at the vehicle’s location.
A stable internet connection and battery support power are essential during programming. Interrupting the process can damage the ECU, so the Racingline instructions must be followed precisely.
Supported engines
The PDM is currently not compatible with all types of ECU. It supports the following engine families from the VW Group:
- 2.0 TSI EA888 Gen.4: newer Golf R, Cupra, Audi S3 and related models.
- 2.0 TSI EA888 Gen.3: Golf R and GTI on the MQB platform, Audi S3, Cupra and related models.
- 2.5 TFSI EA855 EVO: Audi RS3 and TT RS.
PDM weight: 1.00 kg.
Suitable for: Audi S3 III (8V), Audi SQ2 I (GA), Audi TT III (FV), Audi Tts III (FV), Cupra Ateca I (KH7), Cupra Formentor I (KM7), Cupra Leon IV (KL1), SEAT Leon III (5F) / III (5F1), Škoda Octavia III (5E3) / III (5E5/5E6) / IV (NX3) / IV (NX5), Škoda Superb III (3V3) / III (3V5), VW Arteon I (3H), VW Golf VII (5G1) / VIII (CD1) / VIII (CG5) and 1 more (see the table below).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | 8V1, 8VK | 2012–2017 | S3 quattro (CJXB), S3 quattro (CJXC), S3 quattro (CJXD/DJHB), S3 quattro (CJXF), S3 quattro (CJXG/DJHA) |
| Audi A3 Convertible | 8V7, 8VE | 2014–2020 | S3 quattro (CJXC/DNUE), S3 quattro (DJHA) |
| Audi A3 Saloon | 8VS, 8VM | 2013–2020 | S3 quattro (CJXB), S3 quattro (CJXC/DNUE), S3 quattro (CJXD/DJHB), S3 quattro (CJXF), S3 quattro (CJXG/DJHA), S3 quattro (CYFB/DJJA/DLRA) |
| Audi A3 Sportback | 8VA, 8VF | 2012–2020 | S3 quattro (CJXB), S3 quattro (CJXC/DNUE), S3 quattro (CJXD/DJHB), S3 quattro (CJXF), S3 quattro (CJXG/DJHA) |
| Audi Q2 | GAB, GAG | 2018–2024 | SQ2 TFSI quattro (DNFC/DNUE) |
| Audi TT | FV3, FVP | 2014–2024 | 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS quattro (CJXG), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CYFB/DLRA), 2.0 TTS TSI quattro (DNUF) … |
| Audi TT Roadster | FV9, FVR | 2014–2024 | 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CJXG), 2.0 TTS TFSI quattro (DNUF), 2.5 RS TFSI quattro (DAZA/DNWA) … |
| CUPRA Ateca | KH7, KHP, KBP | 2018–2024 | 2.0 TSI 4Drive (DNFC/DNUE) |
| CUPRA Formentor | KM7, KMP | 2020–2024 | 2.0 TSI (DNPA), 2.0 TSI 4Drive (DNFB) |
| CUPRA Leon | KL1, KU1, KUG | 2021–2024 | 2.0 TSI (DNPA), 2.0 TSI VZ (DNFC) |
| SEAT Leon | 5F1 | 2013–2020 | 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC), 2.0 Cupra R (CJXG) |
| SEAT Leon Sc | 5F5 | 2013–2018 | 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH) |
| SEAT Leon St | 5F8 | 2013–2020 | 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC), 2.0 Cupra 4Drive (CJXC/DNUE) |
| Skoda Octavia III | 5E3, NL3, NR3 | 2013–2020 | 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB), 2.0 TSI RS (DHGA/DKTB/DLBA) |
| Skoda OCTAVIA III Combi | 5E5, 5E6 | 2012–2020 | 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB), 2.0 TSI RS (DHGA/DKTB/DLBA) |
| Skoda Octavia IV | NX3, NN3, PV3 | 2020–2024 | 2.0 TSI RS (DLBA/DNPA) |
| Skoda OCTAVIA IV Combi | NX5, PV5 | 2020–2024 | 2.0 TSI RS (DLBA/DNPA) |
| Skoda Superb III | 3V3 | 2015–2024 | 2.0 TFSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Skoda SUPERB III Estate | 3V5 | 2015–2024 | 2.0 TSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Volkswagen Arteon | 3H7, 3H8 | 2017–2024 | 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSI 4motion (DLRB/DNUA), 2.0 TSI R 4motion (DNFG) |
| Volkswagen Golf VII | 5G1, BQ1, BE1, BE2 | 2013–2020 | 2.0 GTI (CHHA), 2.0 GTI (CHHB/CNTC/CXCB/CXDA), 2.0 GTI (CNTA/CXCA), 2.0 GTI (DKTB/DLBA), 2.0 GTI Clubsport (CJXE), 2.0 GTI Clubsport S (CJXG) … |
| Volkswagen GOLF VII Estate | BA5, BV5 | 2015–2020 | 2.0 R 4motion (CJXB), 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC), 2.0 R 4motion (CJXG/DJHA) |
| Volkswagen Golf VIII | CD1, DA1 | 2020–2024 | 2.0 GTI (DLBA/DNPA/DRNA/DZMA), 2.0 GTI (DNPD), 2.0 GTI Clubsport (DNFC), 2.0 TSI R 4motion (DNFF/DSFD), 2.0 TSI R 4motion (DNFG/DSFE/DSFF) |
| Volkswagen GOLF VIII Variant | CG5, DB5 | 2021–2024 | 2.0 TSI R 4motion (DNFG) |
| Volkswagen T-Roc | A11, D11 | 2019–2024 | 2.0 R 4motion (DNFC/DNUE) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
