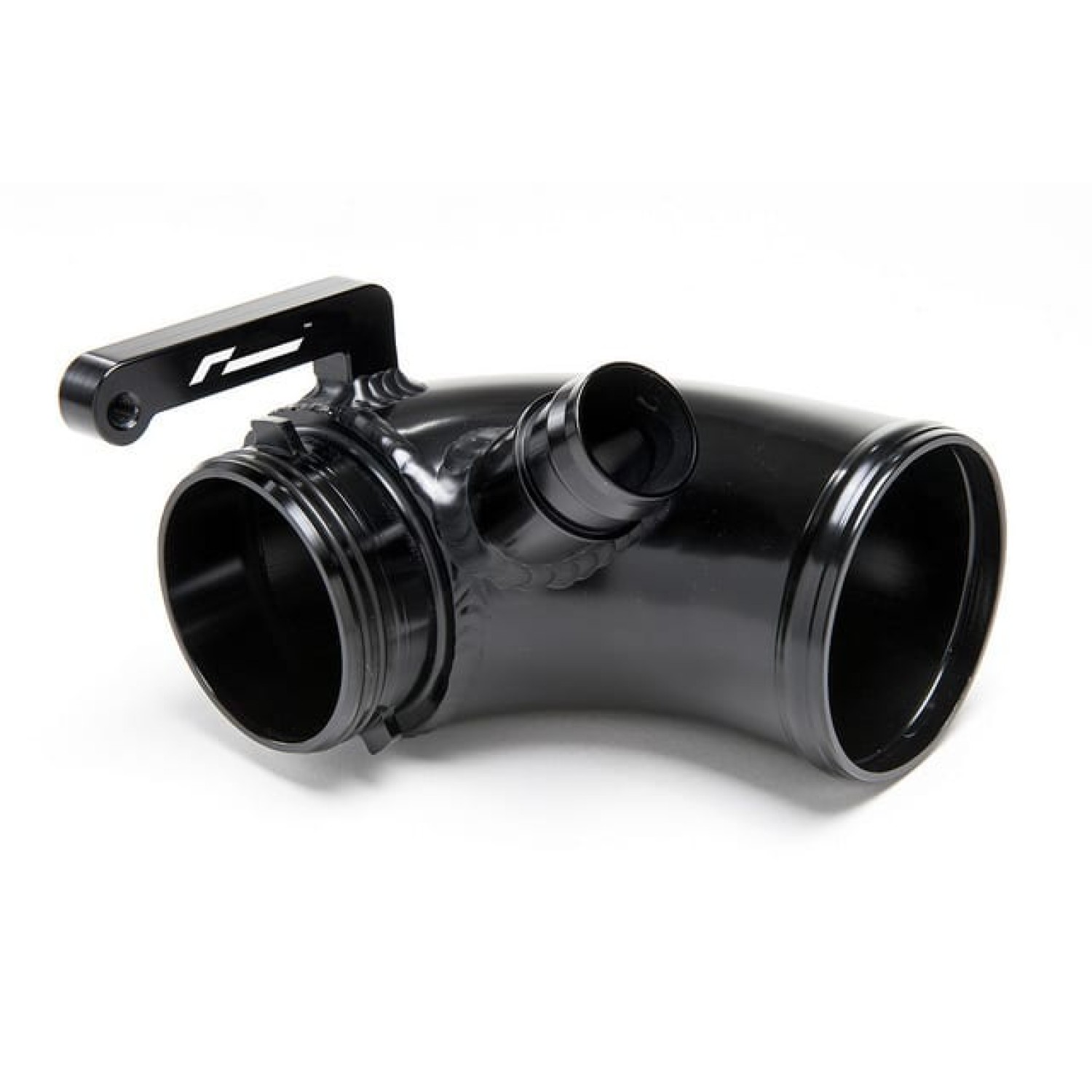

Racingline R600 high-flow turbo inlet pipe – EA888 Gen.3
The Racingline high-flow turbo inlet pipe is the final component of the R600 intake system and is designed to remove the last major restriction in the intake path of EA888 Gen.3 1.8/2.0 TSI engines. The factory plastic pipe narrows significantly just before the turbocharger, so the upgraded intake system can remain restricted at this point.
The standard system uses a plastic pipe with a ribbed, bellows-style section that narrows into a small plastic inlet towards the turbocharger. This design is suitable for mass production and component packaging, but is not optimal for airflow. When fitting a high-flow intake system, this pipe can therefore become the main bottleneck.
Designed for smoother and faster airflow
Racingline CNC-machines the pipe from a single piece of T6-6061 aerospace aluminium. The surface is finished in glossy Midnight Black anodising and features a laser-engraved logo. The internal diameter is increased from the standard 62.5 mm to 76 mm, giving the turbocharger a larger and smoother air inlet.
An integrated velocity stack is formed inside the pipe to guide the air and help maintain airflow speed all the way to the compressor wheel. The result is sharper throttle response, faster boost build-up and reduced turbo lag during acceleration.
- Internal diameter increased from 62.5 mm to 76 mm for improved airflow
- Integrated velocity stack for more efficient airflow and faster boost response
- CNC-machined from a single piece of T6-6061 aerospace aluminium
- Glossy Midnight Black anodised finish with a laser-engraved Racingline logo
Why it matters
If a Racingline R600 intake system is already fitted to the vehicle or its installation is planned, this pipe allows the complete system to deliver air more efficiently. Without it, the standard plastic intake pipe continues to restrict airflow to the turbocharger. It forms the final section of the intake path between the air filter and the turbocharger.
Important for 1.8 TFSI engines and Audi S1
When fitting this to a SEAT Ibiza 1.8 TFSI, Volkswagen Polo 1.8 TFSI or Audi S1 2.0 TFSI, an additional engine breather pipe (PCV) is required to complete the installation. The required part number is 06K 103 213A. This part is necessary for correct installation on the listed models.
Technical specifications
- Material: T6-6061 aerospace aluminium, machined from a single piece
- Finish: glossy Midnight Black anodised, laser-engraved logo
- Standard internal diameter: 62.5 mm
- Racingline internal diameter: 76 mm
- Internal feature: integrated velocity stack for guiding airflow
- Engine: EA888 Gen.3 2.0 TSI (MQB)
- Weight: 0.40 kg
Suitable for: Audi A3 III (8V), Audi S1 I (8X), Audi S3 III (8V), Audi SQ2 I (GA), Audi TT III (FV), Audi Tts III (FV), Cupra Ateca I (KH7), SEAT Ibiza IV (6J1/6P5), SEAT Leon III (5F) / III (5F1), Škoda Octavia III (5E3) / III (5E5/5E6), Škoda Superb III (3V3) / III (3V5), VW Arteon I (3H) and 4 more (see the table below).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A1 | 8X1, 8XK | 2014–2018 | S1 quattro (CWZA) |
| Audi A1 Sportback | 8XA, 8XF | 2014–2018 | S1 quattro (CWZA) |
| Audi A3 | 8V1, 8VK | 2012–2017 | 1.8 TFSI (CJSA), 1.8 TFSI quattro (CJSB), S3 quattro (CJXB), S3 quattro (CJXC), S3 quattro (CJXD/DJHB), S3 quattro (CJXF) … |
| Audi A3 Convertible | 8V7, 8VE | 2013–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI quattro (CNTC), S3 quattro (CJXC/DNUE), S3 quattro (DJHA) |
| Audi A3 Saloon | 8VS, 8VM | 2013–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI (CNSB), 1.8 TFSI quattro (CJSB), 2.0 TFSI (CHHB), S3 quattro (CJXB), S3 quattro (CJXC/DNUE) … |
| Audi A3 Sportback | 8VA, 8VF | 2012–2020 | 1.8 TFSI (CJSA/CJSB), 1.8 TFSI quattro (CJSB), S3 quattro (CJXB), S3 quattro (CJXC/DNUE), S3 quattro (CJXD/DJHB), S3 quattro (CJXF) … |
| Audi Q2 | GAB, GAG | 2018–2020 | SQ2 TFSI quattro (DNFC/DNUE) |
| Audi TT | FV3, FVP | 2014–2026 | 1.8 TFSI (CJSA/CJSB), 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS quattro (CJXG), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CYFB/DLRA) |
| Audi TT Roadster | FV9, FVR | 2014–2026 | 1.8 TFSI (CJSA/CJSB), 2.0 TFSI (CHHC), 2.0 TFSI quattro (CHHC), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CJXG), 2.0 TTS TFSI quattro (DNUF) |
| CUPRA Ateca | KH7, KHP, KBP | 2018–2020 | 2.0 TSI 4Drive (DNFC/DNUE) |
| SEAT IBIZA Mk IV SC | 6J1, 6P5 | 2015–2016 | 1.8 TSI Cupra (DAJA) |
| SEAT Leon | 5F1 | 2013–2020 | 1.8 TSI (CJSA), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC), 2.0 Cupra R (CJXG) |
| SEAT Leon Sc | 5F5 | 2013–2018 | 1.8 TSI (CJSA), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH) |
| SEAT Leon St | 5F8 | 2013–2020 | 1.8 TSI (CJSA), 1.8 TSI 4Drive (CJSA/CJSB), 2.0 Cupra (CJXA), 2.0 Cupra (CJXC), 2.0 Cupra (CJXE), 2.0 Cupra (CJXH/DNUC) … |
| Skoda Octavia III | 5E3, NL3, NR3 | 2012–2020 | 1.8 TSI (CJSA), 1.8 TSI 4×4 (CJSB), 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB), 2.0 TSI RS (DHGA/DKTB/DLBA) |
| Skoda OCTAVIA III Combi | 5E5, 5E6 | 2012–2020 | 1.8 TSI (CJSA/CJSB), 1.8 TSI 4×4 (CJSB), 2.0 TSI RS (CHHA), 2.0 TSI RS (CHHB), 2.0 TSI RS (DHGA/DKTB/DLBA) |
| Skoda Superb III | 3V3 | 2015–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TFSI (CHHB), 2.0 TFSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Skoda SUPERB III Estate | 3V5 | 2015–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TSI (CHHB), 2.0 TSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Volkswagen Arteon | 3H7, 3H8 | 2017–2020 | 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSI 4motion (DLRB/DNUA) |
| Volkswagen Golf VII | 5G1, BQ1, BE1, BE2 | 2013–2020 | 2.0 GTI (CHHA), 2.0 GTI (CHHB/CNTC/CXCB/CXDA), 2.0 GTI (CNTA/CXCA), 2.0 GTI (DKTB/DLBA), 2.0 GTI Clubsport (CJXE), 2.0 GTI Clubsport S (CJXG) … |
| Volkswagen GOLF VII Estate | BA5, BV5 | 2015–2020 | 2.0 R 360S 4motion (CJXC), 2.0 R 4motion (CJXB), 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC), 2.0 R 4motion (CJXG/DJHA) |
| Volkswagen Passat B8 | 3G2, CB2 | 2015–2024 | 2.0 TSI (CHHB/CXDA), 2.0 TSI 4motion (CJXA/DNFE), 2.0 TSI 4motion (DNUA) |
| Volkswagen PASSAT B8 Estate | 3G5, CB5 | 2014–2024 | 1.8 TSI (CJSA/CJSC), 2.0 TSI (CHHB/CXDA), 2.0 TSI 4motion (CJXA/DNFE), 2.0 TSI 4motion (DNUA) |
| Volkswagen Polo V | 6R1, 6C1 | 2014–2017 | 1.8 GTI (DAJA/DAJB), 1.8 GTI 230 (DAJA) |
| Volkswagen T-Roc | A11, D11 | 2019–2020 | 2.0 R 4motion (DNFC/DNUE) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
