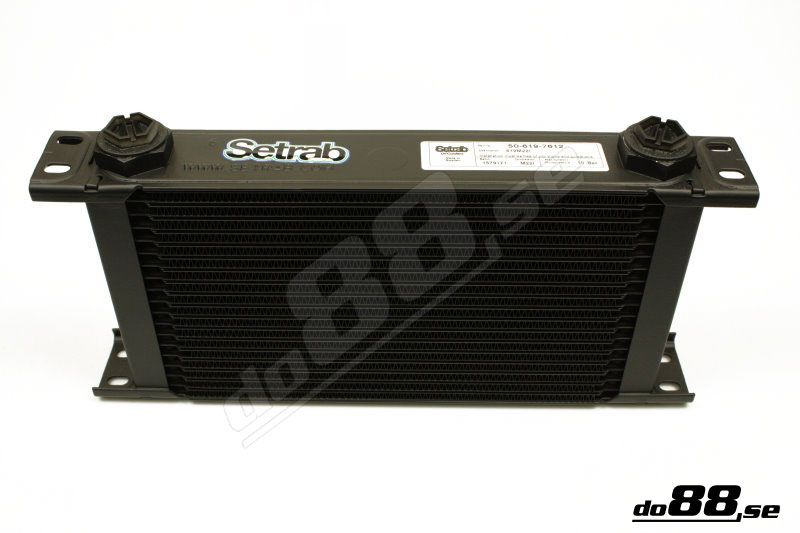

Setrab Pro Line oil cooler 19-row 283 mm

Setrab oil cooler made in Sweden manifactured in high quality aluminium. High cooling efficiency with maximum working pressure of 10 bar. Coated with nice black epoxy paint. Oil cooler developed for cooling both engine oil or automatic transmission fluids.

Rows: 19
Connections: M22 inner, if you prefer other thread see category Mounting
Width (A): 283mm
Height (B):145.6mm
Center-Center between connections (C): 242mm
Center-Center between screw holes (D): 310mm
Total width (E): 330mm

* Dimensions A to E are marked on the picture drawing.
