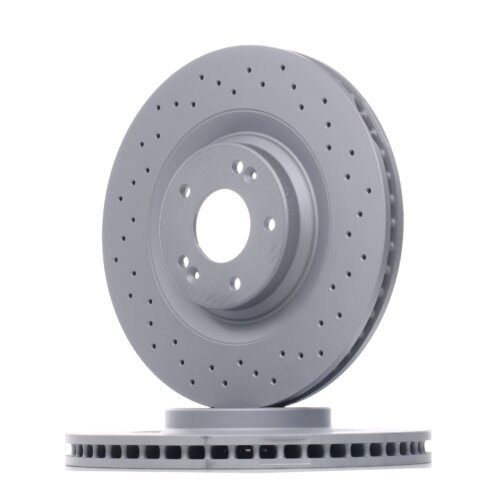

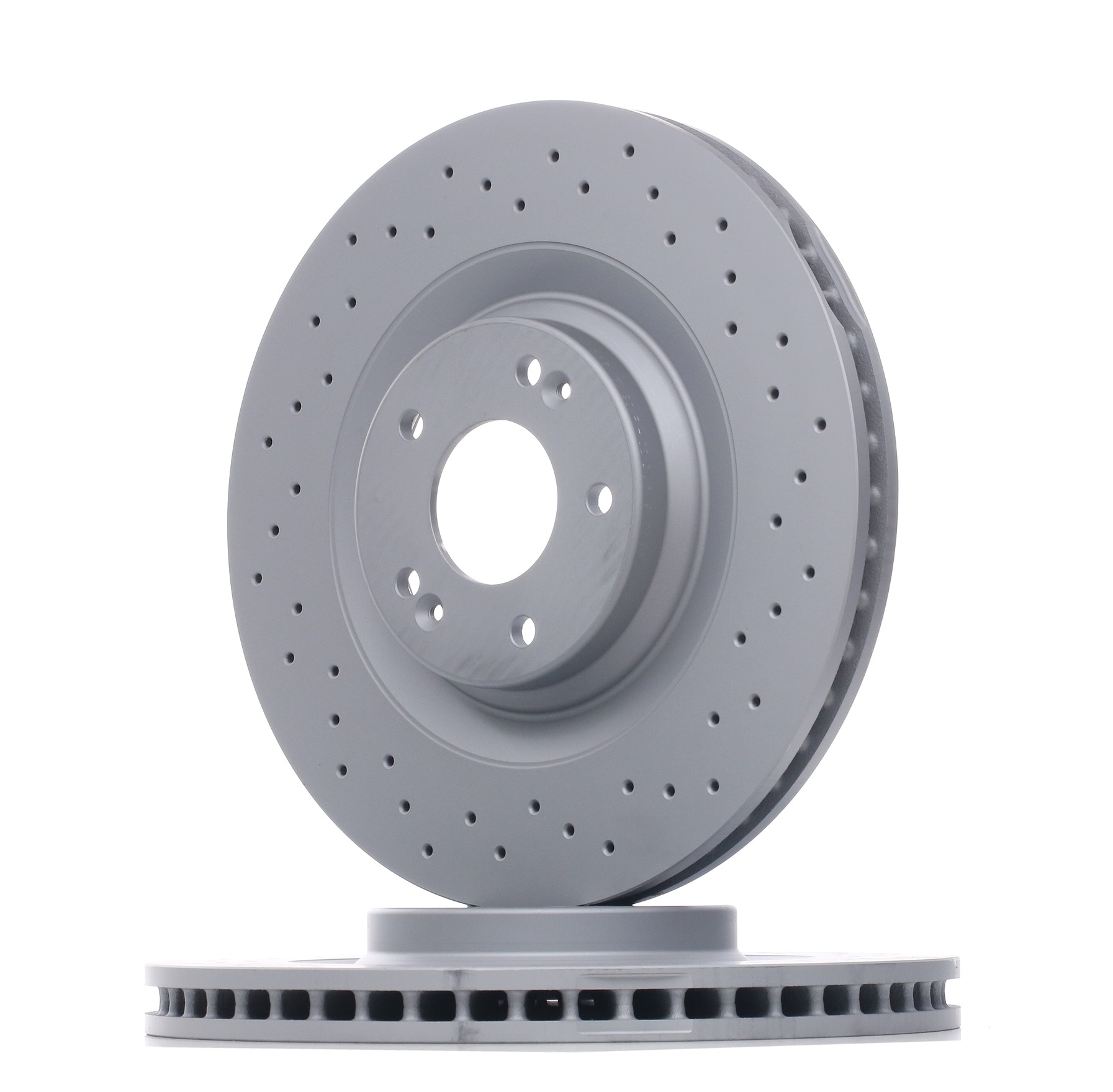

Zimmermann front brake disc 360×30 mm for Hyundai i30 N facelift (2021-) – high-carbon, drilled

Zimmermann front brake disc 360 × 30 mm for Hyundai i30 N facelift (PDE, 2.0 T-GDI, 280 hp, od 2021). The facelift got a 15 mm larger disc than the pre-facelift — more mass and more surface area mean more thermal capacity, which shows exactly when you need the brakes most.

Technical specifications

• Installation: front axle

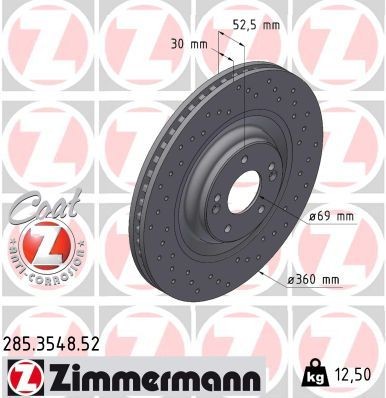

• Dimension: 360 × 30 mm, height 52.5 mm
• Centre bore: Ø 69 mm weight 12.5 kg per piece
• Version: vented and drilled, with anti-corrosion coating
• Material: high-carbon casting — better thermal conductivity and less tendency to crack
• Mounting: 5 × 114, 7/5 holes
• Catalogue number: 285.3548.52 · OE 51712-S0200
• Price applies for one piece — for the front axle you need 2.

What you get

• The larger diameter gives more leverage and thermal capacity than the 345 mm disc
• High-carbon casting copes better with repeated heating and cooling cycles
• The drilled holes vent gases and water from under the pad — consistent bite even after a few laps

Compatibility

• Hyundai i30 N and i30 Fastback N (PDE), 2.0 T-GDI, 280 hp, facelift od 2021; also fits the Hyundai Kona N (OS)
• For the pre-facelift (2017–2020, 275 HP) choose the version 345mm.
• If you are not sure, measure the diameter of the factory disc or check the OE number.

Tip

• Always replace discs in pairs and together with new pads.
• When replacing, we recommend fresh Motul RBF-600 brake fluid and HEL braided lines.
