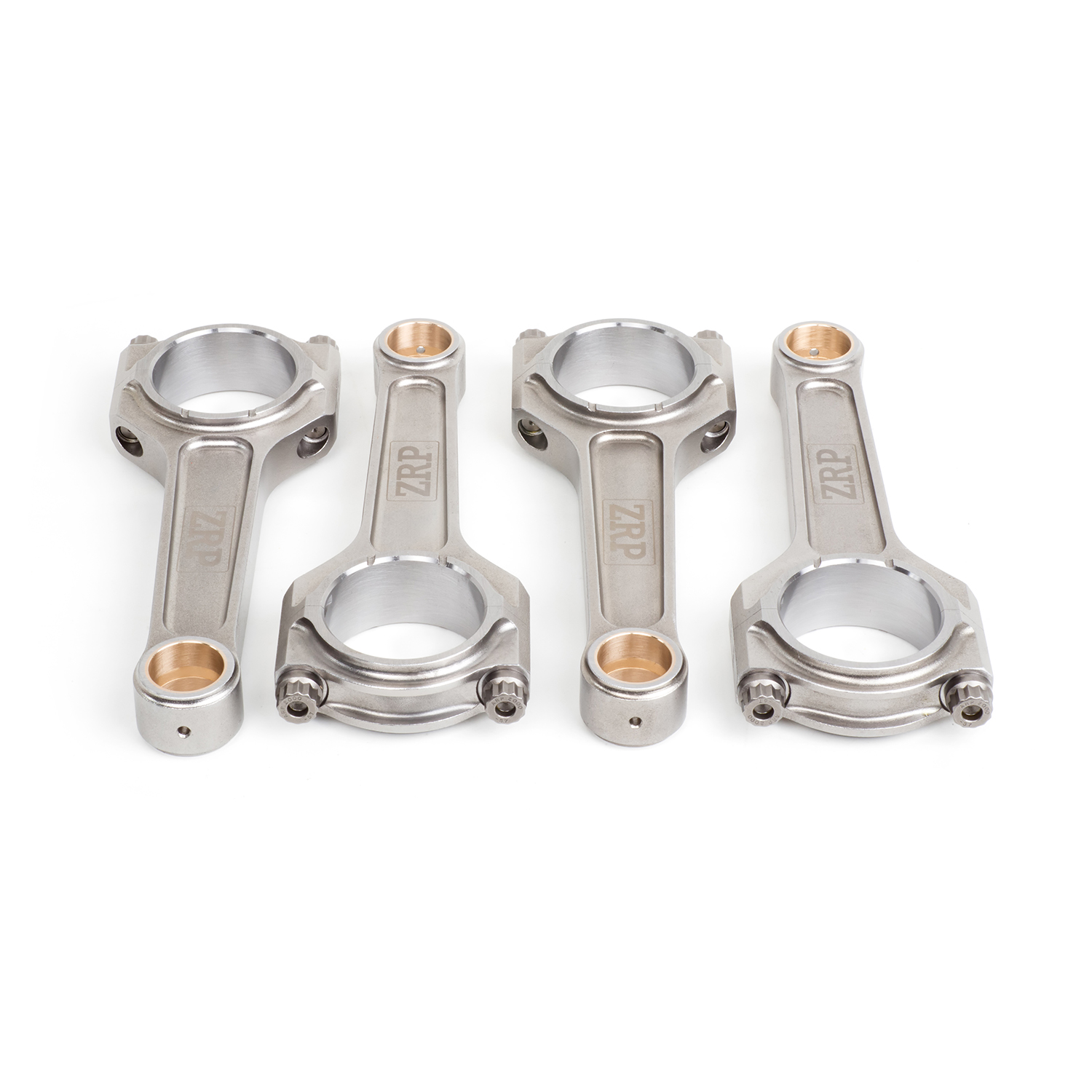

ZRP HD Series forged connecting rods are intended for Mitsubishi 2.0L 4G63 and 4G63T engines. The design features an I-Beam profile and ARP2000 bolts.
According to the supplied specifications, the connecting rod length is 150.00 mm and the piston pin bore diameter is 22.00 mm. Before installation, all dimensions must be checked against the specific engine version and piston assembly.
- Engine: Mitsubishi 2.0L 4G63/4G63T
- Design: HD Series
- Connecting rod profile: I-Beam
- Connecting rod bolts: ARP2000
- Connecting rod length: 150.00 mm
- Piston pin bore: 22.00 mm
Suitable for: Mitsubishi Eclipse I (D2) / II (D3/A), Mitsubishi Galant IV (A16) / V (E1A) / VI (E39A) / VII (E5/E7/E8) / VIII (EA), Mitsubishi L200 III (K60/K70), Mitsubishi L300 II / III (P0V/P1V/P2V), Mitsubishi L400 I (PD/PC/PB/PA), Mitsubishi Lancer VII (CS/A), Mitsubishi Outlander I (CU/W), Mitsubishi Space Runner I (N1/N2) / II (N6), Mitsubishi Space Wagon I (D0) / II (N30) / III (N50), Mitsubishi Starion I (A18), Mitsubishi Tredia I (A21).
