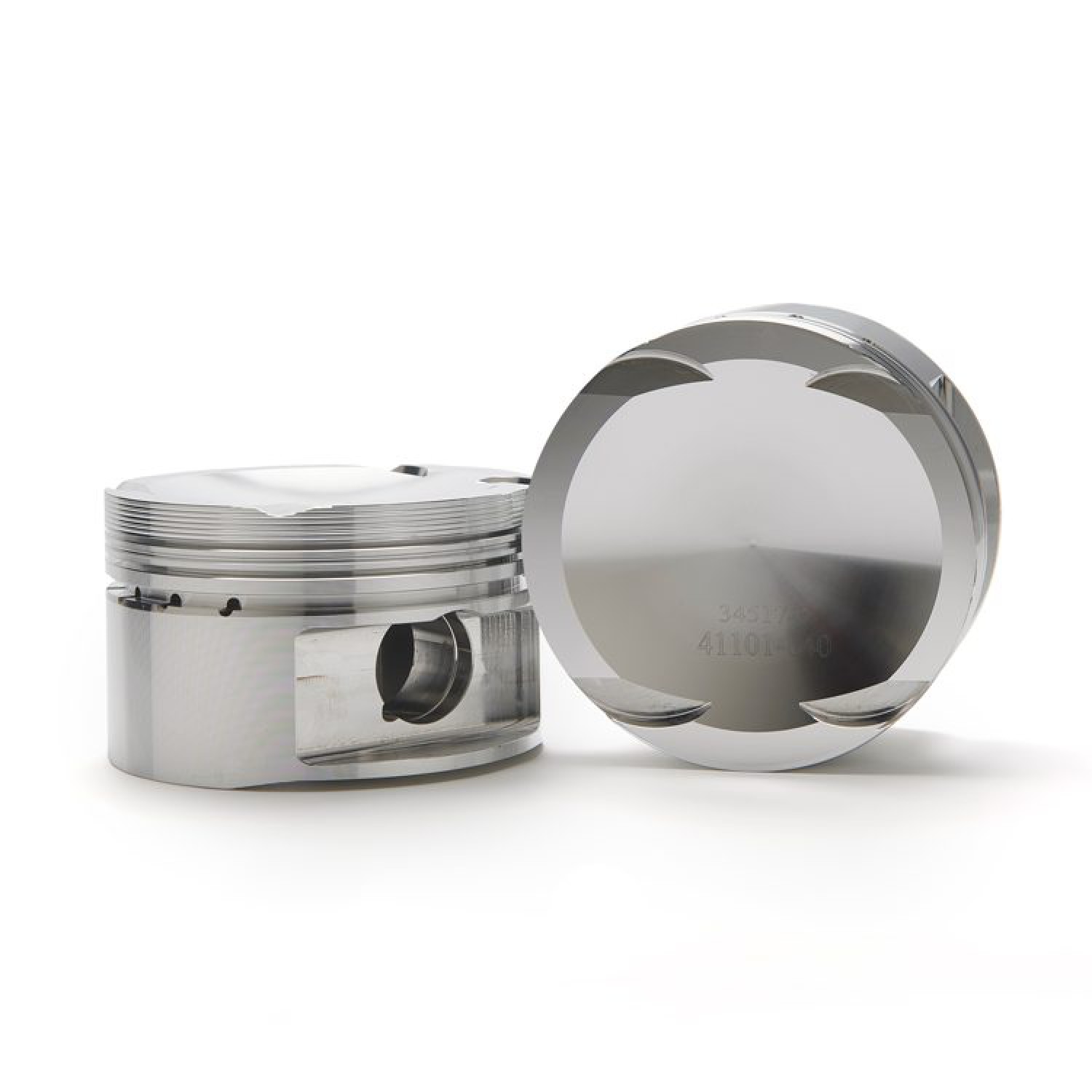

ZRP forged pistons for BMW 2.5L M52 Single Vanos

ZRP forged pistons for the BMW 2.5L M52 Single Vanos engine. According to the supplier’s data, versions with a bore of 84.00 mm, 84.50 mm or 85.00 mm are listed.

The specification lists compression ratios of 8.3:1 and 10.5:1, as well as piston dish volumes of −12.50 cm³, −13.20 cm³ and −13.90 cm³. Before choosing, check the correct combination of bore, compression ratio and piston dish volume for the specific engine.

• Engine: BMW 2.5L M52 Single Vanos
• Bore: 84.00 mm, 84.50 mm or 85.00 mm
• Listed compression ratios: 8.3:1 and 10.5:1
• Listed piston dish volumes: −12.50 cm³, −13.20 cm³ and −13.90 cm³

Suitable for: BMW 3 III (E36) / IV (E46), BMW 5 IV (E39).
