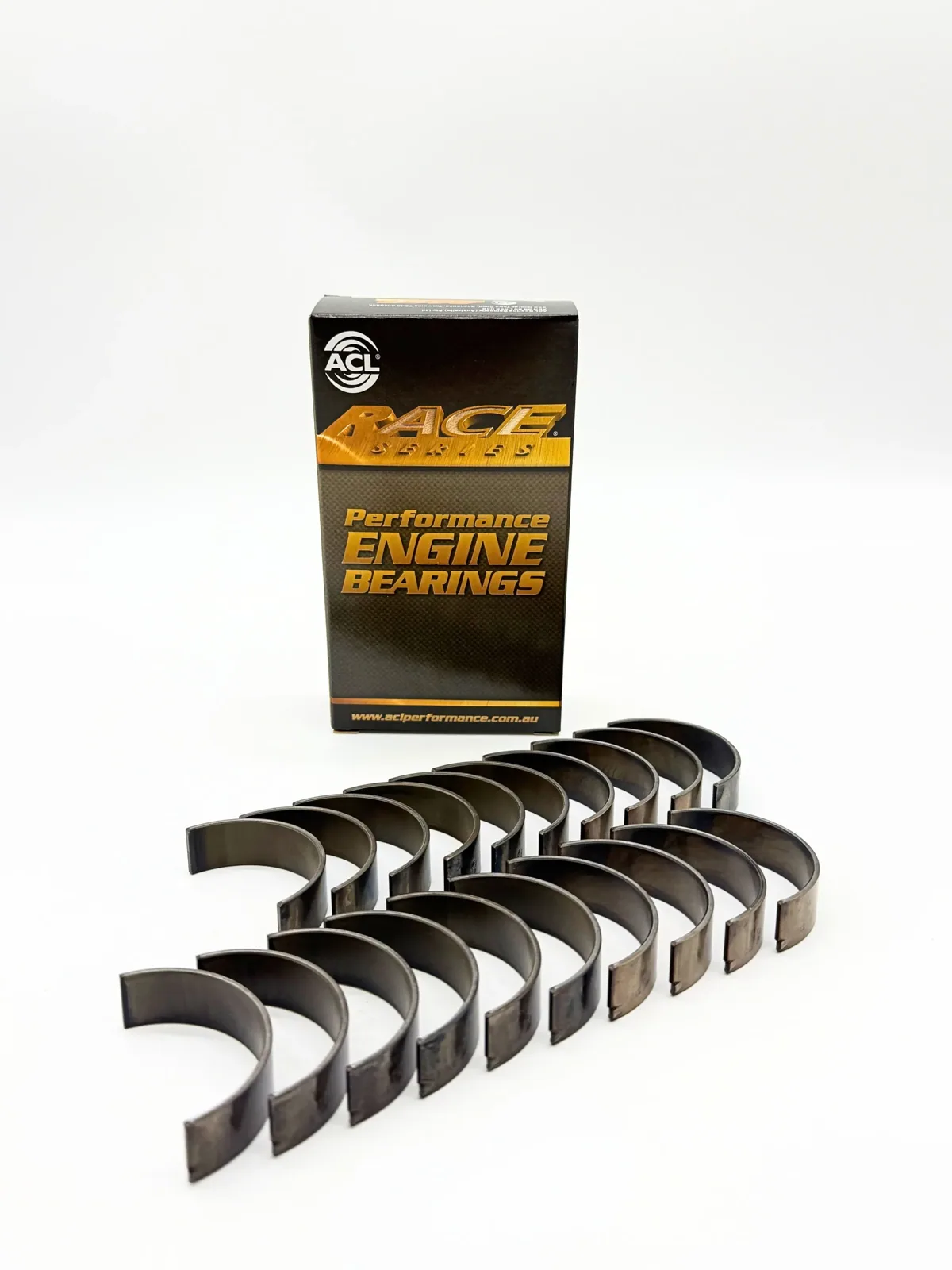

ACL Race rod bearings for BMW S85

ACL Race rod bearings for BMW S85 are high-performance trimetal bearings designed for demanding high-RPM conditions. Their construction combines a high-strength overlay plate, hardened steel backs and tight wall tolerances.

Increased eccentricity helps compensate for bore distortion at high RPM and assists in forming hydrodynamic oil films. The set includes ACL Race Series rod bearings.

• High-strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs for improved support of the bearing lining and bearing retention in the housing
• Increased crush for improved bearing retention
• Elimination of flash plating on the back for improved heat transfer and grip in the housing
• Increased eccentricity to compensate for bore distortion at high RPM
• Tight, consistent wall tolerances to help maintain consistent clearances

Suitable for: BMW 5 V (E60/E61), BMW 6 II (E63/E64).

Engines: S85 (S85B50A, S85B50). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.

Sizes

STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
