ACL Race rod bearings are tri-metal engine bearings designed for higher RPM conditions. The combination of design, metallurgy and engineering provides a strengthened construction for high-performance engines.

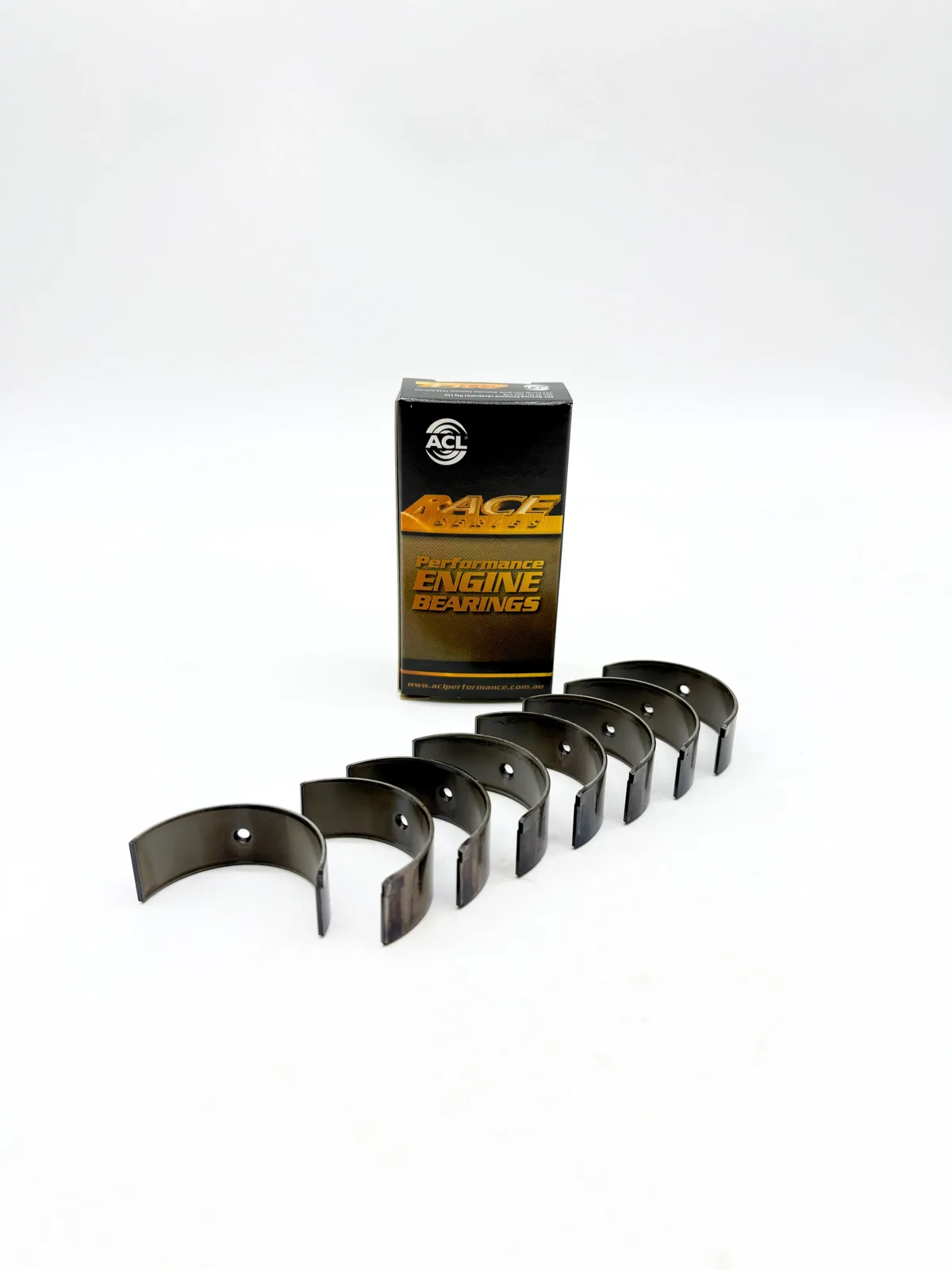

The set contains ACL Race Series rod bearings. Increased eccentricity compensates for bore distortion at high RPM and assists with the formation of hydrodynamic oil films.
- High-strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs for improved support of the bearing lining and bearing retention in the housing
- Increased crush for improved bearing retention
- Elimination of flash plating on the back for improved heat transfer and grip between the bearing and its housing
- Tight, consistent wall tolerances to help maintain consistent clearances
Suitable for: Honda Accord VI (CG/CH/CL), Honda City IV (GD8), Honda Civic III (AL/AJ/AG/AH) / IV (EC/ED) / V (COUPE/EJ) / V (EG/EH) / VI (EJ/EK) / VI (MB/MC), Honda Concerto I (HW), Honda CR V I (RD1/RD3), Honda Crx I (AG/AH/AJ/AK/AT/AU) / II (ED/EE) / III (EH/EG), Honda HR V I, Honda Integra COUPE (DC) / II (COUPE/DA) / III (DB), Rover 200 I (XW), Rover 400 I (RT) / II (XW).
Engines: D16A, D15B, D16Z, D16Y, D15Z, D16B, ZC, B20Z, D16W, B20B, B18A (D16B6, B20B4, B20Z2, ZC1, D15B6, D16A6, D16A8, D16A9, D16Z5, D15B2, D16Y7, D16Y8, D16Z6, D15B7, D15B1, D16A7, D16Z2, D16A1, D15B4, D15Z1, D16Y1, D15B8, D15Z2, D15Z8 …). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
