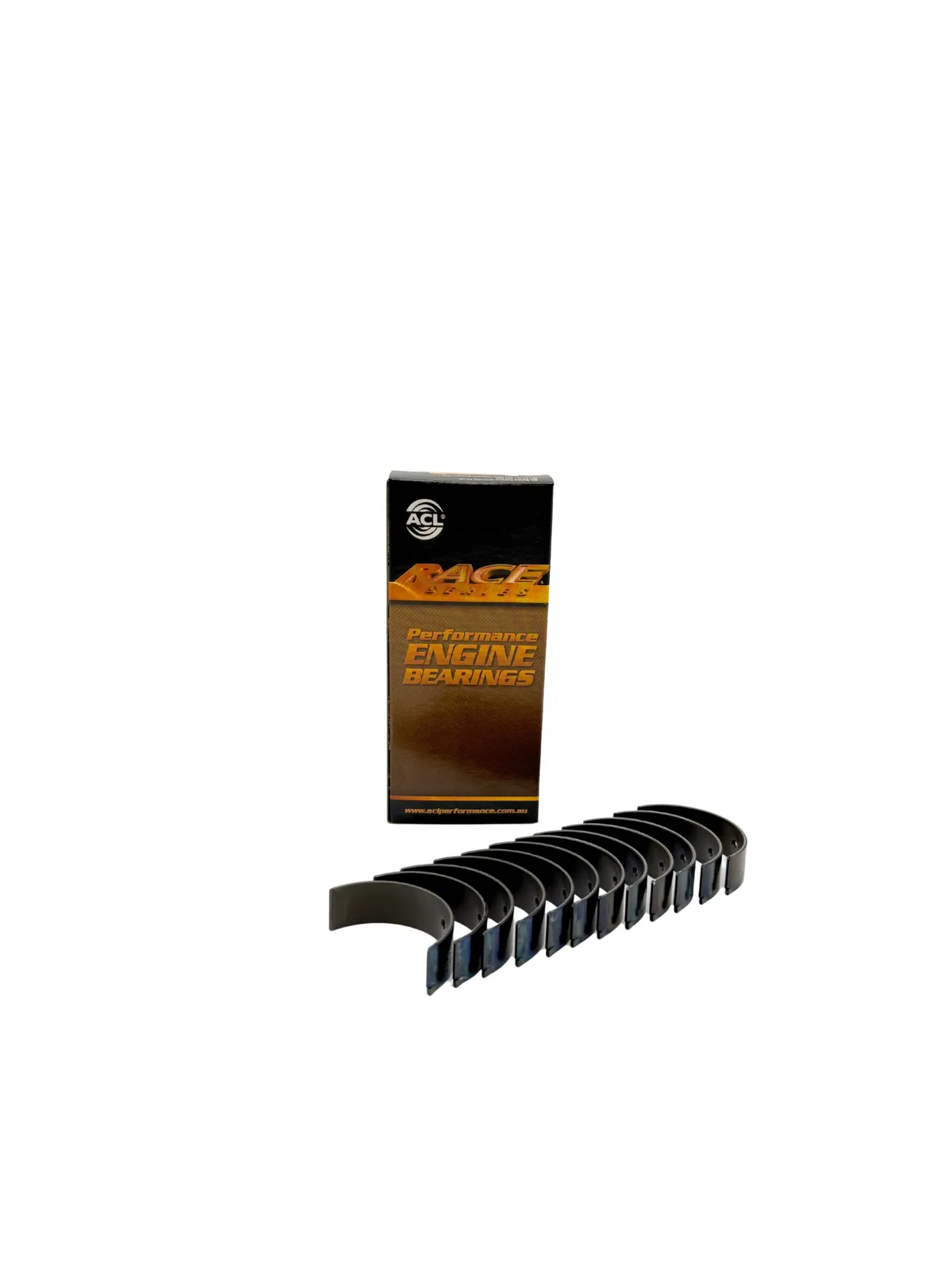

ACL Race rod bearings for Nissan VQ35DE

ACL Race rod bearings are tri-metal engine bearings designed for higher RPM conditions. The high-strength overlay plate has reduced thickness to improve fatigue properties.

Hardened steel backs support the bearing lining and assist with bearing retention in the housing. Increased crush improves retention, while increased eccentricity helps compensate for bore distortion and supports the formation of hydrodynamic oil films.

• High-strength overlay plate with reduced thickness
• Hardened steel backs
• Increased crush for improved bearing retention
• Elimination of flash plating on the back for improved heat transfer and grip
• Increased eccentricity to compensate for bore distortion at high RPM
• Tight, consistent wall tolerances

Suitable for: Nissan 350Z I (Z33).

Engines: VQ35DE. Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.

Sizes

STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
