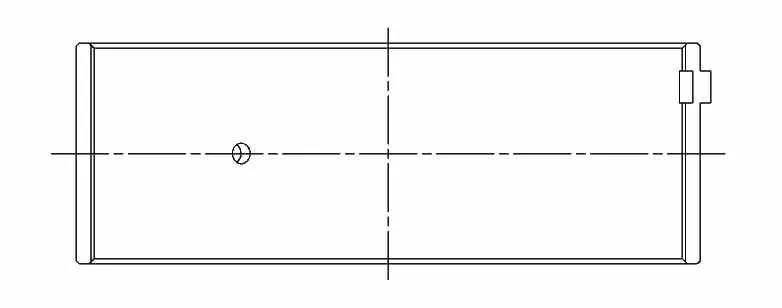

ACL Race rod bearings for Toyota 1FZ-FE are trimetal engine bearings designed for higher RPM conditions. Their construction combines high strength, improved bearing lining support and reliable retention in the housing.
The ACL Race Series set includes 0.025 mm extra clearance. Increased eccentricity helps compensate for bore distortion at high RPM and assists in forming a hydrodynamic oil film.
- High-strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs for improved support of the bearing lining and bearing retention
- Increased crush for improved bearing retention
- Flash plating eliminated on the back for improved heat transfer and grip in the housing
- Tight, consistent wall tolerances to help maintain consistent clearances
Suitable for: Lexus LX I (FZJ80), Toyota Land Cruiser J100 (HDJ100) / J70 (HZJ7) / J80 (HDJ80).
Engines: 1FZ-FE. Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
