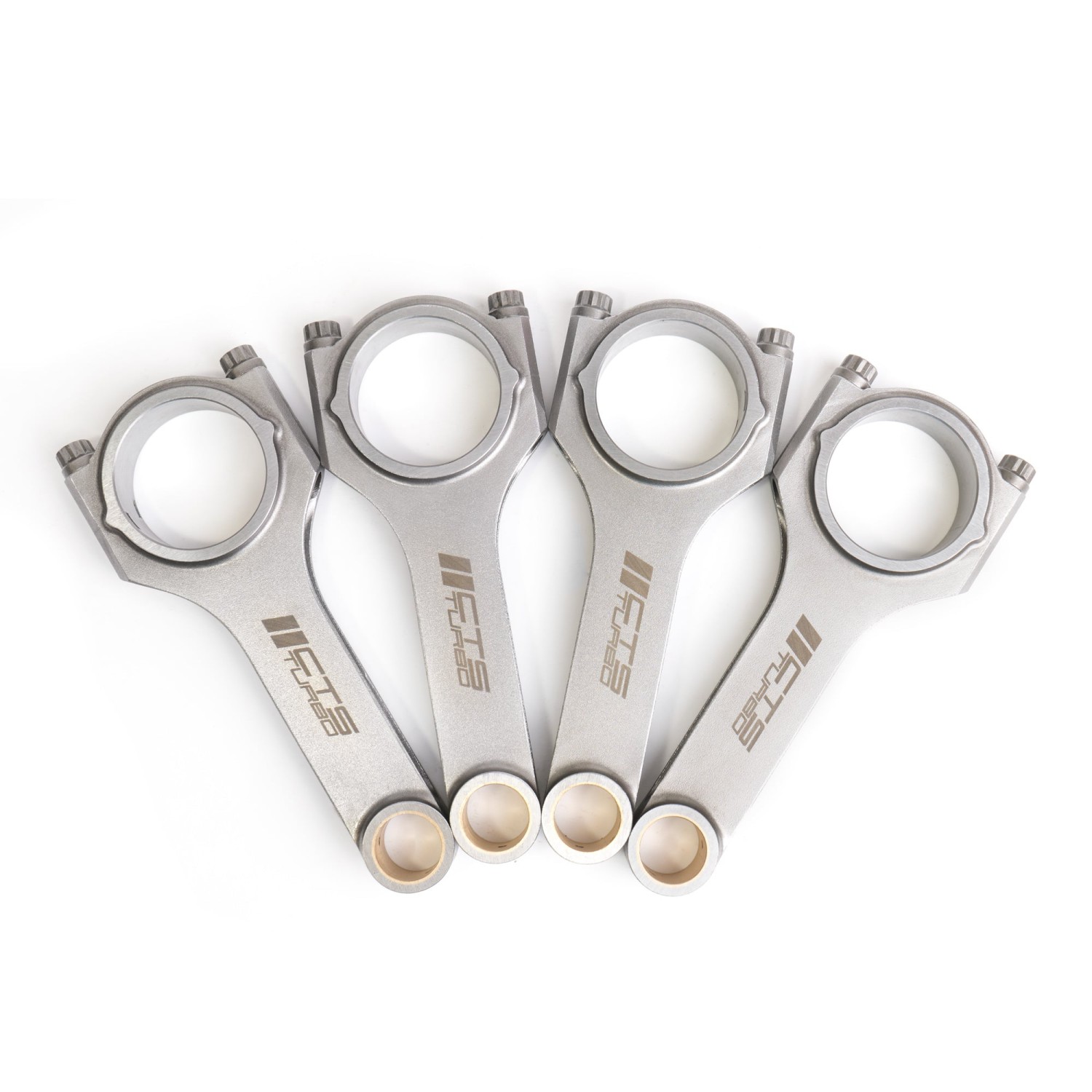

CTS Turbo forged H-beam connecting rods measuring 144 × 22 mm are designed for VW and Audi 2.0 TSI engines and use with aftermarket pistons. They are engineered for applications with a larger turbocharger and high boost pressure, while maintaining reliability thanks in part to the standard rifle-drilled design.
Rifle drilling
All CTS connecting rods are forged and rifle-drilled as standard.
Honing
The big-end and small-end bores are machined and honed on precision equipment with very tight tolerances.
Quality control
All connecting rods undergo a strict quality-control process that includes measuring all key dimensions on a CMM coordinate measuring machine. The connecting rods are weight-matched to within ±1 gram.
ARP bolts
CTS Turbo connecting rods are supplied as standard with genuine ARP 2000 connecting rod bolts.
Product specifications
- Forged 4340 chrome-molybdenum steel
- H-beam design
- Centre-to-centre length: 144 mm
- Piston pin diameter: 22 mm
- Big-end width: 21.90 mm
- Piston pin design: non-tapered
- Big-end bearing diameter: 50.60 mm
- Connecting rod bolt size: 3/8″
- Genuine ARP fasteners
- Precisely honed, measured and balanced in Canada
- Weight: 5.44 kg
Suitable for: Audi A3 II (8P) / III (8V), Audi TT II (8J), VW Golf V (1K) / VI (5K1) / VII (5G1).
