CTS Turbo intake manifold for VAG 2.0T MQB/EVO4

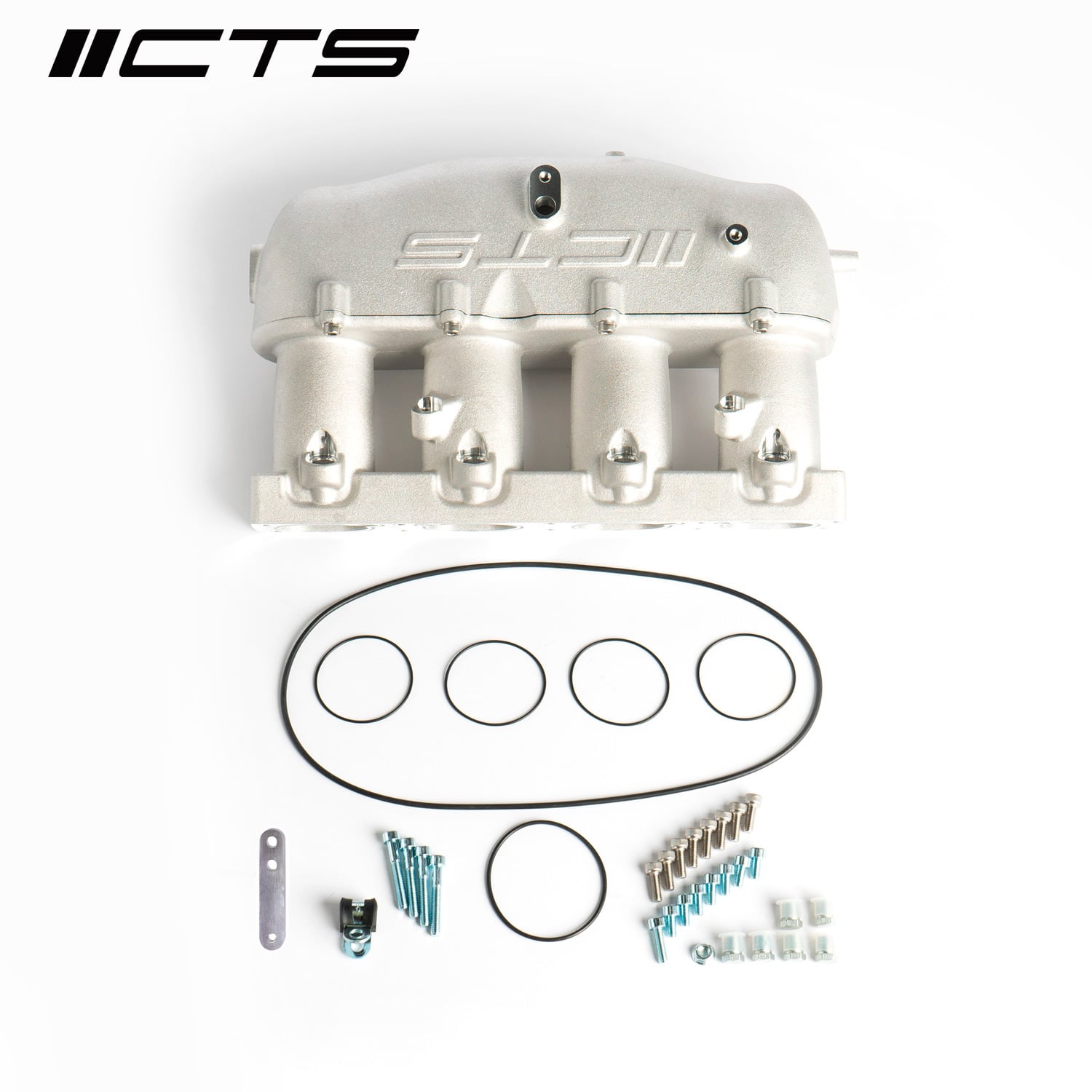

CTS Turbo intake manifold for Audi/VW 2.0T MQB/EVO engines.

The intake manifold is made from cast aluminium, allowing it to withstand significantly higher boost pressure than the original plastic manifold. Its volume is approximately 40% larger, while airflow is balanced across all cylinders.

The manifold plenum is substantially increased in size and designed to distribute the airflow as evenly as possible to all cylinders.

Features:

• Approximately 40% larger volume compared with the standard manifold
• Improved turbocharger spool-up and more horsepower when using suitable engine tuning software
• Even flow distribution through all runners
• Integrated airflow guides in all runners
• Retains the factory throttle body installation, so no adapters are required
• Retains the factory mounting points for accessories and brackets
• Removes the factory flaps in the intake manifold
• 1/8″ NPT ports for water/methanol injection
• 1/4″ NPT and 1/8″ NPT ports for vacuum or boost pressure reference
• Compatible with the factory PCV system or most oil catch can solutions
• Compatible with CTS Turbo MPI kits for port injection and factory ROW port injection kits. Other MPI kits may be compatible, but modifications may be required.

Important:

Port injection (MPI) is mandatory.

Dedicated engine tuning is required for this intake manifold. Check the details with your tuner.

Weight: 7.26 kg

Suitable for: Audi A3 III (8V), Audi S3 III (8V), Audi TT III (FV), VW Arteon I (3H), VW Atlas I (CMC), VW Golf VII (5G1) / VIII (CD1), VW Jetta IV (162).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
