The CTS Turbo heat shield retains the heat produced by the K04-0064 turbocharger. It is designed to reduce turbo lag, lower intake air temperatures, protect and extend the service life of engine components, and increase power.
By retaining exhaust gas heat in the hot side of the turbocharger and away from the cold side and intake path, more oxygen can reach the engine per unit of displacement, helping to increase power.
The heat shield fits all 2.0T FSI and TSI engines with K04 or K03 turbochargers, as well as EA113, EA888.1 and EA888.2 engines.
Temperature resistance
Inner surface:
Maximum permitted temperature: 2100 °F
Continuous-use limit: 1800 °F
Outer surface:
Direct-contact limit: 800 °F
Radiant heat limit: 1200 °F

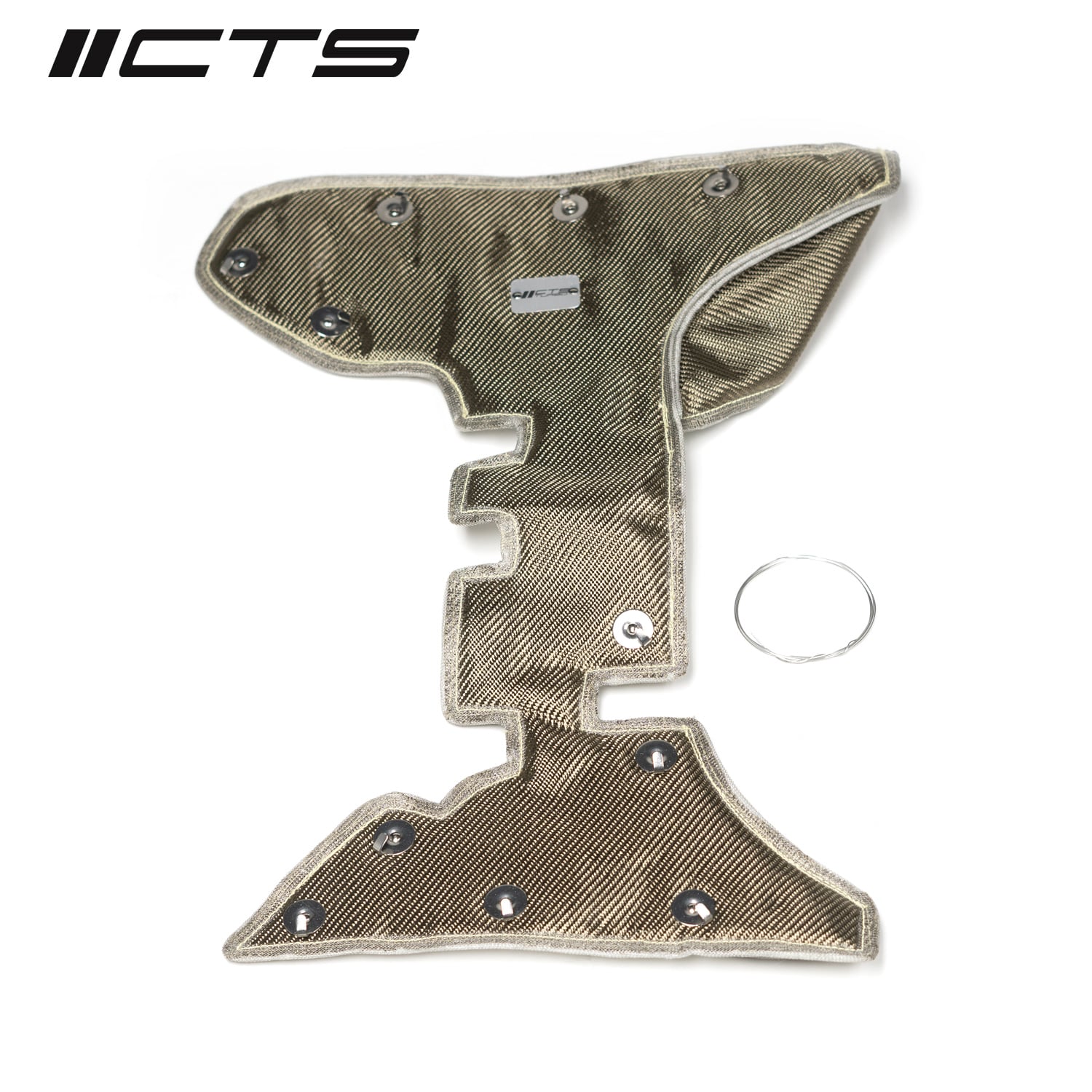

- Product: CTS Turbo K04-0064 Turbo Blanket
- Weight: 1.81 kg
Suitable for: Audi A3 II (8P), Audi A4 III (B8), Audi A5 I (B8), Audi A6 VII (4G/C7), Audi TT II (8J), VW Golf VI (5K1), VW Jetta III (1K2) / IV (162), VW Passat B6 (3C).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2005–2013 | — |
| Audi A4 | — | 2005–2016 | — |
| Audi A5 | — | 2010–2016 | — |
| Audi A6 | — | 2012–2016 | — |
| Audi CC | — | 2009–2016 | — |
| Audi TT | — | 2009–2016 | — |
| Volkswagen Golf R | — | 2012–2013 | — |
| Volkswagen GTI | — | 2006–2014 | — |
| Volkswagen JETTA | — | 2005–2010 | — |
| Volkswagen JETTA GLI | — | 2012–2013 | — |
| Volkswagen PASSAT | — | 2006–2010 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
