The timing belt idler pulley bracket for 1.8T 20V engines is used when converting the timing belt tensioner from the original hydraulic tensioner to the older mechanical tensioner. By retaining the original idler pulley, it prevents a reduction in belt wrap around the crankshaft pulley. At the same time, it limits excessive belt vibration between the tensioner and idler pulley by retaining the short factory distance between the two pulleys.
The bracket is CNC-machined from 6061-T6 aircraft-grade aluminium and features rolled threads for increased strength. Various kit stages are available, from Stage 1 to Stage 3.5.
Features
- CNC-machined from 6061-T6 aircraft-grade aluminium
- Rolled threads for increased strength
- Prevents loss of belt wrap around the crankshaft
- Prevents excessive timing belt vibration
- Black anodised finish with CTS logo at no extra cost
- Weight: 0.91 kg
Contents by kit stage

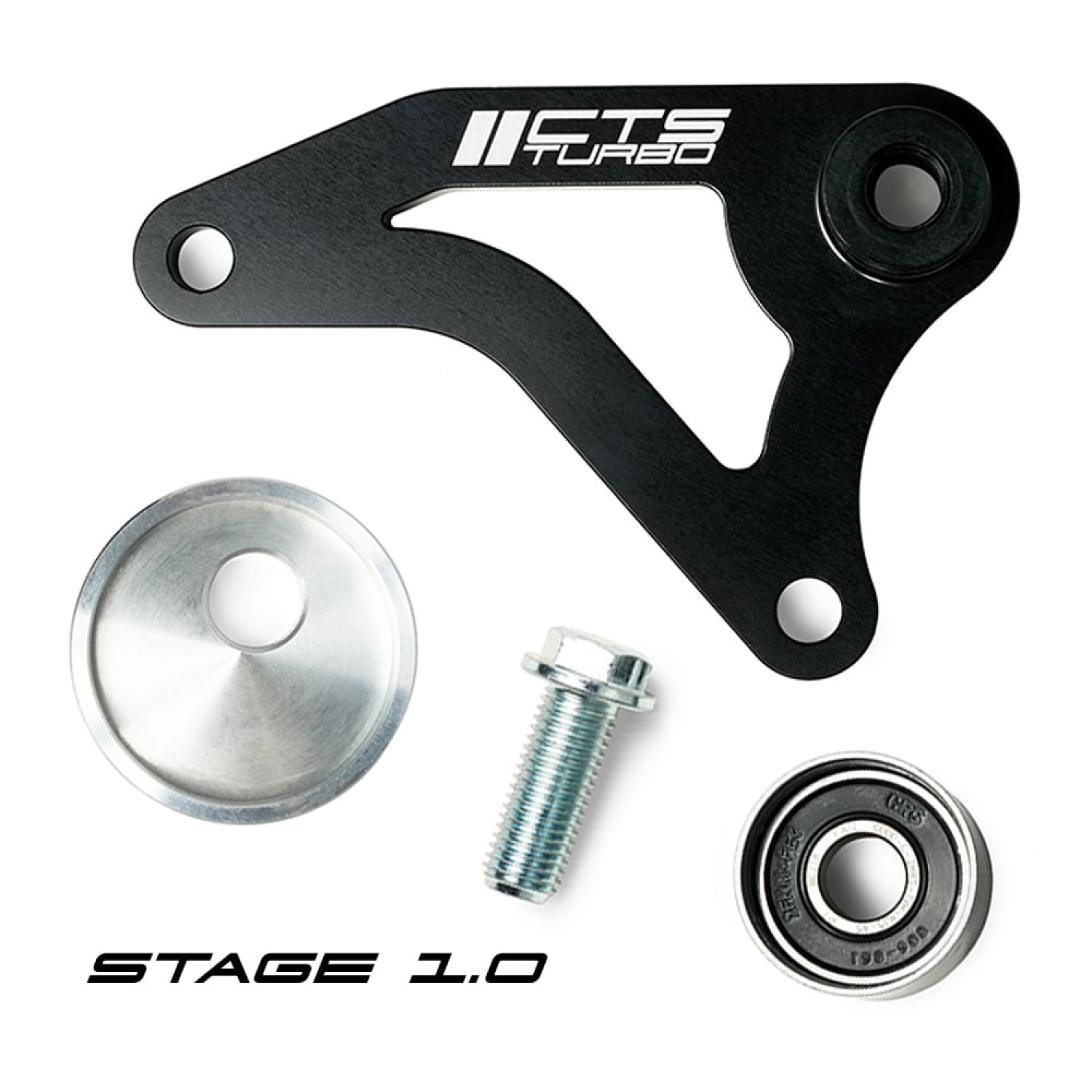

- Stage 1: idler pulley bracket, spacer disc and idler pulley
- Stage 1.5: idler pulley bracket, spacer disc, idler pulley and tensioner pulley
- Stage 2: idler pulley bracket, spacer disc, idler pulley, tensioner pulley and ContiTech timing belt
- Stage 2.5: idler pulley bracket, spacer disc, idler pulley, tensioner pulley and Gates racing timing belt
- Stage 3: idler pulley bracket, spacer disc, idler pulley, tensioner pulley, ContiTech timing belt and OEM water pump with metal impeller
- Stage 3.5: idler pulley bracket, spacer disc, idler pulley, tensioner pulley, Gates racing timing belt and OEM water pump with metal impeller
Suitable only for late 06A 1.8T engines.
The product is specific to the engine block, not the cylinder head. All 058 and 06A 1.8T cylinder heads use the same tensioner mounting method.
Suitable for: VW Beetle I (9C), VW Golf IV (1J), VW Jetta IV (1J).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Volkswagen BEETLE | — | 1998–2010 | — |
| Volkswagen GOLF | — | 1999–2006 | — |
| Volkswagen GTI | — | 1999–2006 | — |
| Volkswagen JETTA | — | 1999–2005 | — |
| Volkswagen PASSAT | — | 1998–2005 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
