Before installation, check that the spacer sits flat against the rear of the wheel across its entire surface. After installation, also check the clearance in the wheel arch with the steering turned fully to the left and right.

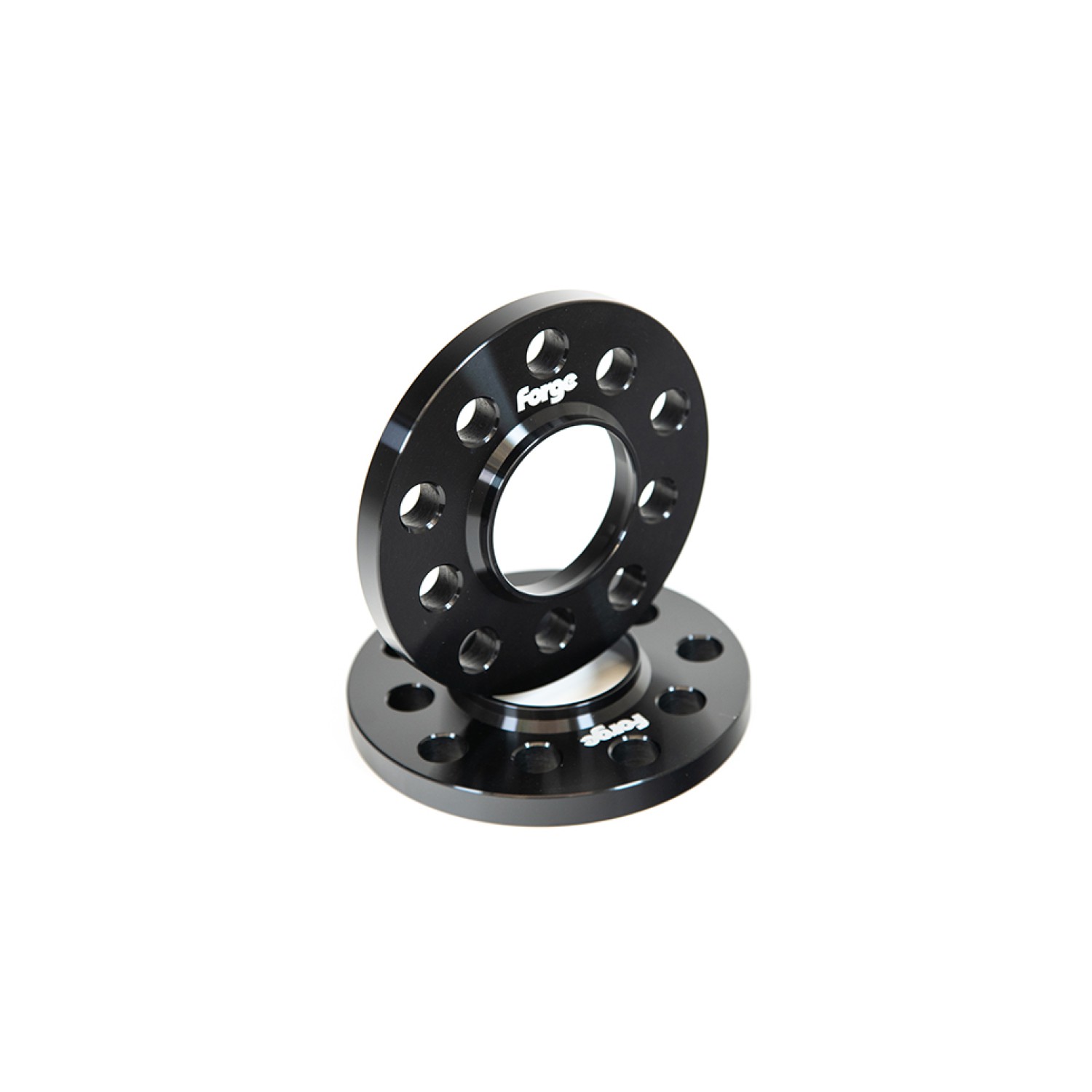

These CNC-machined precision aluminium spacers are 13 mm thick and have a 66.5 mm centre bore, with a combined 5-lug pattern for 100 and 112 mm bolt spacings. The black anodised finish helps limit corrosion and the spacer sticking to the wheel or hub. The integrated aluminium centring ring enables precise centring on the hub, making these hub-centric spacers.
The spacers are suitable for most Volkswagen Group vehicles. When fitting 13 mm spacers to both sides of an axle, the total track width increases by 26 mm.
- Spacers are sold in pairs.
- All Forge wheel spacers are made from 6082 aluminium alloy.
- Extended wheel bolts are not included.
- The spacers are hub-centric.
The kit includes:
- 2 × FMWS13BB 13 mm wheel spacer
- 1 × Forge sticker
Suitable for: Audi A4 III (B8) / IV (B9), Audi A5 II (F5/F53), Audi A6 VII (4G/C7), Audi A8 IV (4H/D4), Audi Q5 II (FY), Audi Q7 I (4M), Audi RS4 V (B9), Audi RS5 I (8T) / II (F5), Audi RS6 IV (C7) / V (C8), Audi RS7 I (C7) / II (C8), Audi S4 V (B8) / VI (B8/5) / VIII (B9), Audi S5 II (B9) and 8 more (see the table below).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A4 | A4 | 2016–2025 | 2.0 TFSI, 2.0 TSI |
| Audi A4 | B8/B8 | 2008–2016 | — |
| Audi A5 | A5 | 2012–2026 | 2.0 TSI 2021, 2.0 TSI s |
| Audi A6 | A6 | 2011–2026 | 2.0 TDI s |
| Audi A8 | A8 | 2010 | — |
| Audi Q5 | Q5 | 2017–2026 | s |
| Audi Q7 | Q7 | 2015 | — |
| Audi RS4 | RS4 | 2019–2025 | — |
| Audi RS5 | RS5 | 2010–2026 | —, s (F5) |
| Audi RS6 | RS6 | 2013–2026 | —, C8 Onwards) |
| Audi RS7 | RS7 | 2013–2026 | —, C8 Onwards) |
| Audi S4 | B8/8 | 2009–2016 | B8/8.5 |
| Audi S4 | S4 | 2017–2025 | — |
| Audi S5 | S5 | 2017–2024 | — |
| Audi S6 | S6 | 2011 | — |
| Audi S7 | S7 | 2011 | — |
| Audi S8 | S8 | 2011 | — |
| Audi SQ5 | SQ5 | 2012–2025 | 3.0 TFSI, 3.0 TSI |
| BMW 7 Series | G11 | 2015 | — |
| BMW 7 Series | G12 | 2015 | — |
| BMW i8 | I8 | 2014 | — |
| Mini F56/F55 Hatchback | F54/F55/F56/F57 | 2014–2026 | Cooper S 2.0 Turbo Petrol (B48), One 1.5 Turbo Petrol (B38) |
| Porsche Macan | — | 2015–2018 | Macan 2.0T (95B.1) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
