Before installation, check that the spacer sits flat against the rear of the wheel across its entire surface. After installation, also check the clearance in the wheel arch area with the wheels turned fully to the left and right.

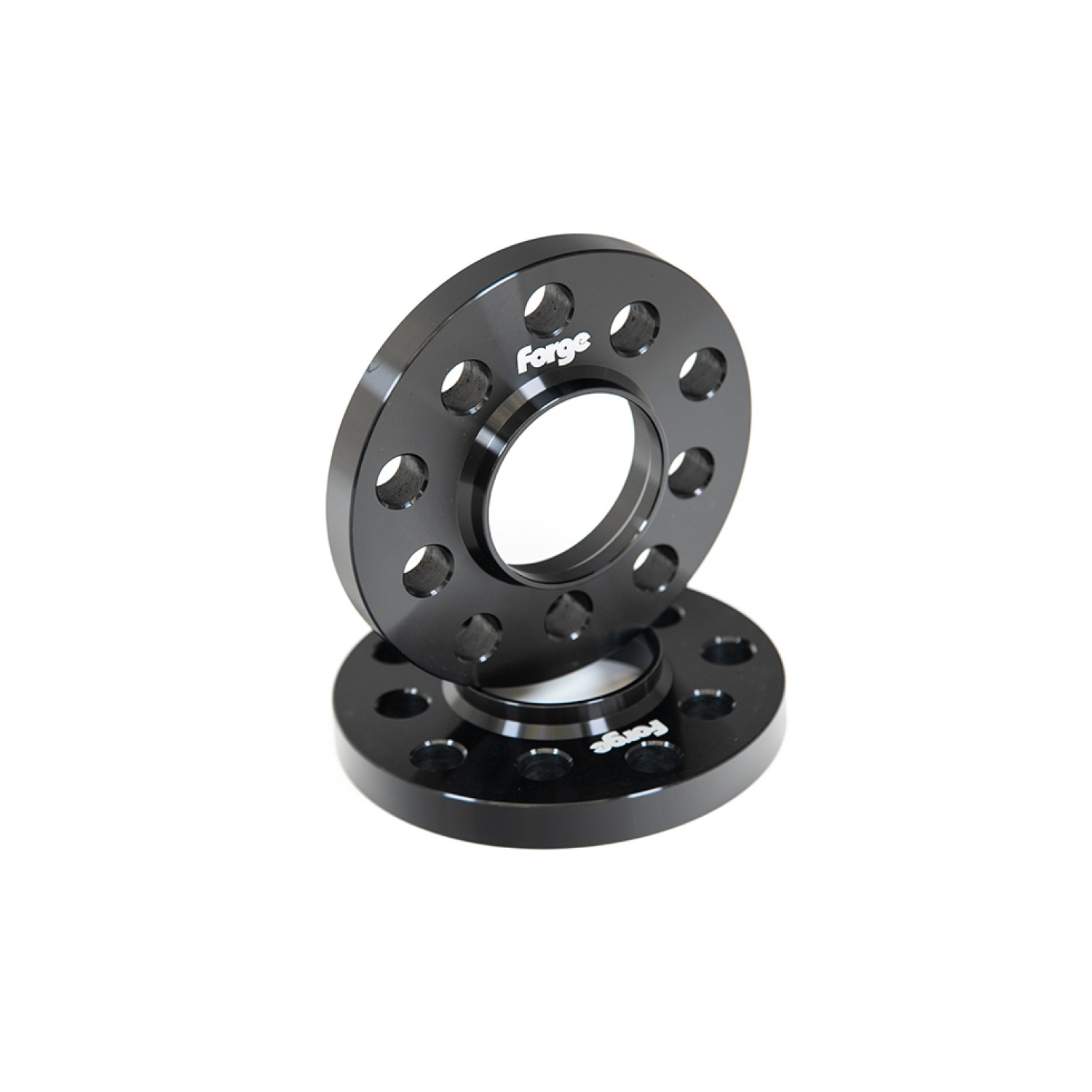

These CNC-machined precision aluminium wheel spacers are 16 mm thick and have a 66.5 mm centre bore and dual 5-bolt pattern for mounting with PCD 100 and 112 mm. The black anodised finish helps prevent corrosion and the spacer sticking to the wheel or hub. The integrated aluminium centring ring enables precise centring on the hub, making the spacers hub-centric. They are suitable for most Volkswagen Group vehicles. A 16 mm thick spacer increases the track width by a total of 32 mm when fitted on both sides of the axle.
- The spacers are sold in pairs.
- All Forge wheel spacers are made from 6082 aluminium alloy.
- Extended wheel bolts are not included.
- The spacers are hub-centric.
The kit includes:
- 2 × Forge Motorsport FMWS16BB 16 mm wheel spacer
- 1 × Forge sticker
Suitable for: Audi A4 III (B8) / IV (B9), Audi A5 II (F5/F53), Audi A6 VII (4G/C7), Audi A8 IV (4H/D4), Audi Q5 II (FY), Audi Q7 I (4M), Audi RS4 V (B9), Audi RS5 I (8T) / II (F5), Audi RS6 IV (C7) / V (C8), Audi RS7 I (C7) / II (C8), Audi S4 V (B8) / VI (B8/5) / VIII (B9), Audi S5 II (B9) and 8 more (see the table below).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A4 | A4 | 2016–2025 | 2.0 TFSI, 2.0 TSI |
| Audi A4 | B8/B8 | 2008–2016 | — |
| Audi A5 | A5 | 2012–2026 | 2.0 TSI 2021, 2.0 TSI s |
| Audi A6 | A6 | 2011–2026 | 2.0 TDI s |
| Audi A8 | A8 | 2010 | — |
| Audi Q5 | Q5 | 2017–2026 | s |
| Audi Q7 | Q7 | 2015 | — |
| Audi RS4 | RS4 | 2019–2025 | — |
| Audi RS5 | RS5 | 2010–2026 | —, s (F5) |
| Audi RS6 | RS6 | 2013–2026 | —, C8 Onwards) |
| Audi RS7 | RS7 | 2013–2026 | —, C8 Onwards) |
| Audi S4 | B8/8 | 2009–2016 | B8/8.5 |
| Audi S4 | S4 | 2017–2025 | — |
| Audi S5 | S5 | 2017–2024 | — |
| Audi S6 | S6 | 2011 | — |
| Audi S7 | S7 | 2011 | — |
| Audi S8 | S8 | 2011 | — |
| Audi SQ5 | SQ5 | 2012–2025 | 3.0 TFSI, 3.0 TSI |
| BMW 7 Series | G11 | 2015 | — |
| BMW 7 Series | G12 | 2015 | — |
| BMW i8 | I8 | 2014 | — |
| Mini F56/F55 Hatchback | F54/F55/F56/F57 | 2014–2026 | Cooper S 2.0 Turbo Petrol (B48), One 1.5 Turbo Petrol (B38) |
| Porsche Macan | — | 2015–2018 | Macan 2.0T (95B.1) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
