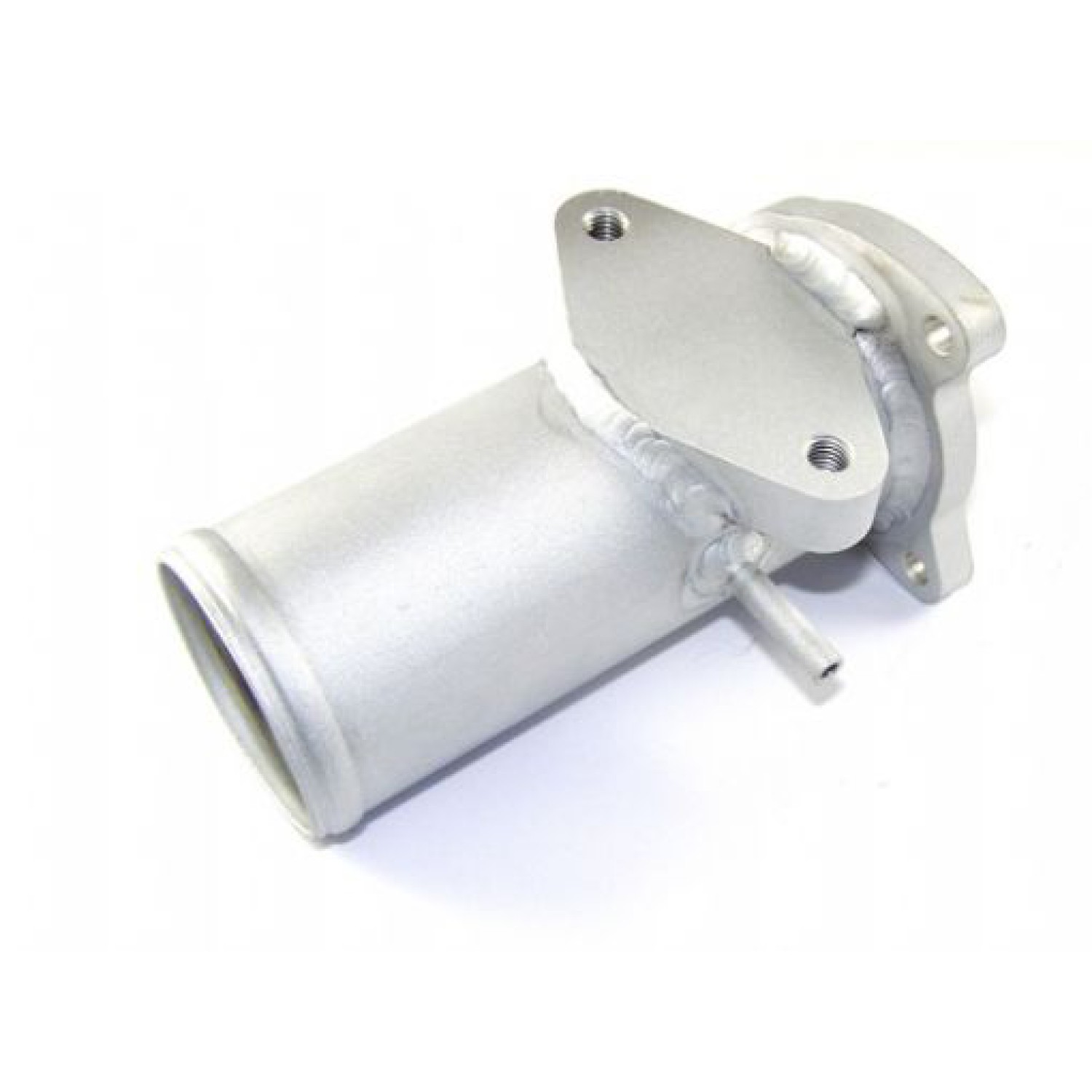

This pipe enables removal of the exhaust gas recirculation (EGR) valve on transverse VAG 1.9 PD diesel engines from 1999–2005. It is suitable for engines with the following codes: ALH (90 hp), ATD (100 hp), AHF (110 hp), ASV (110 hp), AJM (115 hp) and AUY (115 hp).
The replacement pipe has an integrated blanking plate and a boost gauge port. If you do not need the port, it can be sealed with the short piece of hose supplied.
All parts required for fitting are included. During installation, the existing O-shaped seal (O-ring) on the valve must be reused.
Suitable for: Audi A3 I (8L), SEAT Ibiza II (6K1) / III (6L1), SEAT Leon I (1M1), Škoda Fabia I (6Y), Škoda Octavia I (1U2) / I (1U5), VW Bora I (1J), VW Golf IV (1J).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | 8P | 2004–2009 | 2.0 TDI |
| Audi A3 | A3 | 1996–2004 | 1.9 TDI |
| Audi A4 | A4 | 1994–2006 | 1.9 TDI |
| Seat Ibiza | MK2 | 1999–2002 | — |
| Seat Ibiza | MK3 | 2002–2008 | Mk3 (6L) |
| Seat Leon | MK2 | 2005–2012 | — |
| Skoda Fabia | — | 1999–2007 | — |
| Skoda Octavia | MK1 | 1996–2004 | 1.9 TDI |
| Skoda Octavia | MK2 | 2004–2012 | 2.0 TDI |
| Skoda Superb | B5 | 2001–2008 | 1.9TDI |
| Volkswagen Passat | B5 | 1996–2005 | 1.9 TDI |
| Volkswagen Passat | B6 | 2005–2011 | 1.9 TDI |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
