Before fitting, check that the spacer sits flat against the rear face of the wheel. After fitting, also check the clearance in the wheel arch with the steering at full lock to the left and right.
Extended wheel bolts are not included.
The spacers are hub-centric and have a 57.1 mm centre bore.

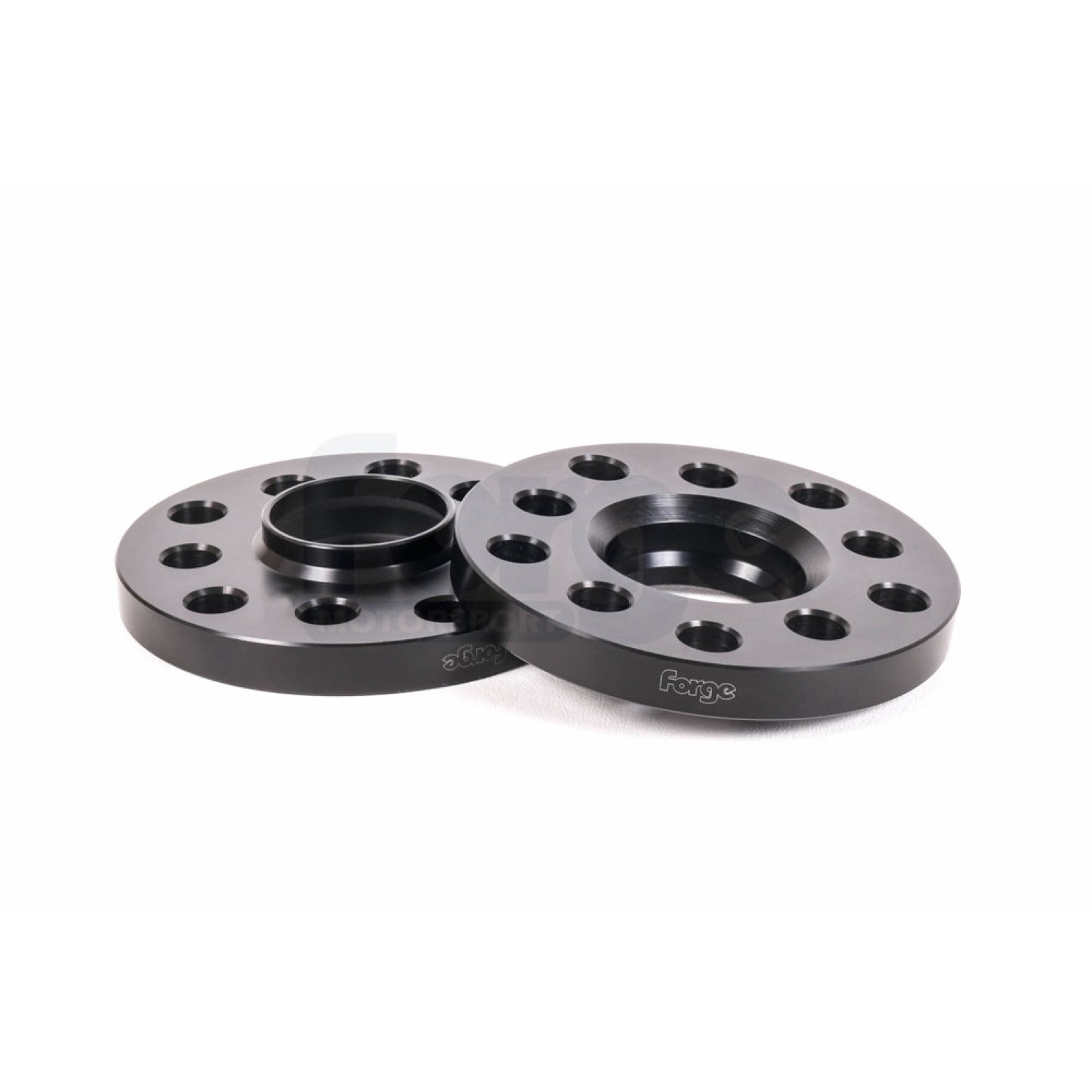

These precision CNC-machined aluminium spacers are 16 mm thick, have a 57.1 mm centre bore and a dual 5-bolt pattern for PCD 5×100 and 5×112. The black anodised finish helps limit corrosion and prevents the spacer from sticking to the wheel or hub. The integrated aluminium centring lip ensures correct centring on the hub, which is why these spacers are often called hub-centric spacers.
The spacers are suitable for numerous Volkswagen Group vehicles. A 16 mm spacer increases the overall track width by 32 mm when fitted to both sides of an axle.
Important: 11, 16 and 20 mm thick hub-centric spacers are not compatible with the rear wheels of VW MK3 vehicles with a 5×100 bolt pattern, as the centring lip is too long. This issue does not occur with the smaller non-hub-centric spacers measuring 3, 5 and 8 mm thick.
The kit includes:
- 2 × FMWS16 wheel spacers, 16 mm thick
- 1 × Forge sticker
All Forge spacers are made from 6082 aluminium alloy.
Suitable for: Audi A1 I (8X), Audi A3 I (8L) / II (8P), Audi A4 I (B5) / II (B6/B7), Audi RS3 II (8P) / III (8V) / IV (8Y), Audi RS4 I (B5), Audi RSQ3 II (F3), Audi S3 I (8L) / II (8P) / III (8V) / IV (8Y), Audi S4 III (B5), Audi TT I (8N) / II (8J) / III (FV), Audi Tts I (8N) / II (8S), Cupra Ateca I (KH7), SEAT Ibiza II (6K1) / III (6L1) / IV (6J/6P) / V (KJ1) and 13 more (see the table below).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
Show all 48 vehicles
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A1 | 8X | 2010–2018 | —, 1.2 TSI, 1.4 Turbo, 1.6 TDI s, 2.0 TDI s |
| Audi A3 | 8P | 2004–2013 | —, 1.2 TSI, 1.4 Turbo, 1.8 TFSi, 2.0 TDI, 2.0 TFSI |
| Audi A3 | A3 | 1996–2004 | 1.8T, 1.9 TDI |
| Audi A4 | A4 | 1994–2008 | 1.8T (Turbo), 1.9 TDI, 2.0 TDI, 2.0 TFSI |
| Audi RS3 | 8P | 2011–2012 | — |
| Audi RS3 | 8V | 2015–2020 | — |
| Audi RS3 | 8Y | 2021–2024 | —, 8Y.5 2024 On |
| Audi RS4 | RS4 | 1999–2001 | — |
| Audi RSQ3 | RSQ3 | 2017 | — |
| Audi S3 | 8P | 2006–2012 | — |
| Audi S3 | 8V | 2013–2020 | — |
| Audi S3 | 8Y | 2020–2026 | 8Y Onwards), 8Y Sportback Onwards) |
| Audi S3 | S3 | 1999–2003 | — |
| Audi S4 | S4 | 1997–2002 | — |
| Audi TT | MK1 | 1998–2006 | 1.8T 150/180BHP, 1.8T 210/225BHP |
| Audi TT | MK2 | 2006–2014 | —, 2.0 TDI, 2.0 TSI |
| Audi TT | MK3 | 2015–2026 | —, 2.0 TSI s (8S), 40 TFSI Onwards) (8S), 45 TFSI (8S), 45 TFSI Onwards) (8S) |
| Cupra Ateca | — | 2018–2026 | 2.0 TSI |
| Seat Ibiza | MK2 | 1999–2002 | — |
| Seat Ibiza | MK3 | 2002–2008 | Mk3 (6L) |
| Seat Ibiza | MK4 | 2008–2015 | 1.2 TSI |
| Seat Ibiza | MK4.5 | 2015–2017 | 1.2 TSI, 1.4 TSI |
| Seat Ibiza | MK5 | 2017–2026 | 1.0 TSI, 1.5 TSI |
| Seat Leon | MK1 | 1998–2005 | Cupra 1.8T, Cupra R 1.8T |
| Seat Leon | MK2 | 2005–2012 | —, 1.2 TSI, 1.4 Turbo, Cupra 2.0 TFSi |
| Seat Leon | MK3 | 2012–2020 | 1.0 TSI, 1.8 TSI |
| Seat Leon | MK4 | 2022–2026 | 1.5 TSI |
| Skoda Fabia | — | 1999–2014 | —, 1.2 TSI, 1.4 TSI |
| Skoda Octavia | MK1 | 1996–2004 | 1.9 TDI, VRS 1.8T |
| Skoda Octavia | MK2 | 2004–2012 | —, 1.2 TSI Onwards), 2.0 TDI |
| Skoda Superb | B5 | 2001–2008 | 1.8T, 1.9TDI |
| Skoda Superb | B6 | 2008–2015 | —, 1.4 TSI |
| Skoda Superb | B8 | 2015–2024 | 2.0TSI 280 BHP |
| Volkswagen Arteon | — | 2017–2026 | 1.5 TSI, 2.0 TSI, R |
| Volkswagen Beetle | — | 2013 | 2013 2.0, 2013 2.0 Diesel |
| Volkswagen Jetta | MK6 | 2010–2018 | 1.4 TSI, 1.6/2.0 Diesel |
| Volkswagen Jetta | MK7 | 2018–2021 | —, 1.4 TSI |
| Volkswagen Jetta | MK7.5 | 2021–2026 | —, 1.5 TSI |
| Volkswagen Passat | B5 | 1996–2005 | 1.8T, 1.9 TDI |
| Volkswagen Passat | B6 | 2005–2011 | 1.9 TDI, 2.0 TDI, 2.0 TFSI |
| Volkswagen Passat | B8 | 2015–2021 | 2.0 TSI |
| Volkswagen Polo | MK4 | 2002–2009 | GTI 1.8T |
| Volkswagen Polo | MK5 | 2009–2018 | — |
| Volkswagen Scirocco | — | 2016 | 2.0 up to 2016 |
| Volkswagen T-Roc | — | 2019–2022 | R |
| Volkswagen Taos | — | 2022–2024 | 1.5 TSI |
| Volkswagen Tiguan | MK1 | 2007–2018 | 2.0 TFSI |
| Volkswagen Tiguan | MK2 | 2021–2026 | R s (Gen 4) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
