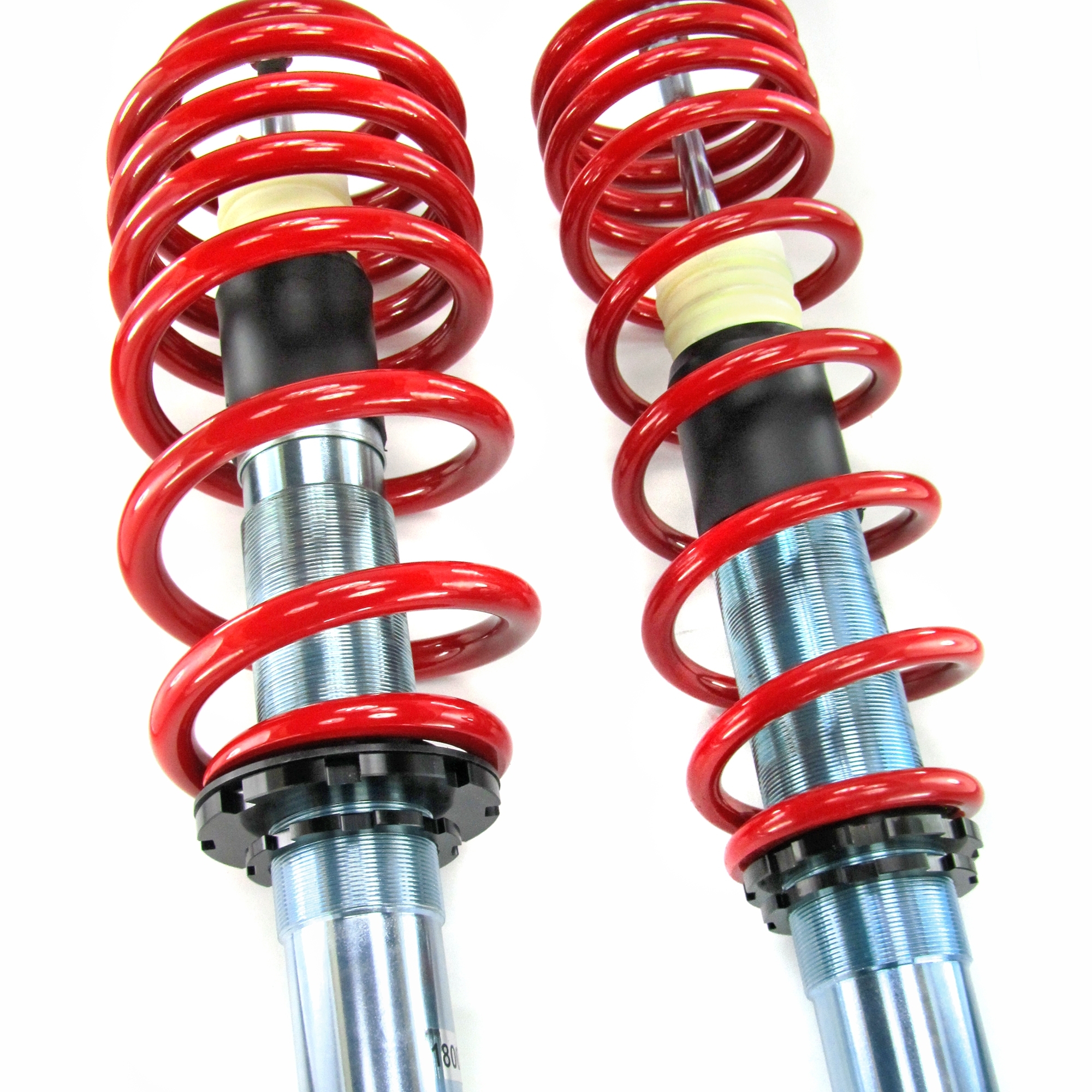

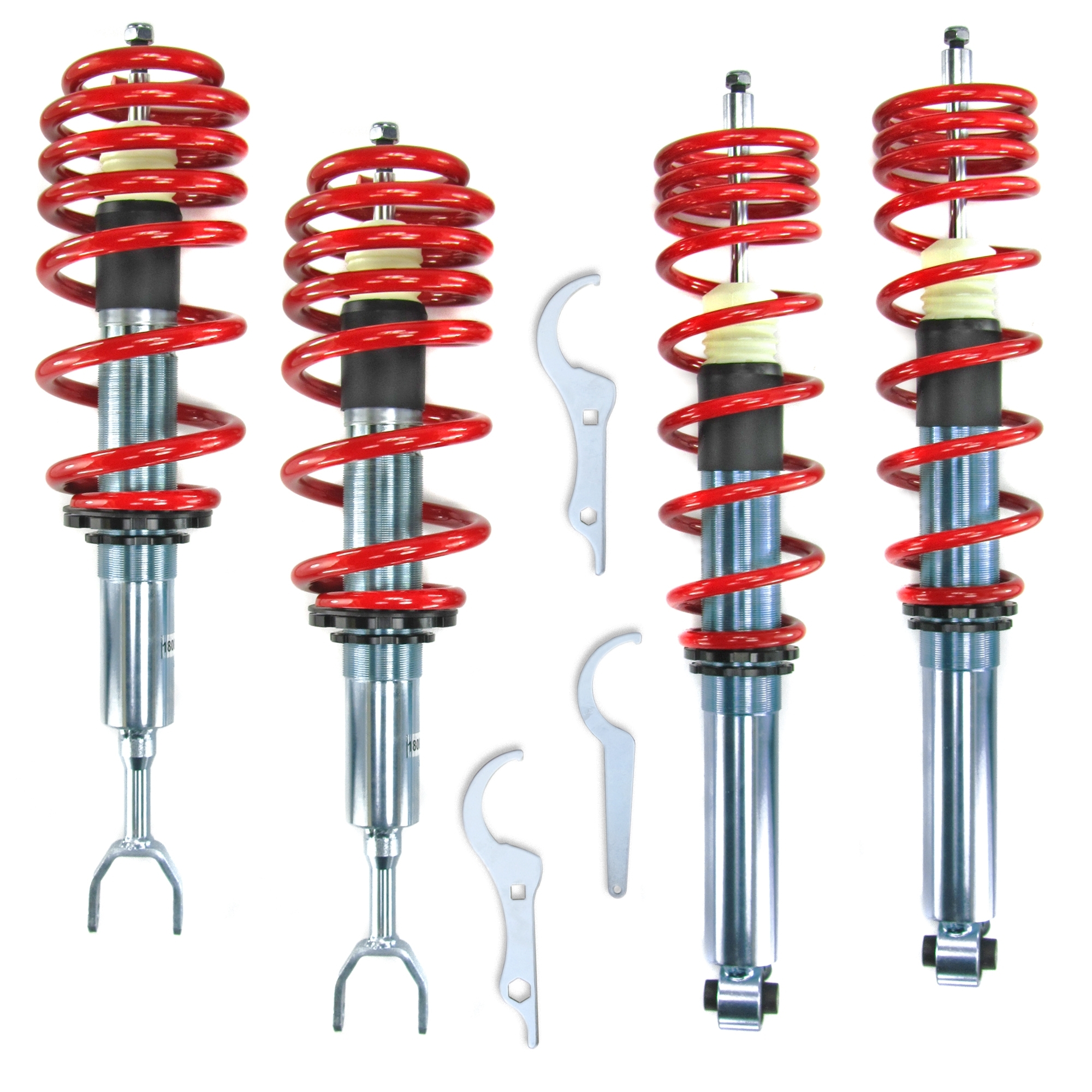

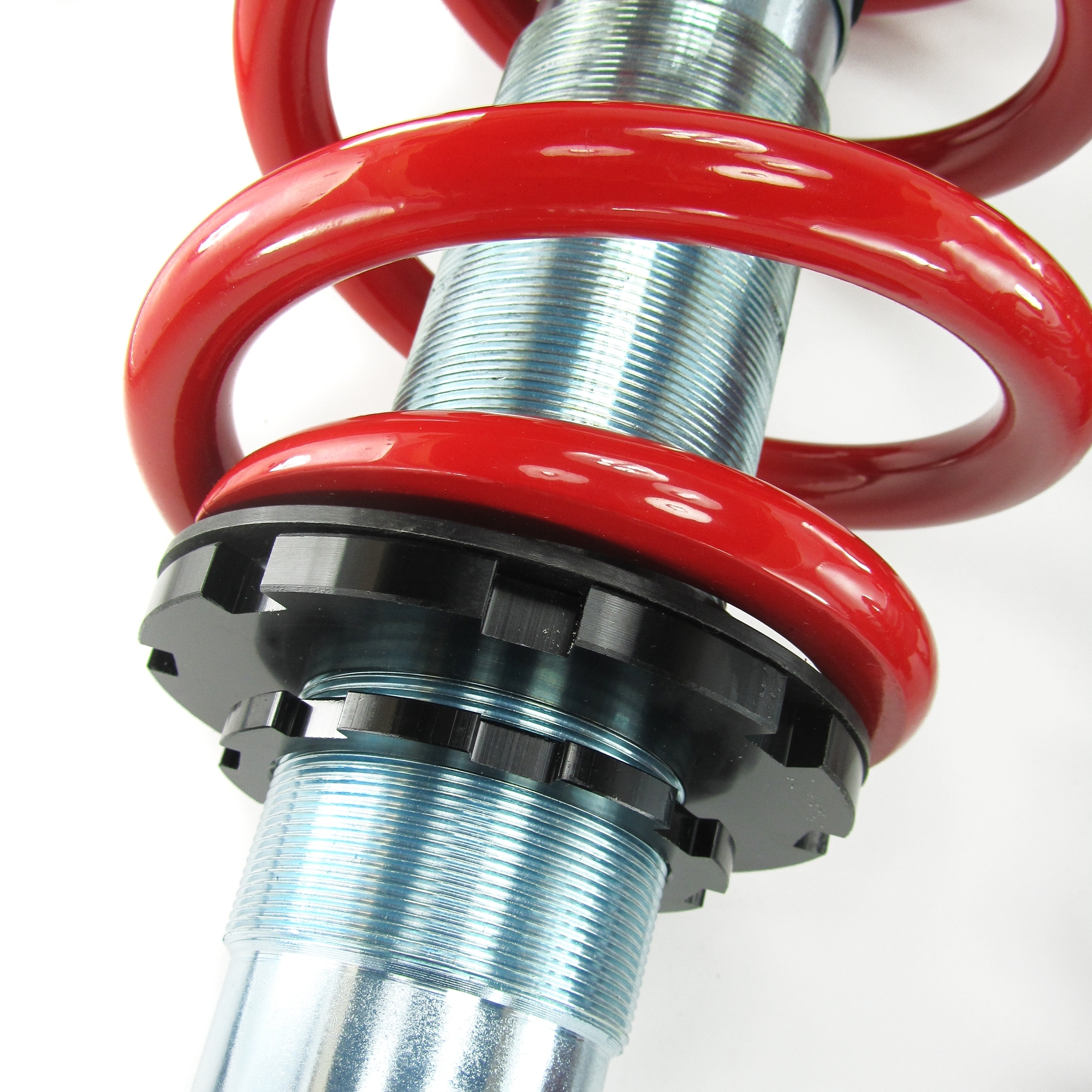

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- A4 B5 Saloon (8D2) 1994-2000
- A4 B5 Avant (8D5) 1996-2001
- Only for front-wheel-drive models
Restrictions
- Four-wheel-drive models
Technical specifications
| Max. front axle load | 1140 kg |
| Max. rear axle load | 1015 kg |
| Lowering range (front axle) | 30-60 mm |
| Lowering range (rear axle) | 40-60 mm |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 310mm |
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
