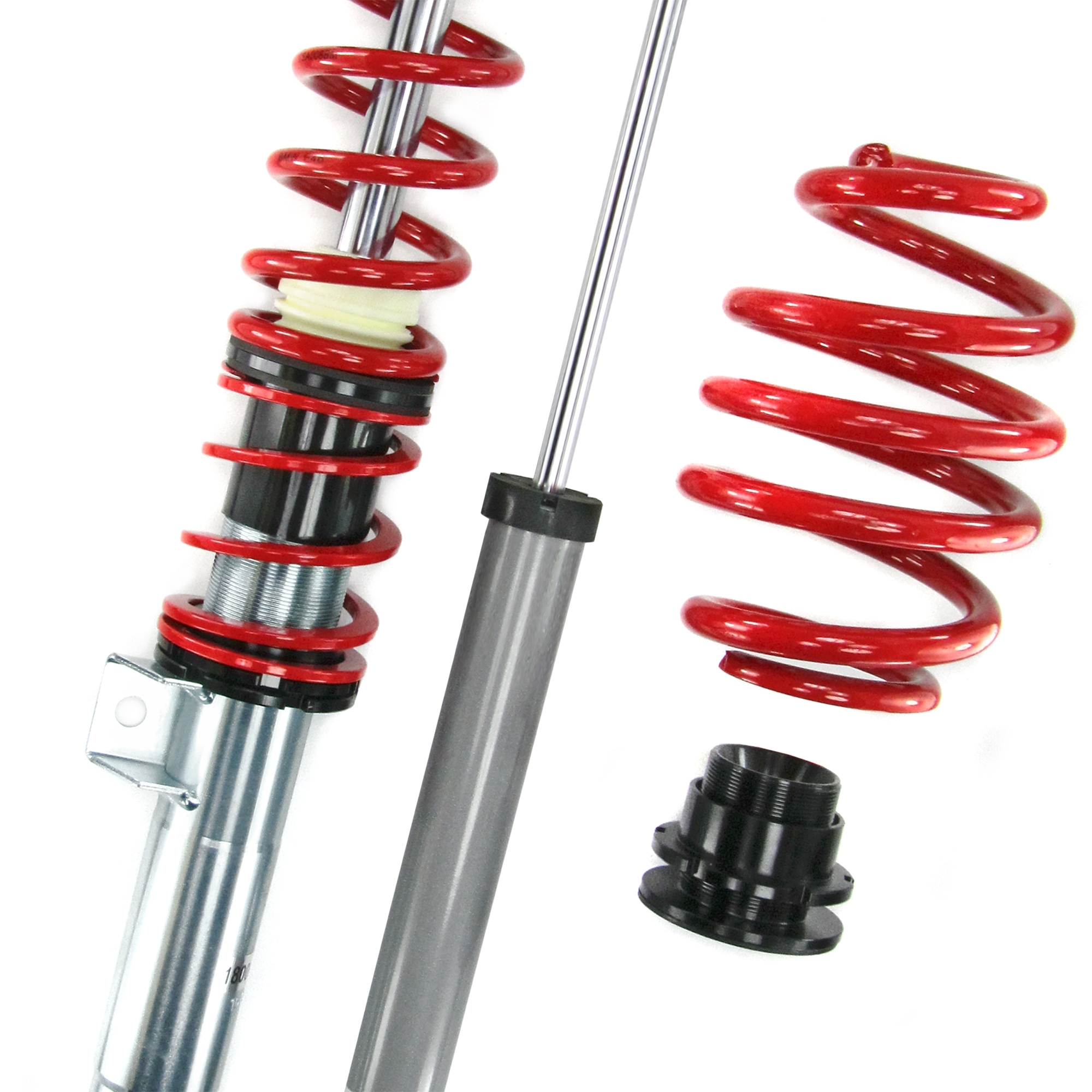

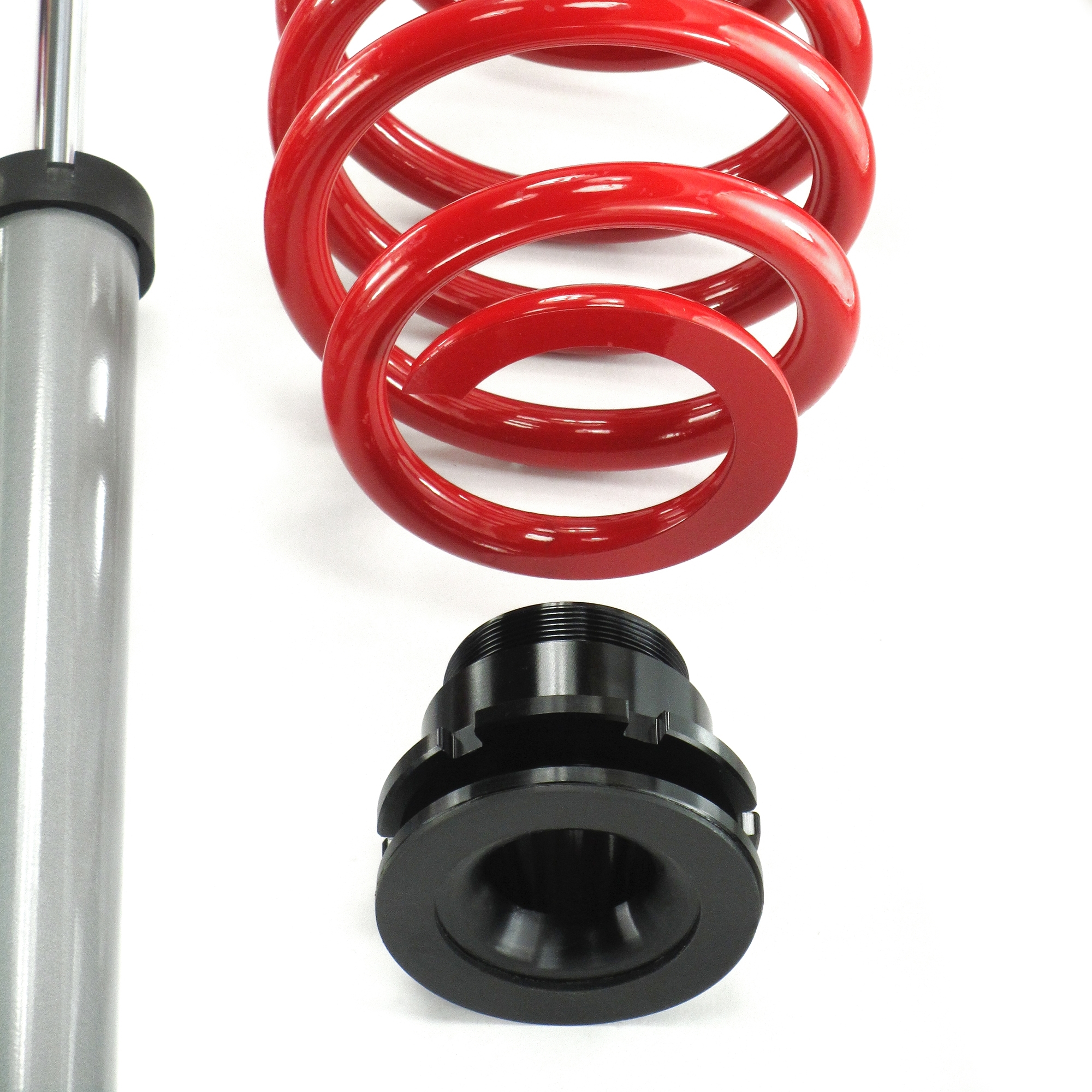

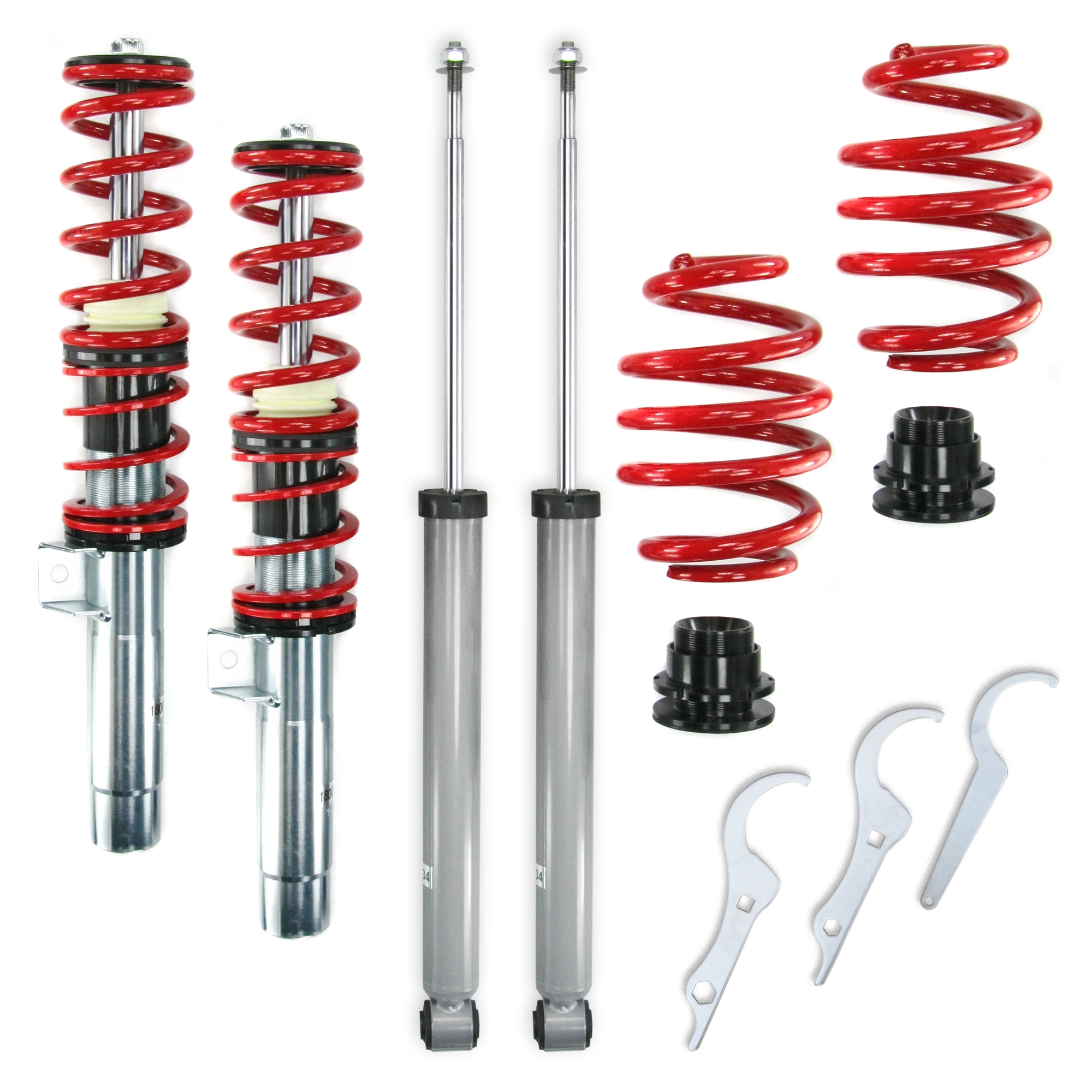

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 3 Series E46 Saloon 1998-2005
- 3 Series E46 Coupe 1999-2006
- 3 Series E46 Touring 1999-2005
- 3 Series E46 Convertible 2000-2007
- 3 Series E46 Compact 2001-2004
- Only for front-wheel-drive models
Restrictions
- Four-wheel-drive models
Technical specifications
| Max. front axle load | 1070 kg |
| Max. rear axle load | 1250 kg |
| Lowering range (front axle) | 40-75 mm |
| Lowering range (rear axle) | 30-60 mm |
| Rear adjustment ring position | on top |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 320mm |
Additional notes
Anti-roll bar end links are required! Sold separately (#740228)
Strut bearings are sold separately:
Front axle (#740507)
Rear axle (#740508)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
