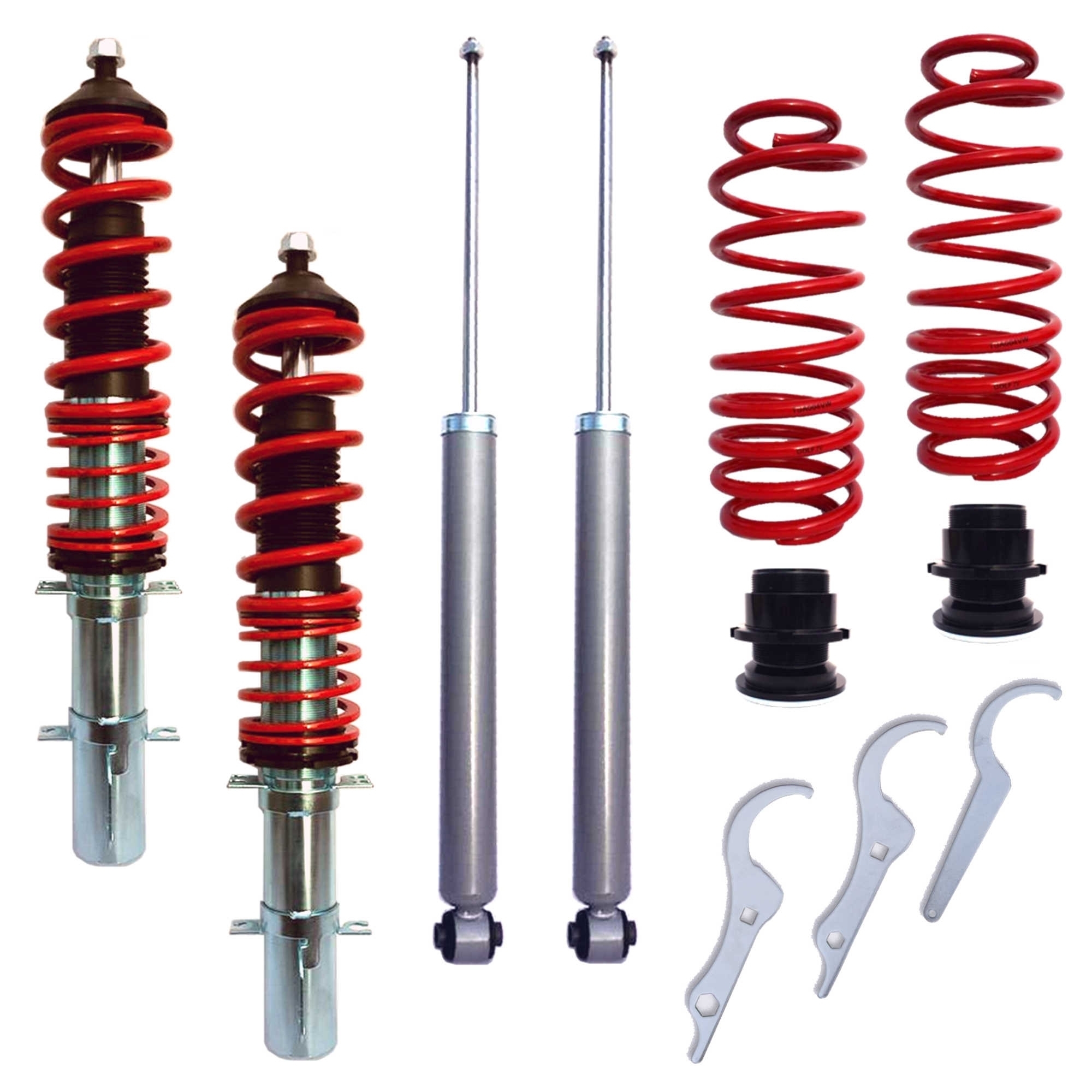

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- Octavia I Saloon (1U2) 1996-2004
- Octavia I Combi (1U5) 2000-2004
- Only for front-wheel-drive models
Restrictions
- Four-wheel-drive models
Technical specifications
| Max. front axle load | 1020 kg |
| Max. rear axle load | 1025 kg |
| Lowering range (front axle) | 25-60 mm |
| Lowering range (rear axle) | 20-40 mm |
| Rear adjustment ring position | below |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 335mm |
Additional notes
Anti-roll bar end links are sold separately (#740227)
Strut bearings are sold separately:
Front axle (#740504)
Rear axle (#740510)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
