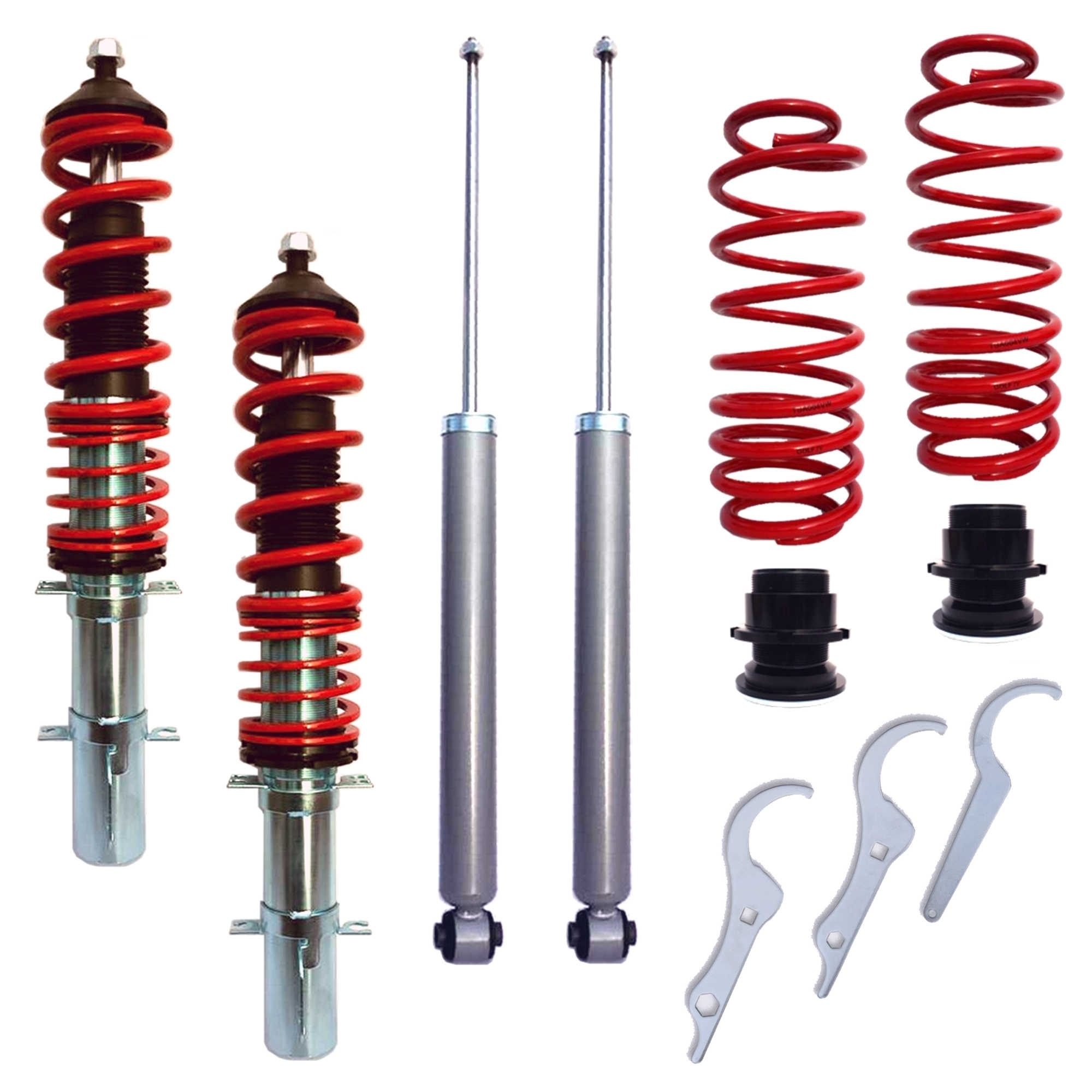

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- New Beetle (9C) 1998-2010
- New Beetle Convertible (1Y) 2003-2010
Restrictions
- Four-wheel-drive models
Technical specifications
| Max. front axle load | 1020 kg |
| Max. rear axle load | 1025 kg |
| Lowering range (front axle) | 35-60 mm |
| Lowering range (rear axle) | 30-60 mm |
| Rear adjustment ring position | below |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 335mm |
Additional notes
Anti-roll bar end links are sold separately (#740227)
Strut bearings are sold separately:
Front axle (#740504)
Rear axle (#740510)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
