Racingline performance module for VAG 2.0 TSI EA888 Gen.4

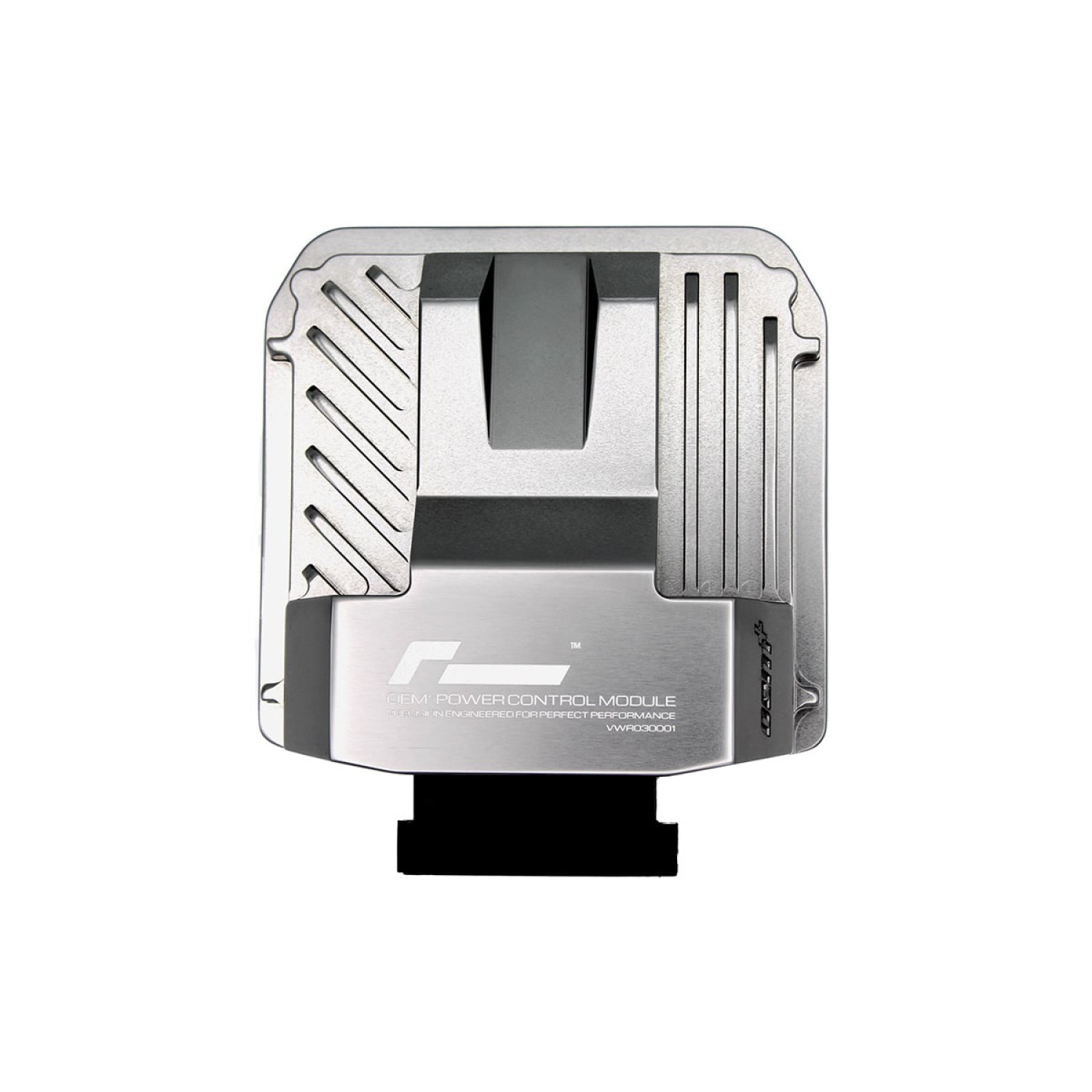

Racingline Power Control Module (PCM) for 2.0 TSI EA888 Gen.4 engines

Racingline Power Control Module (PCM) is a plug-in tuning module developed specifically for the latest 2.0 TSI EA888 Gen.4 engine, which has been fitted to various Volkswagen, Audi, Cupra and Škoda models since 2024. It provides a significant performance increase while retaining the engine’s refined character during everyday driving.

Unlike permanent engine control unit remapping, PCM is a plug-in device that works together with the factory engine management system. It adjusts key sensor signals, thereby increasing boost pressure and fuel delivery without permanently changing the factory software.

Vehicle impact

PCM was developed and tested on real vehicles to improve power and torque without negatively affecting driving characteristics. The result is sharper response and better acceleration, while the vehicle retains the refined feel of a standard car during everyday driving.

• Power: increase from 265 hp to 316 hp
• Torque: increase from 400 Nm to 480 Nm
• More pronounced mid-range torque for easier overtaking
• Improved throttle response while retaining standard refinement
• The module can be removed and the vehicle returned to standard condition

Compatibility

PCM version VWR030003-GAR is intended for vehicles with a 2.0 TSI EA888 Gen.4 engine and Garrett turbocharger in the 265 hp specification. Before installation, check that your vehicle has the correct engine and turbocharger version.

Installation

Installation is relatively straightforward with basic mechanical knowledge. The unit is mounted above the battery on the supplied carbon fibre bracket, while the wiring loom connects directly to the existing sensors on the upper part of the engine. No cutting, wire splicing or ECU programming is required.

Performance data

• Standard power: 265 hp
• Power with PCM: 316 hp
• Standard torque: 400 Nm
• Torque with PCM: 480 Nm
• Engine: 2.0 TSI EA888 Gen.4 with Garrett turbocharger

The stated values are test-based indicative values. The actual result may vary slightly depending on engine condition, fuel quality, supporting modifications and measurement method.

Suitable for: Cupra Formentor I (KM7), Cupra Leon IV (KL1), Cupra Terramar I, Škoda Octavia IV (NX3) / IV (NX5), Škoda Superb IV (NZ3/NZ5), VW Golf VIII (CD1), VW Tayron I (R4), VW Tiguan III (CT1).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
