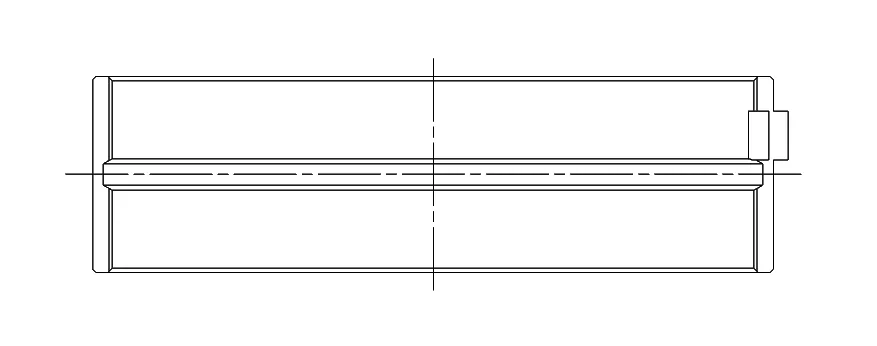

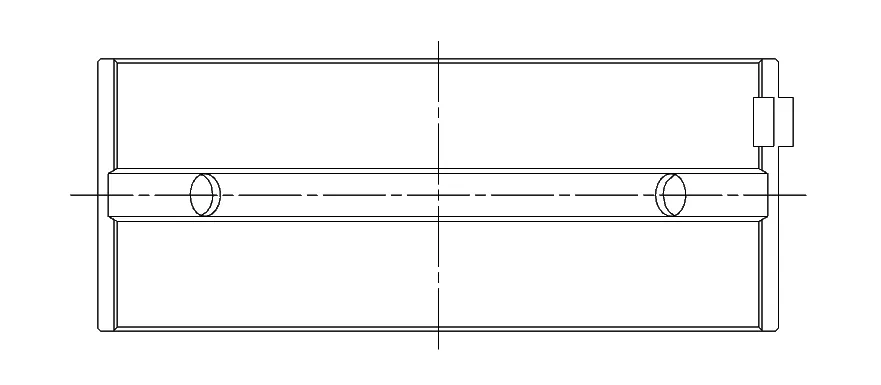

ACL Race main bearings for Alfa Romeo Nord 1.8 / Nord 2.0 / Nord 1.3 …

ACL Race main bearings are trimetal engine bearings designed to withstand higher RPM conditions. Their combination of design, metallurgy and engineering supports consistent clearances in high-performance engine applications.

The set contains ACL Race Series main bearings. Different bearing thicknesses are available according to the required clearance.

• Trimetal construction with a high-strength overlay plate of reduced thickness for improved fatigue properties.
• Increased crush for improved bearing retention in the housing.
• Elimination of flash plating on the back improves heat transfer and maximizes grip between the bearings and their housing.
• Increased eccentricity compensates for bore distortion at high RPM and assists in forming hydrodynamic oil films.
• 3/4 grooves optimize the main bearing load-carrying surface area and oil flow to the conrod bearings.
• Tight, consistent wall tolerances help maintain consistent clearances.

Suitable for: Alfa Romeo 155 I (167), Alfa Romeo 2000 Gtv I (105), Alfa Romeo 75 I (162B), Alfa Romeo 90 I (162), Alfa Romeo Alfetta GT I (116), Alfa Romeo Alfetta I (116), Alfa Romeo Giulia GT I (105), Alfa Romeo Giulia I (105), Alfa Romeo Giulietta I (116), Alfa Romeo Spider I (105).

Engines: Nord 1.8, Nord 2.0, Nord 1.3, Nord 1.6, Twin Spark 1.8, Nord 1.8 Turbo, Nord 1300, Twin Spark 2.0 (AR67101, AR67102, AR67103, AR67105, AR67402, AR00548, AR06100, AR06134, AR06158, AR06166, AR06168, AR06202, AR61101, AR61102, AR61201, AR61202, AR01713, AR00500, AR00504, AR01600, AR01608, AR01623, AR01655, AR01678 …). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.

Sizes

STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
