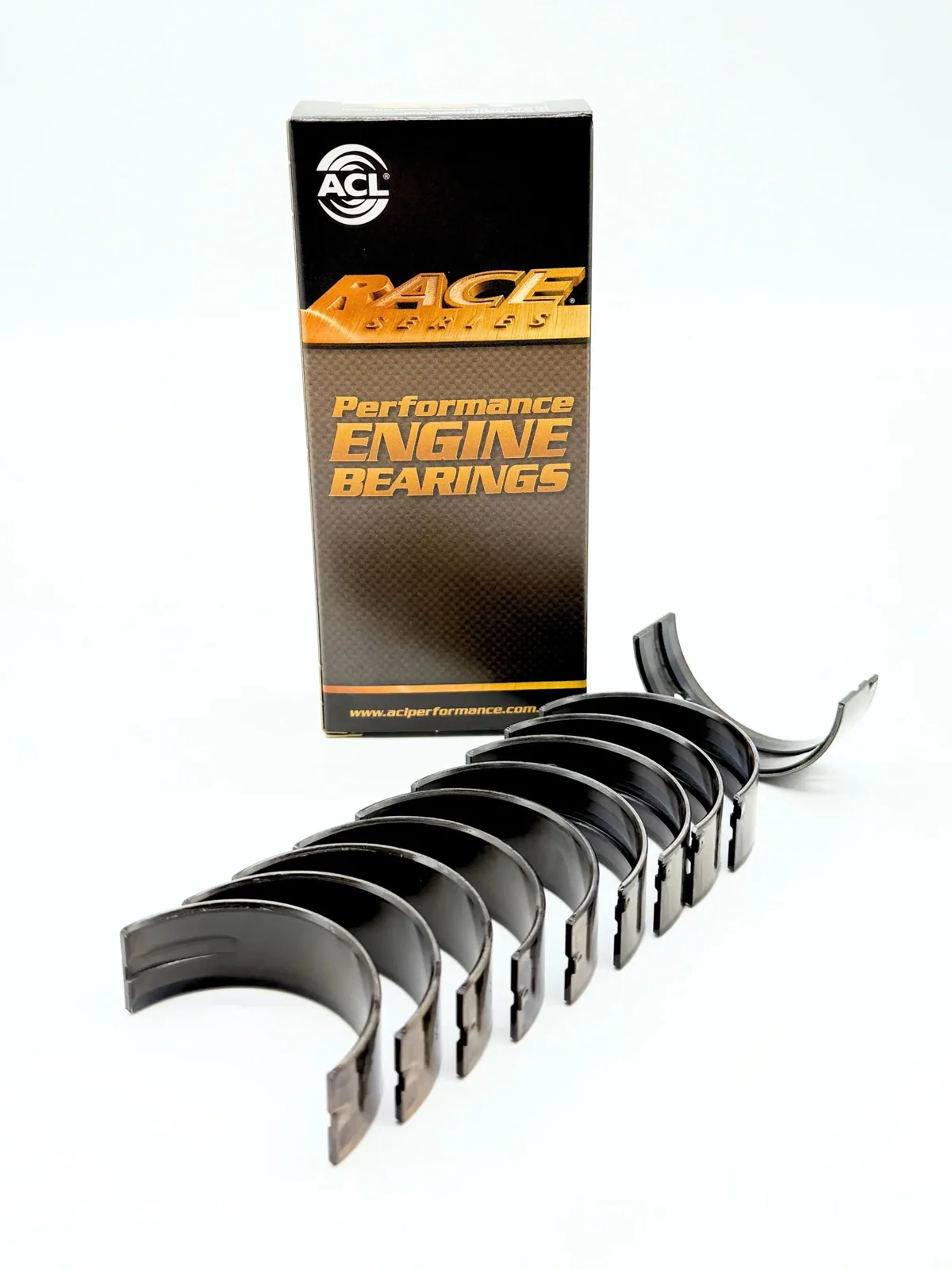

ACL Race Series main bearings are trimetal bearings for engines operating at higher RPM. Their construction combines high strength, tight wall tolerances and properties that support the formation of hydrodynamic oil films.
Increased eccentricity helps compensate for bore distortion at high RPM, while the 3/4 groove optimizes the main bearing load-carrying surface and oil flow to the conrod bearings.
- High-strength overlay plate with reduced thickness for improved fatigue properties
- Increased crush for improved bearing retention in the housing
- Elimination of flash plating on the back for improved heat transfer and grip in the housing
- Increased eccentricity to compensate for bore distortion at high RPM
- 3/4 grooved main bearings to optimize oil flow and load-carrying surface
Suitable for: Honda Accord VII (CL/CN) / VII (CM), Honda Civic IV (EC/ED) / V (EG/EH) / VI (EJ/EK) / VI (MB/MC) / VII (ES/ET) / VII (EU/EP) / VIII (FD), Honda CR V I (RD1/RD3) / II (RD4/RD5) / III (RE) / IV (RM/RE), Honda Crx II (ED/EE) / III (EH/EG), Honda Element I (YH1/YH2), Honda FR V I (BE), Honda Integra COUPE (DC) / II (COUPE/DA) / III (DB) / TYPE (R/DC5), Honda Odyssey II (RA6/RA7/RL1) / III (RB1) / III (RB3/RB4), Honda Stepwgn II (MPV/RF) / III (RG).
Engines: K24A, B16A, B20B, K20A, B18B, B18C, B20Z, K24Z, B18A, B16B (K24A4, K24A8, K24A1, K24A3, B20B3, B20B4, B20Z2, K24Z1, B16A1, B16A2, B16A3, B16A4, B16B, B16A6, K20A3, B18B1, B18B2, B18C1, B18C2, B18C7, B18A1, B18A2, B20B8). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
