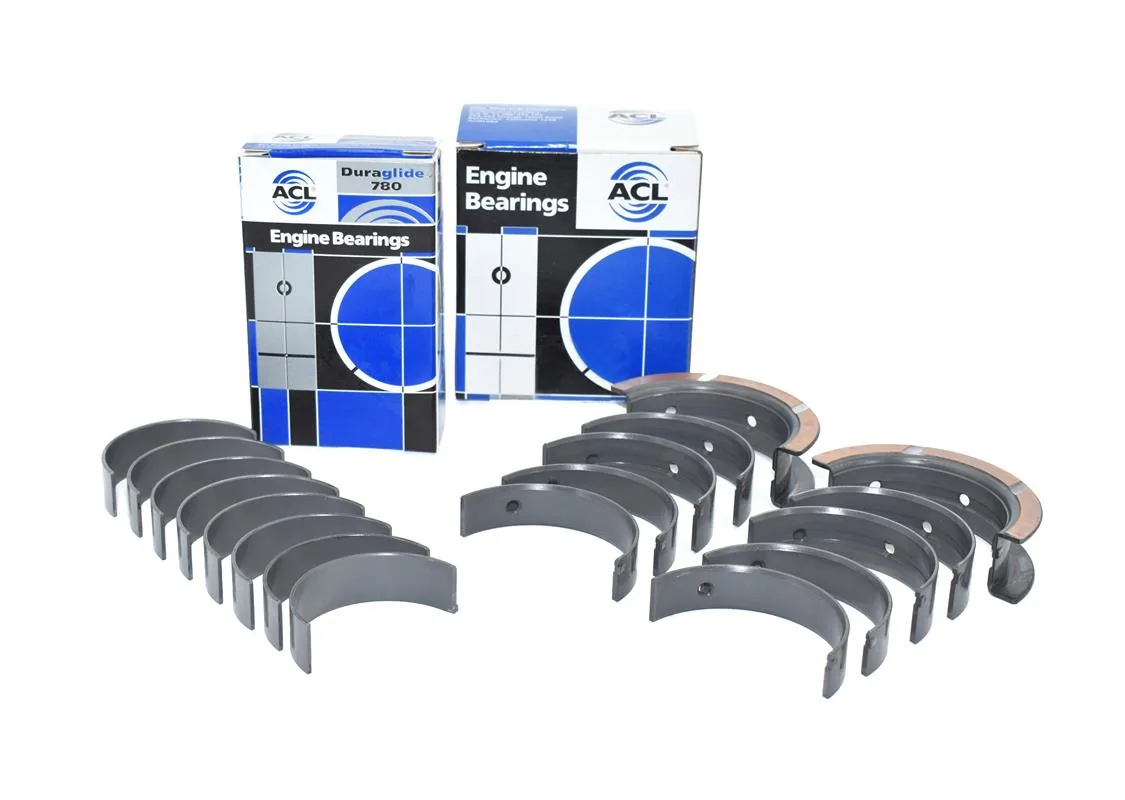

ACL Race main bearings for Mazda SHY

ACL Race main bearings are trimetal engine bearings for applications where stable clearances and resistance at higher RPM are important. They use a high-strength overlay plate with reduced thickness for improved fatigue properties.

Increased eccentricity helps compensate for bore distortion at high RPM and assists in forming a hydrodynamic oil film. The set includes main bearings.

• Trimetal construction with a high-strength overlay plate
• Increased crush for improved bearing retention in the housing
• 3/4 grooved main bearings for optimized load-carrying surface area and oil flow
• Increased eccentricity to assist hydrodynamic oil film formation
• Tight, consistent wall tolerances

Suitable for: Mazda 3 III (BM), Mazda 6 III (GJ), Mazda CX 5 I (KE) / II (KF/KFE).

Engines: SHY (SHY4, SHY6, SHY1, SHY8). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.

Sizes

STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
