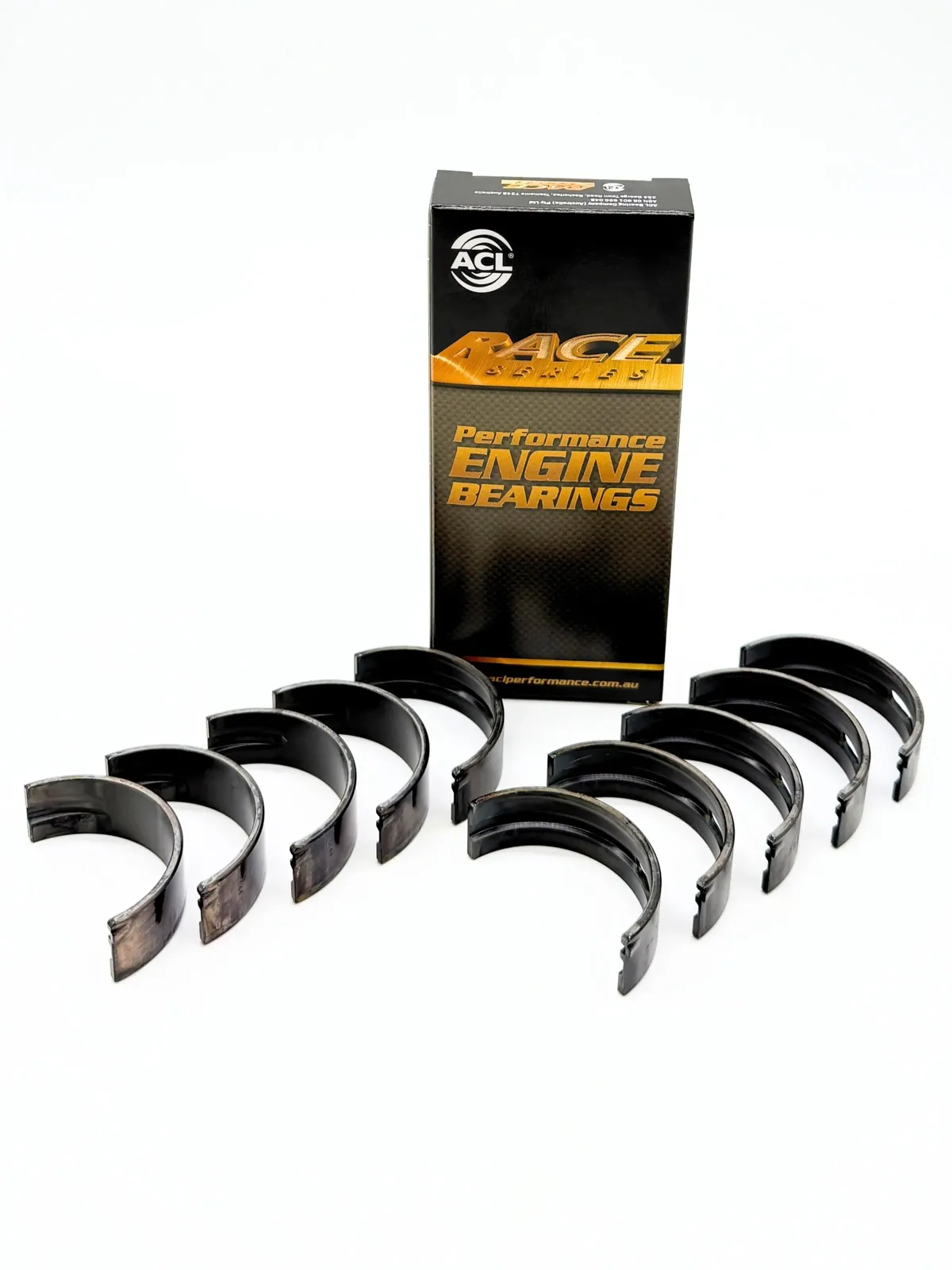

ACL Race main bearings are multilayer trimetal engine bearings designed for higher RPM conditions and demanding engine use. The construction combines a high-strength overlay plate with tight, consistent wall tolerances for consistent clearances.
Increased eccentricity helps compensate for bore distortion at high RPM and assists in forming a hydrodynamic oil film. The set includes main bearings with 0.025 mm extra clearance.
- High-strength overlay plate with reduced thickness
- Increased crush for improved bearing retention in the housing
- Flash plating eliminated on the back for improved heat transfer and grip
- Increased eccentricity to compensate for bore distortion at high RPM
- 3/4 grooved main bearings to optimize load-carrying surface area and oil flow
Suitable for: Audi 100 I (C1) / I (C2) / III (C3) / IV (C4), Audi 80 I (B1) / I (B2) / II (B3) / III (B4), Audi 90 I (B2) / II (B3), Audi A3 I (8L) / II (8P), Audi A4 I (B5) / II (B6/B7), Audi A6 I (C4) / II (C5) / III (C6), Audi Cabriolet I (8G7/B4), Audi Coupe I (81/85) / II (89/8B), Audi S3 I (8L) / II (8P), Audi TT I (8N) / II (8J), Audi Tts I (8N), Ford Galaxy I (WGR), SEAT Alhambra I (7MS), SEAT Altea XL I (5P5/5P8), SEAT Altea I (5P1), SEAT Arosa I (6H1) and 33 more.
Engines: EA827, 1.9 TDI, 1.8T 20V, EA113, EA113 2.0 TFSI, 1.6 Diesel, EA111, 1.9 Diesel, 1.9 D, 1.6 TD, 1.7 SDI, 1.7 D, 1.6 D, 1.9 SDI, EA113 2.0 FSI, 1.9 TD, 2.0 TDI (YM, YV, DS, 4B, NP, PH, RS, SH, DR, JW, ACE, AAD, AAE, ABK, JN, JF, WT, YN, ZV, CR, CY, JK, YK, XX …). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
