ACL Race rod bearings use a trimetal construction for demanding operating conditions and higher engine speeds. The design combines high strength, precise manufacturing and improved bearing retention in the housing.

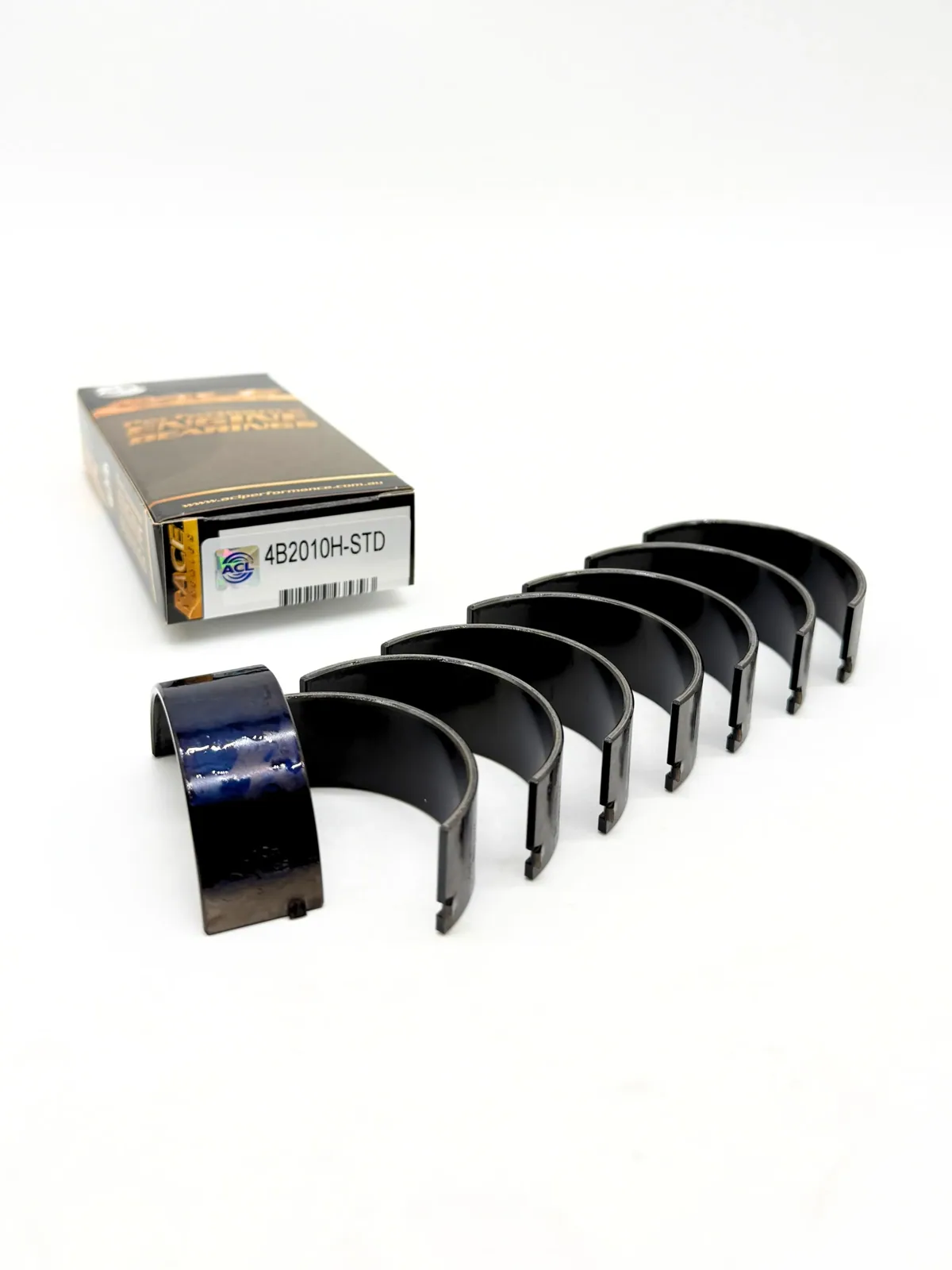

This set is intended for performance engine applications and includes ACL Race Series rod bearings.
- high-strength overlay plate with reduced thickness for improved fatigue properties
- hardened steel backs for better support of the bearing lining and improved retention in the housing
- increased crush for improved bearing retention
- elimination of flash plating on the back for improved heat transfer and grip in the housing
- increased eccentricity to compensate for bore distortion at high rpm and assist in forming hydrodynamic oil films
Suitable for: Saab 9-3 I (YS3D), Saab 9-5 I (YS3E), Saab 9000 I, Saab 900 I / II.
Engines: B235, B202, B234, B204, B205, B206 (B204R, B204L, B204E, B205R, B205E, B205L, B204I, B235R, B234I, B235L, B235E, B202I, B202XI, B202S, B202L, B202XL, B206I, B204S, B234R, B234L, B234E). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
