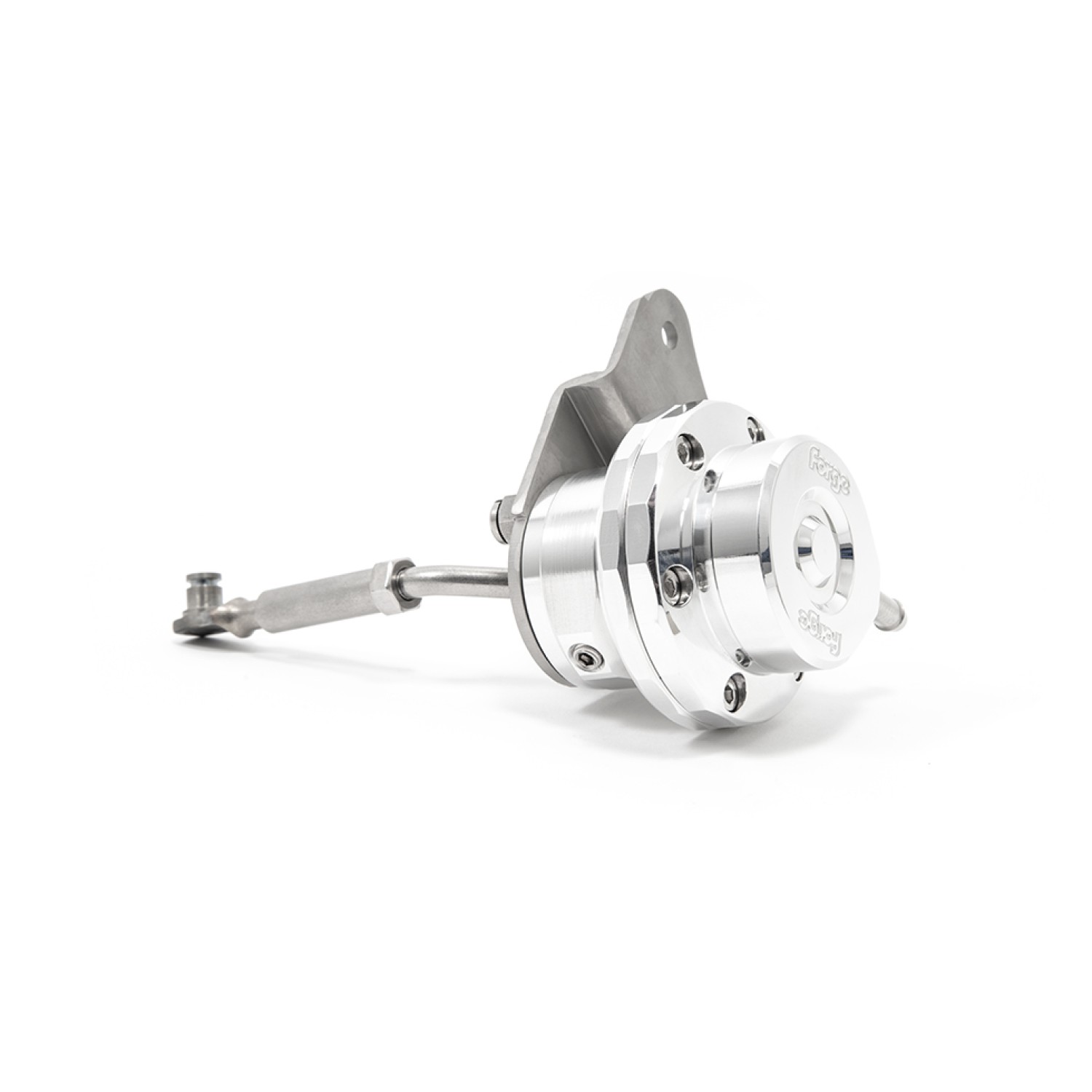

Forge Motorsport adjustable alloy turbocharger actuator for the Subaru Legacy BL/BP with VF45 turbocharger. It enables more precise adjustment and control of the required boost pressure, as well as improved turbocharger response.
- Choice of springs with different pressure ratings according to the vehicle
- Made from 6026-grade aluminium
- Design adapted to the vehicle and turbocharger
- Machined and hand-polished
- Piston or diaphragm operation available for most actuators
- Fluorosilicone diaphragms reinforced with Nomex material
- Laser-cut stainless steel brackets where required
- Adjustment and service kits are available
- Made in England
The actuator is supplied as standard with a spring suitable for standard or slightly higher boost pressure. For modified vehicles, a stronger spring can be fitted on request when higher boost pressure is required.
The diaphragm-sealed interior is the standard configuration, while a piston-sealed interior is also available. The piston version offers comparable performance and requires less maintenance thanks to the wear-resistant piston seal construction.
The actuator is designed to increase or more precisely regulate the boost pressure of the turbocharging system. The actual adjustment depends on the capabilities of the engine management system, whether it is a factory-fitted or aftermarket system.
The pressure values listed for the individual spring colour markings refer only to the mechanical aspect and apply primarily to older turbocharged engines without electronic or electromagnetic control. On modern engines controlled via the ECU or an electromagnetic valve, the target boost pressure does not necessarily correspond one-to-one with the mechanical spring specification. When selecting a spring for a specific vehicle and planned level of modification, consult a qualified engine tuning specialist.
The actuator rods are made from 303-grade stainless steel.
The kit includes:
1 × FMACSUB6 actuator
1 × Forge sticker
If you wish to use the FMPACTUN spring adjustment kit, the Diaphragm Type 2, 049 version must be selected.
Suitable for: Subaru Legacy IV (BL/BP).
