ACL Race main bearings are trimetal engine bearings developed for higher RPM conditions. Their construction combines a high-strength overlay, improved heat transfer and reliable bearing retention in the housing.
Increased eccentricity helps compensate for bore distortion at high RPM and assists in forming a hydrodynamic oil film. The ACL Race Series main bearing set includes 0.025 mm extra clearance.
- High-strength overlay plate with reduced thickness for improved fatigue properties
- Increased crush for improved bearing retention
- Elimination of flash plating on the back for improved heat transfer and housing grip

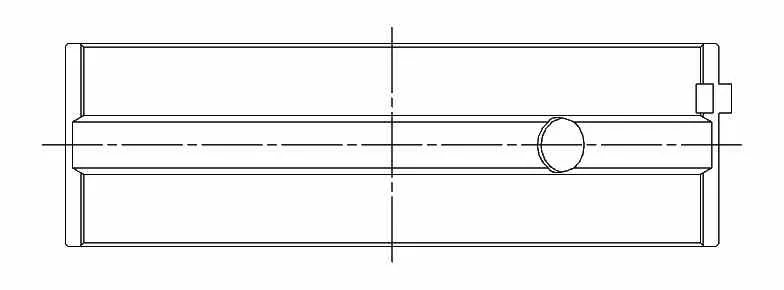

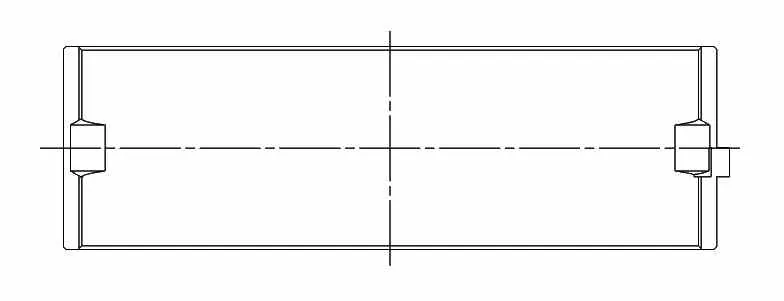

- 3/4 grooved main bearings to optimize load-carrying surface area and oil flow
- Tight, consistent wall tolerances for consistent clearances
Suitable for: Toyota Land Cruiser II (J9) / J100 (HDJ100) / J70 (HZJ7) / J80 (HDJ80).
Engines: 1HZ, 1HD-FTE, 1HD-T, 1HD-FT (1HD-FTE, 1HD-T, 1H-Z, 1HD-FT). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
