ACL Race Series main bearings are trimetal engine bearings designed for high-RPM operating conditions. The set includes ACL Race Series main bearings.
The design uses a high-strength overlay plate, increased crush for improved retention in the housing, and increased eccentricity to compensate for bore distortion and assist in forming hydrodynamic oil films.
- High-strength overlay plate with reduced thickness for improved fatigue properties
- Eliminated flash plating on the back for improved heat transfer and increased grip in the housing

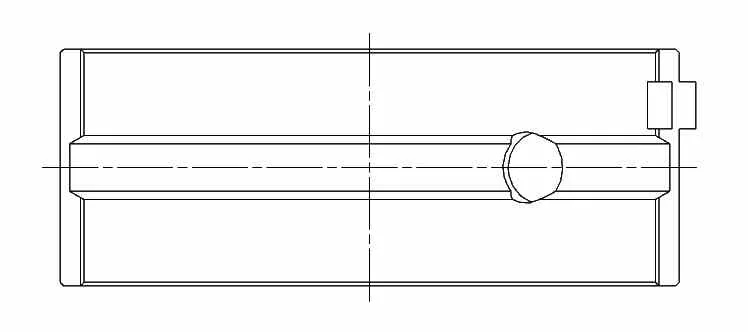

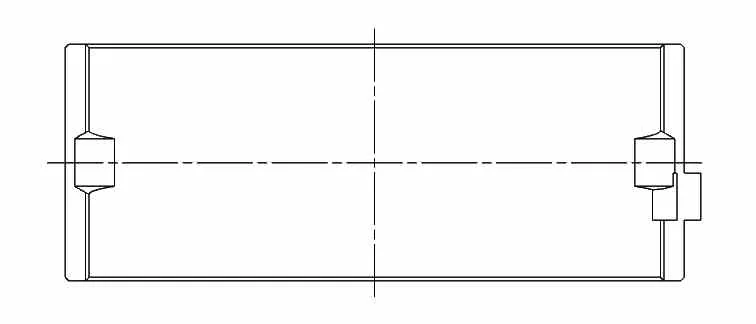

- 3/4-grooved main bearings to optimize bearing load-carrying surface area and oil flow to the conrod bearings
- Tight, consistent wall tolerances to help maintain consistent clearances
- Enlarged ID chamfers on bearing edges where required for large fillet radii on performance crankshafts
Suitable for: Toyota Avensis I (T22), Toyota Caldina GEN (III/T215), Toyota Carina E VI (T19), Toyota Carina IV (T15) / V (T17), Toyota Celica III (A60) / V (T16) / VI (T18) / VIII (T20), Toyota Chaser V (X90), Toyota Corolla II (KE/TE) / IV (TE72) / IX (E12) / V (AE86) / V (E80) / VI (E90) / VII (E10) / VIII (E11), Toyota MR2 I (AW1), Toyota Tercel I (AL1/AL2) / II (L20).
Engines: 4A-FE, 4A-GE, 5A-FE, 4A-F, 7A-FE, 4A, 3A, 2A, 5A-F, 6A-FC, 4A-GZE (7A-FE, 4A-FE, 2A, 3A, 5A-FE, 4A-LC, 4A-F, 5A-F, 4A-GE, 4A-GELC, 4A-C, 4A-GEC, 2A-LC, 6A-FC, 3A-U, 4A-GZE, 3A-C). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
